| Manufacturer | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15AN12NG00DFIXED IND 12NH 500MA 0.14OHM SMD |
71,808 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 500 mA | - | 12 nH | Unshielded | 140mOhm Max | 30 @ 250MHz | 5.5GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
-2,70mm.jpg)
|
LBC3225T1R5MRFIXED IND 1.5UH 1A 60 MOHM SMD |
71,291 | - |
|
Datasheet |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1 A | - | 1.5 µH | Unshielded | 60mOhm | - | 220MHz | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
LQW15AN6N8G00DFIXED IND 6.8NH 700MA 0.09OHM SM |
67,277 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 700 mA | - | 6.8 nH | Unshielded | 90mOhm Max | 25 @ 250MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN8N2G00DFIXED IND 8.2NH 540MA 0.14OHM SM |
63,104 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 540 mA | - | 8.2 nH | Unshielded | 140mOhm Max | 25 @ 250MHz | 5.5GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN2N7B00DFIXED IND 2.7NH 850MA 0.05OHM SM |
59,289 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±0.1nH | 850 mA | - | 2.7 nH | Unshielded | 50mOhm Max | 20 @ 250MHz | 15GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN13NG00DFIXED IND 13NH 430MA 0.21OHM SMD |
48,937 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 430 mA | - | 13 nH | Unshielded | 210mOhm Max | 25 @ 250MHz | 5GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LQW18AN12NG00DFIXED IND 12NH 600MA 0.13OHM SMD |
47,727 | - |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 600 mA | - | 12 nH | Unshielded | 130mOhm Max | 35 @ 250MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AN47NG00DFIXED IND 47NH 380MA 0.29OHM SMD |
46,527 | - |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 380 mA | - | 47 nH | Unshielded | 290mOhm Max | 38 @ 200MHz | 2.6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW15AN47NG00DFIXED IND 47NH 210MA 1.08OHM SMD |
37,837 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 210 mA | - | 47 nH | Unshielded | 1.08Ohm Max | 25 @ 200MHz | 2.9GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
NLCV32T-100K-PFFIXED IND 10UH 450MA 468MOHM SMD |
37,485 | - |
|
Datasheet |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±10% | 450 mA | - | 10 µH | Unshielded | 468mOhm Max | 15 @ 2.52MHz | 30MHz | - | Surface Mount | -40°C ~ 105°C | - | 2.52 MHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
LQW15AN27NG00DFIXED IND 27NH 280MA 0.52OHM SMD |
20,086 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±2% | 280 mA | - | 27 nH | Unshielded | 520mOhm Max | 25 @ 250MHz | 3.5GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N9B00DFIXED IND 3.9NH 750MA 0.07OHM SM |
19,425 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±0.1nH | 750 mA | - | 3.9 nH | Unshielded | 70mOhm Max | 25 @ 250MHz | 10GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LQP03HQ2N0B02DFIXED IND 2NH 600MA 120MOHM SMD |
229,262 | - |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.1nH | 600 mA | - | 2 nH | Unshielded | 120mOhm Max | 20 @ 500MHz | 9GHz | - | Surface Mount | -55°C ~ 125°C | - | 500 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
-BR-Series.jpg)
|
BRL3225T1R0MFIXED IND 1UH 2.2A 51.6 MOHM SMD |
222,491 | - |
|
Datasheet |
BR, L Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.2 A | 2.4A | 1 µH | Unshielded | 51.6mOhm Max | - | 220MHz | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LBC3225T100KRFIXED IND 10UH 540MA 133MOHM SMD |
151,232 | - |
|
Datasheet |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 540 mA | - | 10 µH | Unshielded | 133mOhm | - | 23MHz | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|

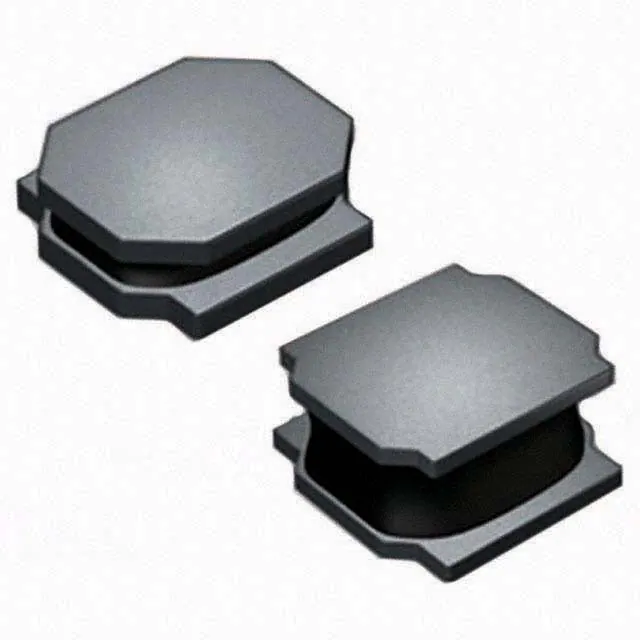

NRS4018T6R8MDGJFIXED IND 6.8UH 1.45A 117.6 MOHM |
136,675 | - |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.45 A | 1.6A | 6.8 µH | Shielded | 117.6mOhm Max | - | 30MHz | - | Surface Mount | -25°C ~ 120°C | - | 100 kHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQW15AN5N6C10DFIXED IND 5.6NH 800MA 0.051OHM |
77,846 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±0.2nH | 800 mA | - | 5.6 nH | Unshielded | 51mOhm Max | 30 @ 250MHz | 8GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQP03HQ4N7H02DFIXED IND 4.7NH 400MA 250MOHM SM |
71,105 | - |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±3% | 400 mA | - | 4.7 nH | Unshielded | 250mOhm Max | 20 @ 500MHz | 7GHz | - | Surface Mount | -55°C ~ 125°C | - | 500 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQW15AN2N2C10DFIXED IND 2.2NH 1A 0.027OHM SMD |
51,832 | - |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | ±0.2nH | 1 A | - | 2.2 nH | Unshielded | 27mOhm Max | 25 @ 250MHz | 14GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQP03HQ2N6B02DFIXED IND 2.6NH 600MA 120MOHM SM |
24,135 | - |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.1nH | 600 mA | - | 2.6 nH | Unshielded | 120mOhm Max | 20 @ 500MHz | 9GHz | - | Surface Mount | -55°C ~ 125°C | - | 500 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
