| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
160-470MSFIXED IND 47NH 1.22A 85 MOHM SMD |
3,023 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Phenolic | ±20% | 1.22 A | - | 47 nH | Unshielded | 85mOhm Max | 48 @ 100MHz | 850MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-560MSFIXED IND 56NH 1.195A 88MOHM SMD |
4,712 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Phenolic | ±20% | 1.195 A | - | 56 nH | Unshielded | 88mOhm Max | 48 @ 100MHz | 800MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-680MSFIXED IND 68NH 1.165A 93MOHM SMD |
1,490 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Phenolic | ±20% | 1.165 A | - | 68 nH | Unshielded | 93mOhm Max | 48 @ 100MHz | 750MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-820MSFIXED IND 82NH 1.15A 95 MOHM SMD |
4,314 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Phenolic | ±20% | 1.15 A | - | 82 nH | Unshielded | 95mOhm Max | 48 @ 100MHz | 700MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-101KSFIXED IND 100NH 1.295A 75MOHM SM |
4,102 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 1.295 A | - | 100 nH | Unshielded | 75mOhm Max | 50 @ 25MHz | 600MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-121KSFIXED IND 120NH 1.295A 75MOHM SM |
2,569 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 1.295 A | - | 120 nH | Unshielded | 75mOhm Max | 50 @ 25MHz | 550MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-151KSFIXED IND 150NH 1.22A 85MOHM SMD |
3,540 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 1.22 A | - | 150 nH | Unshielded | 85mOhm Max | 50 @ 25MHz | 420MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-181KSFIXED IND 180NH 1.125A 100 MOHM |
4,993 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 1.125 A | - | 180 nH | Unshielded | 100mOhm Max | 50 @ 25MHz | 390MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-221KSFIXED IND 220NH 1.07A 110MOHM SM |
1,346 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 1.07 A | - | 220 nH | Unshielded | 110mOhm Max | 50 @ 25MHz | 340MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|

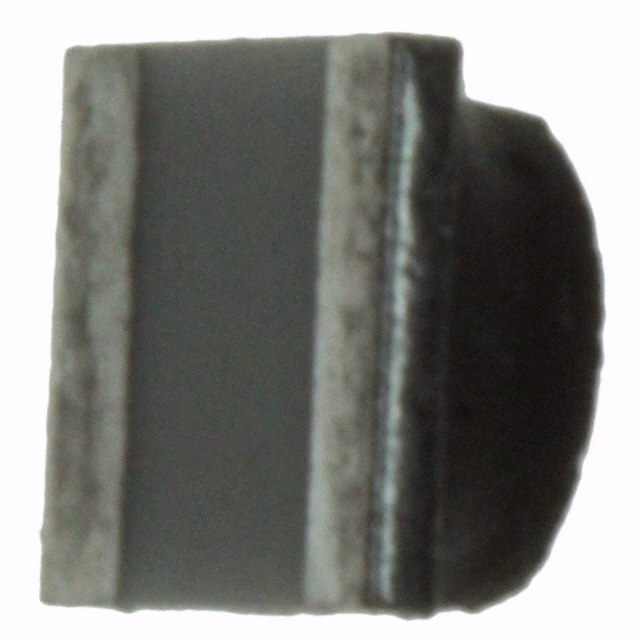

160-271KSFIXED IND 270NH 1.025A 120 MOHM |
2,750 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 1.025 A | - | 270 nH | Unshielded | 120mOhm Max | 50 @ 25MHz | 290MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-301KSFIXED IND 300NH 985MA 130MOHM SM |
4,715 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 985 mA | - | 300 nH | Unshielded | 130mOhm Max | 50 @ 25MHz | 250MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-331KSFIXED IND 330NH 950MA 140MOHM SM |
2,325 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 950 mA | - | 330 nH | Unshielded | 140mOhm Max | 50 @ 25MHz | 230MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-361KSFIXED IND 360NH 915MA 150MOHM SM |
4,479 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 915 mA | - | 360 nH | Unshielded | 150mOhm Max | 50 @ 25MHz | 220MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-391KSFIXED IND 390NH 890MA 160MOHM SM |
2,423 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 890 mA | - | 390 nH | Unshielded | 160mOhm Max | 50 @ 25MHz | 210MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-421KSFIXED IND 430NH 860MA 170MOHM SM |
1,676 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 860 mA | - | 430 nH | Unshielded | 170mOhm Max | 50 @ 25MHz | 200MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|

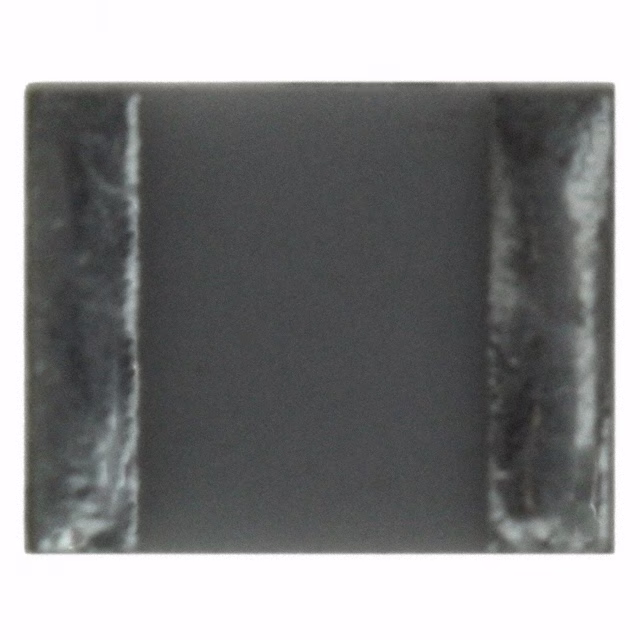

160-471KSFIXED IND 470NH 835MA 180MOHM SM |
4,111 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 835 mA | - | 470 nH | Unshielded | 180mOhm Max | 50 @ 25MHz | 190MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-561KSFIXED IND 560NH 795MA 200MOHM SM |
2,530 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 795 mA | - | 560 nH | Unshielded | 200mOhm Max | 50 @ 25MHz | 180MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-681KSFIXED IND 680NH 740MA 230MOHM SM |
3,316 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 740 mA | - | 680 nH | Unshielded | 230mOhm Max | 50 @ 25MHz | 170MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-821KSFIXED IND 820NH 695MA 260MOHM SM |
3,991 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±10% | 695 mA | - | 820 nH | Unshielded | 260mOhm Max | 50 @ 25MHz | 150MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-102JSFIXED IND 1UH 610MA 340 MOHM SMD |
1,007 |
|
Datasheet |
160 | Nonstandard | Bulk | Active | - | Iron | ±5% | 610 mA | - | 1 µH | Unshielded | 340mOhm Max | 50 @ 25MHz | 140MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
