| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4379R-824JSFIXED IND 820UH 53MA 17 OHM SMD |
2,036 |
|
Datasheet |
4379R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 53 mA | - | 820 µH | Shielded | 17Ohm Max | 95 @ 790kHz | 2.1MHz | - | Surface Mount | -55°C ~ 125°C | - | 790 kHz | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
|
4379R-825JSFIXED IND 8.2MH 22MA 100 OHM SMD |
1,304 |
|
Datasheet |
4379R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 22 mA | - | 8.2 mH | Shielded | 100Ohm Max | 75 @ 250kHz | 700kHz | - | Surface Mount | -55°C ~ 125°C | - | 250 kHz | - | 0.163" L x 0.133" W (4.14mm x 3.38mm) | 0.140" (3.56mm) |
|
ER1025-72KRFIXED IND 150UH 61MA 15 OHM TH |
3,411 |
|
Datasheet |
Military, MIL-PRF-39010/10, ER1025 | Axial | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 61 mA | - | 150 µH | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | Through Hole | -55°C ~ 105°C | - | 790 kHz | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-76KRFIXED IND 220UH 52MA 21 OHM TH |
4,143 |
|
Datasheet |
Military, MIL-PRF-39010/10, ER1025 | Axial | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 52 mA | - | 220 µH | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | Through Hole | -55°C ~ 105°C | - | 790 kHz | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-80KRFIXED IND 330UH 45MA 28 OHM TH |
1,483 |
|
Datasheet |
Military, MIL-PRF-39010/10, ER1025 | Axial | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 45 mA | - | 330 µH | Unshielded | 28Ohm Max | 30 @ 790kHz | 7MHz | - | Through Hole | -55°C ~ 105°C | - | 790 kHz | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
1539M24FIXED IND 2.5MH 2.2A 499 MOHM TH |
1,985 |
|
Datasheet |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.2 A | - | 2.5 mH | Unshielded | 499mOhm Max | - | - | - | Through Hole | - | - | 1 kHz | - | 1.500" Dia (38.10mm) | 1.110" (28.19mm) |
|

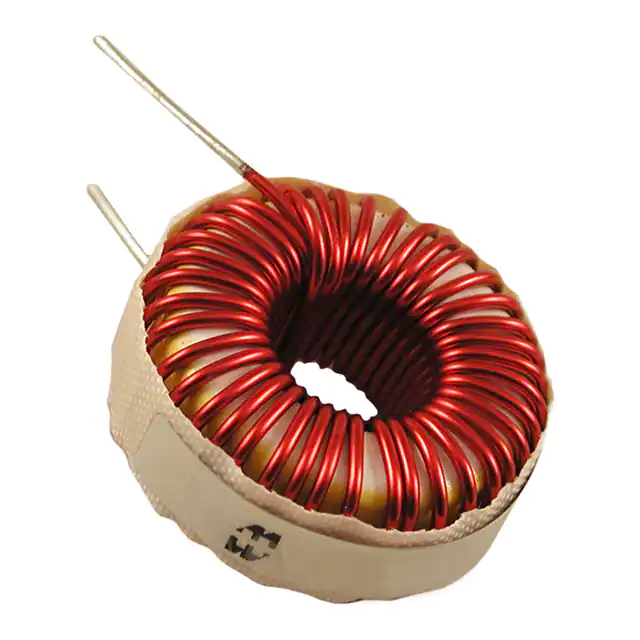

1540M25FIXED IND 8MH 1A 3.34 OHM TH |
4,476 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | ±15% | 1 A | - | 8 mH | Unshielded | 3.34Ohm Max | - | - | - | Through Hole | - | - | - | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - |
|
|
CPEX3231L-450MCTHT HIGH CURRENT POWER INDUCTOR |
3,428 |
|
Datasheet |
CPEX3231L | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | ±20% | 30 A | 34A | 45 µH | Shielded | 3.73mOhm Max | - | - | AEC-Q200 | Through Hole | -55°C ~ 150°C | Low Loss, Soft Saturation | 100 kHz | Vertical, 2 PC Pin | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) | |
|
|
GT20-502-7VERTICAL MOUNT TOROIDAL CHOKE |
2,714 |
|
Datasheet |
GT20 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | - | 14A | 50 µH | Unshielded | 13mOhm | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | Radial, Vertical (Open) | 1.500" Dia x 0.650" L (38.10mm x 16.51mm) | - |
|
|
PFC183209B-471KPFC CHOKE 470.0UH 18.3A 68.0 M |
1,328 |
|
Datasheet |
PFC183209B | Vertical, 4 PC Pin | Bulk | Active | Toroidal | Alloy Powder | ±20% | 9.4 A | 9.5A | 470 µH | Unshielded | 68mOhm Max | - | - | - | Through Hole | -55°C ~ 130°C | - | 100 kHz | - | 1.811" L x 1.063" W (46.00mm x 27.00mm) | 2.067" (52.50mm) |
|
|
C750FL2220C6BROADBAND CONICAL INDUCTOR |
2,283 |
|
Datasheet |
C750FL | Radial, Horizontal Cylinder | Bulk | Active | - | Iron Powder | - | 8.1 A | - | 2.5 µH | Unshielded | 20mOhm Max | 50 @ 10MHz | - | - | Through Hole | -55°C ~ 125°C | - | 10 MHz | Radial | 0.370" Dia x 0.750" L (9.40mm x 19.05mm) | - |
|
|
C750FL5328G6BROADBAND CONICAL INDUCTOR |
2,275 |
|
Datasheet |
C750FL | Radial, Horizontal Cylinder | Bulk | Active | - | Iron Powder | - | 2.2 A | - | 16 µH | Unshielded | 265mOhm Max | 60 @ 10MHz | - | - | Through Hole | -55°C ~ 125°C | - | 10 MHz | Radial | 0.370" Dia x 0.750" L (9.40mm x 19.05mm) | - |
|
|
C225SM4338G6BROADBAND CONICAL SMT INDUCTOR |
3,527 |
|
Datasheet |
C225SM | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | - | 428 mA | - | 1.3 µH | Unshielded | 470mOhm | - | - | - | Surface Mount | -55°C ~ 125°C | - | 10 MHz | - | 0.250" L x 0.144" W (6.35mm x 3.65mm) | 0.250" (6.35mm) |
|
|
2534R-50JFIXED IND 12MH 41MA 100 OHM TH |
1,809 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | ±5% | 41 mA | - | 12 mH | Unshielded | 100Ohm Max | 40 @ 79kHz | 410kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-52JFIXED IND 15MH 40MA 105 OHM TH |
1,464 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | ±5% | 40 mA | - | 15 mH | Unshielded | 105Ohm Max | 45 @ 79kHz | 320kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-54JFIXED IND 18MH 37MA 120 OHM TH |
4,895 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | ±5% | 37 mA | - | 18 mH | Unshielded | 120Ohm Max | 45 @ 79kHz | 300kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-56JFIXED IND 22MH 34MA 145 OHM TH |
3,082 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | ±5% | 34 mA | - | 22 mH | Unshielded | 145Ohm Max | 45 @ 79kHz | 250kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-58JFIXED IND 27MH 29MA 195 OHM TH |
3,726 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | ±5% | 29 mA | - | 27 mH | Unshielded | 195Ohm Max | 45 @ 79kHz | 240kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-60JFIXED IND 33MH 26MA 250 OHM TH |
4,386 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | ±5% | 26 mA | - | 33 mH | Unshielded | 250Ohm Max | 45 @ 79kHz | 210kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-62JFIXED IND 39MH 23MA 295 OHM TH |
1,752 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | ±5% | 23 mA | - | 39 mH | Unshielded | 295Ohm Max | 40 @ 79kHz | 200kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
