| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

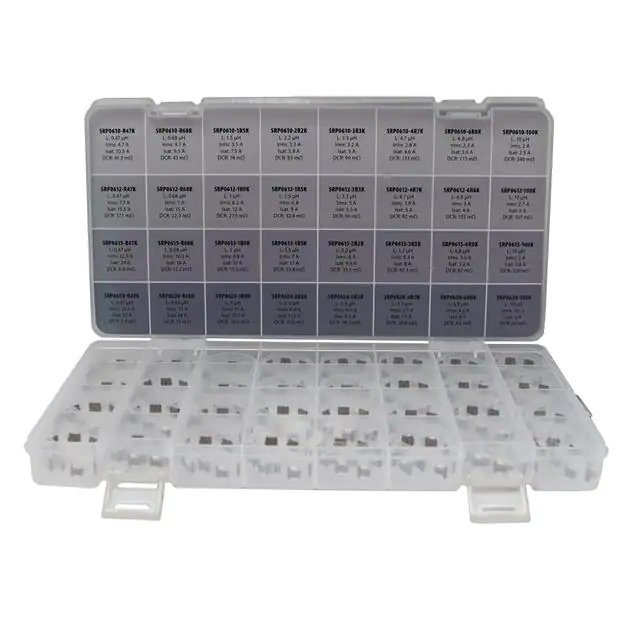

SRP06-LABSRP0610,0612,0615,0620 SERIES DE |
1,611 |
|
Datasheet |
- | - | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
121AT2503HCHORIZONTAL TOROIDAL POWER CHOKE |
4,373 |
|
Datasheet |
ATHC | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±10% | 2.07 A | 3.2A | 250 µH | Shielded | 160mOhm Max | - | 900kHz | - | Through Hole | -55°C ~ 130°C | - | 1 kHz | Radial | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
121AT1003HCHORIZONTAL TOROIDAL POWER CHOKE |
4,033 |
|
Datasheet |
ATHC | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±10% | 3.24 A | 5.2A | 100 µH | Shielded | 65mOhm Max | - | 1.5MHz | - | Through Hole | -55°C ~ 130°C | - | 1 kHz | Radial | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
121AT1002HCHORIZONTAL TOROIDAL POWER CHOKE |
2,047 |
|
Datasheet |
ATHC | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±10% | 8.27 A | 14A | 10 µH | Shielded | 10mOhm Max | - | 10MHz | - | Through Hole | -55°C ~ 130°C | - | 1 kHz | Radial | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
894AT7502HHORIZONTAL TOROIDAL INDUCTOR |
1,136 |
|
Datasheet |
AT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | ±10% | 8 A | 12A | 75 µH | Unshielded | 23mOhm Max | - | 3MHz | - | Through Hole | -55°C ~ 130°C | - | 1 kHz | Radial | 1.300" Dia (33.02mm) | 0.650" (16.51mm) |
|
|
121AT1503HCHORIZONTAL TOROIDAL POWER CHOKE |
2,541 |
|
Datasheet |
ATHC | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±10% | 2.68 A | 4.8A | 150 µH | Shielded | 95mOhm Max | - | 1MHz | - | Through Hole | -55°C ~ 130°C | - | 1 kHz | Radial | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
894AT7502VVERTICAL TOROIDAL INDUCTOR |
4,294 |
|
Datasheet |
AT | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | ±10% | 8 A | 12A | 75 µH | Unshielded | 23mOhm Max | - | 3MHz | - | Through Hole | -55°C ~ 130°C | - | 1 kHz | Radial | 1.300" Dia x 0.650" W (33.02mm x 16.51mm) | - |
|
|
059AT7502VCVERT TOROIDAL CHOKE |
4,851 |
|
Datasheet |
ATVC | Radial, Vertical | Bulk | Active | Toroidal | - | ±10% | 5.9 A | 9.1A | 75 µH | Shielded | 30mOhm Max | - | 2.5MHz | - | Through Hole | -55°C ~ 130°C | - | 1 kHz | Radial | 1.210" L x 0.685" W (30.73mm x 17.40mm) | 0.312" (7.92mm) |
|
|
059AT5002VCVERT TOROIDAL CHOKE |
2,372 |
|
Datasheet |
ATVC | Radial, Vertical | Bulk | Active | Toroidal | - | ±10% | 6.9 A | 12A | 50 µH | Shielded | 22mOhm Max | - | 3.5MHz | - | Through Hole | -55°C ~ 130°C | - | 1 kHz | Radial | 1.210" L x 0.685" W (30.73mm x 17.40mm) | 0.312" (7.92mm) |
|
|
IHD1BH680L08INDUCT WW SNGL COIL MISC |
4,306 |
|
Datasheet |
IHD | Axial | Bulk | Active | - | Ferrite | ±15% | 1.3 A | 880mA | 68 µH | Unshielded | 145mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | Axial | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
PFC199224B-201KPFC CHOKE 200.0UH 33.6A 23.0 M |
1,758 |
|
Datasheet |
PFC199224B | Vertical, 4 PC Pin | Bulk | Active | Toroidal | Alloy Powder | ±10% | 16.4 A | 17.5A | 200 µH | Unshielded | 23mOhm Max | - | - | - | Through Hole | -55°C ~ 130°C | - | 100 kHz | - | 1.988" L x 1.063" W (50.50mm x 27.00mm) | 2.244" (57.00mm) |
|
|
3090-101FFIXED IND 100NH 970MA 80MOHM SMD |
1,417 |
|
Datasheet |
3090 | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | ±1% | 970 mA | - | 100 nH | Unshielded | 80mOhm Max | 32 @ 25MHz | 510MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.050" (1.27mm) |
|
|
3090-102FFIXED IND 1UH 330MA 700 MOHM SMD |
1,168 |
|
Datasheet |
3090 | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | ±1% | 330 mA | - | 1 µH | Unshielded | 700mOhm Max | 24 @ 25MHz | 100MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.050" (1.27mm) |
|
|
3090-103FFIXED IND 10UH 120MA 5 OHM SMD |
4,589 |
|
Datasheet |
3090 | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | ±1% | 120 mA | - | 10 µH | Unshielded | 5Ohm Max | 20 @ 7.9MHz | 40MHz | - | Surface Mount | -55°C ~ 125°C | - | 7.9 MHz | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.050" (1.27mm) |
|
|
3090-121FFIXED IND 120NH 870MA 100MOHM SM |
2,442 |
|
Datasheet |
3090 | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | ±1% | 870 mA | - | 120 nH | Unshielded | 100mOhm Max | 32 @ 25MHz | 410MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.050" (1.27mm) |
|
|
3090-122FFIXED IND 1.2UH 265MA 1.1OHM SMD |
1,443 |
|
Datasheet |
3090 | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | ±1% | 265 mA | - | 1.2 µH | Unshielded | 1.1Ohm Max | 24 @ 7.9MHz | 95MHz | - | Surface Mount | -55°C ~ 125°C | - | 7.9 MHz | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.050" (1.27mm) |
|
|
3090-151FFIXED IND 150NH 795MA 120MOHM SM |
2,887 |
|
Datasheet |
3090 | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | ±1% | 795 mA | - | 150 nH | Unshielded | 120mOhm Max | 32 @ 25MHz | 370MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.050" (1.27mm) |
|
|
3090-152FFIXED IND 1.5UH 250MA 1.2OHM SMD |
1,110 |
|
Datasheet |
3090 | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | ±1% | 250 mA | - | 1.5 µH | Unshielded | 1.2Ohm Max | 24 @ 7.9MHz | 90MHz | - | Surface Mount | -55°C ~ 125°C | - | 7.9 MHz | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.050" (1.27mm) |
|
|
3090-181FFIXED IND 180NH 765MA 140MOHM SM |
3,888 |
|
Datasheet |
3090 | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | ±1% | 765 mA | - | 180 nH | Unshielded | 140mOhm Max | 32 @ 25MHz | 330MHz | - | Surface Mount | -55°C ~ 125°C | - | 25 MHz | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.050" (1.27mm) |
|
|
3090-182FFIXED IND 1.8UH 245MA 1.25OHM SM |
3,109 |
|
Datasheet |
3090 | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | ±1% | 245 mA | - | 1.8 µH | Unshielded | 1.25Ohm Max | 24 @ 7.9MHz | 85MHz | - | Surface Mount | -55°C ~ 125°C | - | 7.9 MHz | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.050" (1.27mm) |
