| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S0603-56NH1CFIXED IND 56NH 600MA 340MOHM SMD |
4,766 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 600 mA | - | 56 nH | Unshielded | 340mOhm Max | 35 @ 200MHz | 1.9GHz | - | Surface Mount | -55°C ~ 125°C | - | 200 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-68NH1CFIXED IND 68NH 600MA 370MOHM SMD |
1,143 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 600 mA | - | 68 nH | Unshielded | 370mOhm Max | 34 @ 200MHz | 1.7GHz | - | Surface Mount | -55°C ~ 125°C | - | 200 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-82NH1CFIXED IND 82NH 400MA 570MOHM SMD |
2,418 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 400 mA | - | 82 nH | Unshielded | 570mOhm Max | 34 @ 150MHz | 1.7GHz | - | Surface Mount | -55°C ~ 125°C | - | 150 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-33NH1CFIXED IND 33NH 600MA 250MOHM SMD |
3,660 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 600 mA | - | 33 nH | Unshielded | 250mOhm Max | 37 @ 250MHz | 2.3GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-39NH1CFIXED IND 39NH 600MA 280MOHM SMD |
2,047 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 600 mA | - | 39 nH | Unshielded | 280mOhm Max | 37 @ 250MHz | 2.2GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-47NH1CFIXED IND 47NH 600MA 310MOHM SMD |
2,256 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 600 mA | - | 47 nH | Unshielded | 310mOhm Max | 35 @ 200MHz | 2GHz | - | Surface Mount | -55°C ~ 125°C | - | 200 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-10NH1CFIXED IND 10NH 700MA 160MOHM SMD |
4,139 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 700 mA | - | 10 nH | Unshielded | 160mOhm Max | 28 @ 250MHz | 4.8GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-15NH1CFIXED IND 15NH 700MA 200MOHM SMD |
4,926 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 700 mA | - | 15 nH | Unshielded | 200mOhm Max | 32 @ 250MHz | 4GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-22NH1CFIXED IND 22NH 700MA 220MOHM SMD |
3,216 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 700 mA | - | 22 nH | Unshielded | 220mOhm Max | 35 @ 250MHz | 3GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-3N3H1CFIXED IND 3.3NH 700MA 100MOHM SM |
4,300 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 700 mA | - | 3.3 nH | Unshielded | 100mOhm Max | 18 @ 250MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-5N6H1CFIXED IND 5.6NH 700MA 190MOHM SM |
2,853 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 700 mA | - | 5.6 nH | Unshielded | 190mOhm Max | 18 @ 250MHz | 5.8GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
S0603-8N2H1CFIXED IND 8.2NH 700MA 150MOHM SM |
4,367 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±3% | 700 mA | - | 8.2 nH | Unshielded | 150mOhm Max | 24 @ 250MHz | 4.8GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
195T1CHOKE, HEAVY CURRENT CHASSIS MOU |
4,274 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | Wirewound | - | ±15% | 1 A | - | 100 mH | Unshielded | 1.5Ohm | - | - | - | Chassis Mount | - | - | - | - | 3.000" L x 2.580" W (76.20mm x 65.53mm) | 2.500" (63.50mm) |
|
|
927T2007HIGH INDUCTANCE TOROID INDUCTOR |
3,269 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | ±2% | 64 mA | - | 2 H | Unshielded | 125Ohm Max | - | 10MHz | - | Through Hole | -40°C ~ 105°C | - | 1 kHz | Radial | 1.400" Dia (35.56mm) | 0.700" (17.78mm) |
|

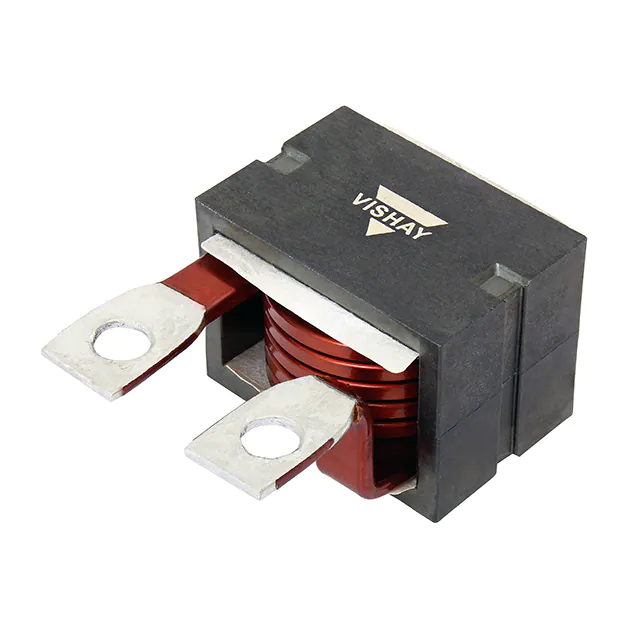

IPLA32L1R0KDFIXED IND 1UH 22A CHAS MNT |
2,526 |
|
Datasheet |
IPLA 32 | Nonstandard | Bulk | Obsolete | Planar | - | ±10% | 22 A | 110A | 1 µH | Shielded | - | - | - | - | Chassis Mount | -55°C ~ 125°C | - | 100 kHz | - | 1.189" L x 0.965" W (30.20mm x 24.50mm) | 0.874" (22.20mm) |
|
|
IPLA32L2R0KDFIXED IND 2UH 20A CHAS MNT |
1,821 |
|
Datasheet |
IPLA 32 | Nonstandard | Bulk | Obsolete | Planar | - | ±10% | 20 A | 100A | 2 µH | Shielded | - | - | - | - | Chassis Mount | -55°C ~ 125°C | - | 100 kHz | - | 1.189" L x 0.965" W (30.20mm x 24.50mm) | 0.874" (22.20mm) |
|
|
IPLA32L3R0KDFIXED IND 3UH 14A CHAS MNT |
4,530 |
|
Datasheet |
IPLA 32 | Nonstandard | Bulk | Obsolete | Planar | - | ±10% | 14 A | 70A | 3 µH | Shielded | - | - | - | - | Chassis Mount | -55°C ~ 125°C | - | 100 kHz | - | 1.189" L x 0.965" W (30.20mm x 24.50mm) | 0.874" (22.20mm) |
|
|
S0402-56NG1CFIXED IND 56NH 100MA 1 OHM SMD |
4,188 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±2% | 100 mA | - | 56 nH | Unshielded | 1Ohm Max | 21 @ 250MHz | 1.7GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-68NG1CFIXED IND 68NH 100MA 1.18OHM SMD |
2,349 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±2% | 100 mA | - | 68 nH | Unshielded | 1.18Ohm Max | 20 @ 250MHz | 1.62GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
|
|
S0402-27NG1CFIXED IND 27NH 400MA 360MOHM SMD |
2,182 |
|
Datasheet |
S0402 | 0402 (1005 Metric) | Bulk | Active | Drum Core, Wirewound | Alumina | ±2% | 400 mA | - | 27 nH | Unshielded | 360mOhm Max | 23 @ 250MHz | 2.48GHz | - | Surface Mount | -55°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.043" L x 0.025" W (1.09mm x 0.64mm) | 0.030" (0.76mm) |
