| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM125S-180MFIXED IND 18UH 2.4A 60 MOHM SMD |
1,837 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 4.32A | 18 µH | Shielded | 60mOhm Max | - | 16MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-181MFIXED IND 180UH 770MA 480MOHM SM |
4,875 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 770 mA | 1.07A | 180 µH | Shielded | 480mOhm Max | - | 5MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-270MFIXED IND 27UH 2A 80 MOHM SMD |
1,864 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 3.62A | 27 µH | Shielded | 80mOhm Max | - | 14MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-271MFIXED IND 270UH 630MA 700MOHM SM |
1,696 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 630 mA | 1.07A | 270 µH | Shielded | 700mOhm Max | - | 4MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-390MFIXED IND 39UH 1.65A 110MOHM SMD |
1,887 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.65 A | 3A | 39 µH | Shielded | 110mOhm Max | - | 12MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-470MFIXED IND 47UH 1.5A 120 MOHM SMD |
3,349 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.78A | 47 µH | Shielded | 120mOhm Max | - | 10MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-471MFIXED IND 470UH 480MA 1.2OHM SMD |
2,085 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 480 mA | 870mA | 470 µH | Shielded | 1.2Ohm Max | - | 3MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-560MFIXED IND 56UH 1.38A 150MOHM SMD |
3,380 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.38 A | 1.9A | 56 µH | Shielded | 150mOhm Max | - | 9MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-561MFIXED IND 560UH 440MA 1.34OHM SM |
1,644 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 440 mA | 740mA | 560 µH | Shielded | 1.34Ohm Max | - | 3MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-680MFIXED IND 68UH 1.26A 170MOHM SMD |
1,081 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.26 A | 2.08A | 68 µH | Shielded | 170mOhm Max | - | 9MHz | - | Surface Mount | -40°C ~ 125°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-681MFIXED IND 680UH 400MA 1.78OHM SM |
3,475 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 740mA | 680 µH | Shielded | 1.78Ohm Max | - | 3MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-821MFIXED IND 820UH 360MA 2 OHM SMD |
1,133 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 360 mA | 260mA | 820 µH | Shielded | 2Ohm Max | - | 2MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|

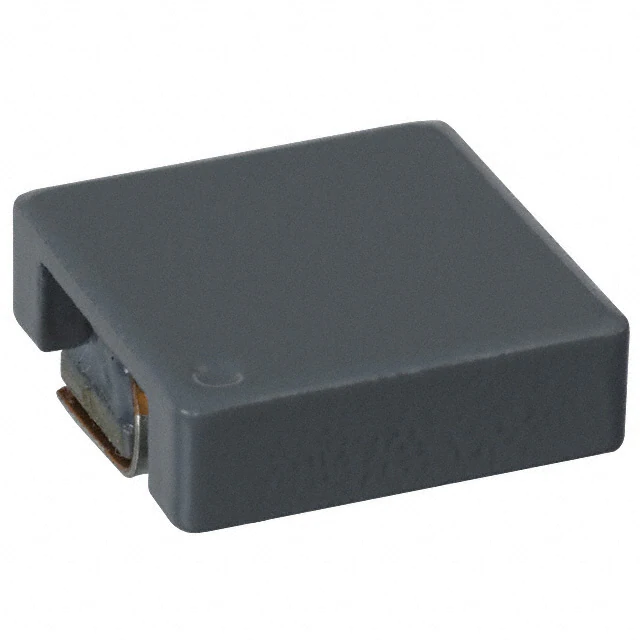

PM12639S-R67MFIXED IND 670NH 23A 1.4 MOHM SMD |
2,237 |
|
Datasheet |
PM12639S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 23 A | - | 670 nH | Shielded | 1.4mOhm Max | - | - | - | Surface Mount | -40°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
PM1608-102MFIXED IND 1MH 70MA 13.8 OHM SMD |
2,790 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 70 mA | 100mA | 1 mH | Unshielded | 13.8Ohm Max | - | - | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-150MFIXED IND 15UH 1.2A 230 MOHM SMD |
2,238 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 900mA | 15 µH | Unshielded | 230mOhm Max | - | - | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-151MFIXED IND 150UH 250MA 2 OHM SMD |
1,820 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 250 mA | 270mA | 150 µH | Unshielded | 2Ohm Max | - | - | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-1R0MFIXED IND 1UH 2.9A 50 MOHM SMD |
1,386 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.9 A | 2.9A | 1 µH | Unshielded | 50mOhm Max | - | - | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-1R5MFIXED IND 1.5UH 2.8A 50 MOHM SMD |
4,471 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.8 A | 2.6A | 1.5 µH | Unshielded | 50mOhm Max | - | - | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-2R2MFIXED IND 2.2UH 2.4A 70 MOHM SMD |
1,198 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 2.3A | 2.2 µH | Unshielded | 70mOhm Max | - | - | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-331MFIXED IND 330UH 160MA 3.8OHM SMD |
3,579 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 160 mA | 180mA | 330 µH | Unshielded | 3.8Ohm Max | - | - | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
