| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

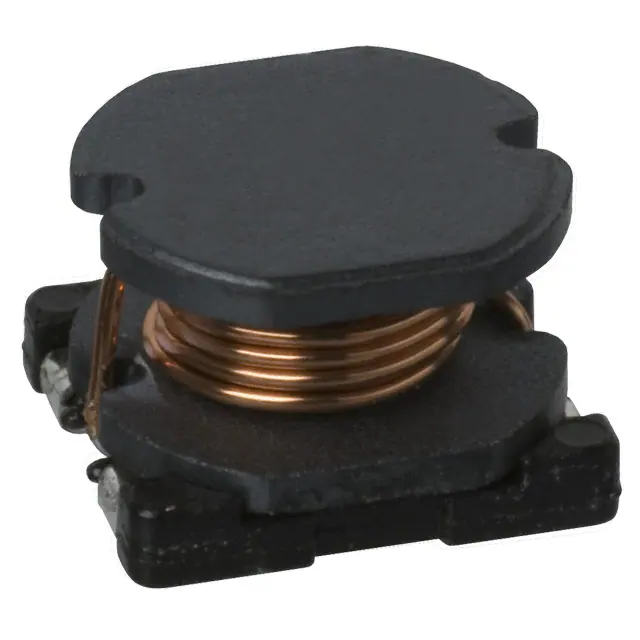

CR75-151KCFIXED IND 150UH 580MA 640MOHM SM |
4,313 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 580 mA | - | 150 µH | Unshielded | 640mOhm Max | - | 6.1MHz | - | Surface Mount | -30°C ~ 100°C | - | 1 kHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-181KCFIXED IND 180UH 510MA 710MOHM SM |
1,927 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 510 mA | - | 180 µH | Unshielded | 710mOhm Max | - | 5.8MHz | - | Surface Mount | -30°C ~ 100°C | - | 1 kHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-221KCFIXED IND 220UH 490MA 960MOHM SM |
3,697 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 490 mA | - | 220 µH | Unshielded | 960mOhm Max | - | 5.2MHz | - | Surface Mount | -30°C ~ 100°C | - | 1 kHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-271KCFIXED IND 270UH 420MA 1.11OHM SM |
3,702 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 420 mA | - | 270 µH | Unshielded | 1.11Ohm Max | - | 4.8MHz | - | Surface Mount | -30°C ~ 100°C | - | 1 kHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-331KCFIXED IND 330UH 400MA 1.26OHM SM |
2,419 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 400 mA | - | 330 µH | Unshielded | 1.26Ohm Max | - | 4.3MHz | - | Surface Mount | -30°C ~ 100°C | - | 1 kHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-391KCFIXED IND 390UH 360MA 1.77OHM SM |
3,991 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 360 mA | - | 390 µH | Unshielded | 1.77Ohm Max | - | 4.3MHz | - | Surface Mount | -30°C ~ 100°C | - | 1 kHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-471KCFIXED IND 470UH 340MA 1.96OHM SM |
3,698 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 340 mA | - | 470 µH | Unshielded | 1.96Ohm Max | - | 3.8MHz | - | Surface Mount | -30°C ~ 100°C | - | 1 kHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-1R5MCFIXED IND 1.5UH 5.5A 17 MOHM SMD |
1,517 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 5.5 A | - | 1.5 µH | Unshielded | 17mOhm Max | - | 45.6MHz | - | Surface Mount | -30°C ~ 100°C | - | 7.96 MHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-1R8MCFIXED IND 1.8UH 4.5A 19.5MOHM SM |
3,493 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 4.5 A | - | 1.8 µH | Unshielded | 19.5mOhm Max | - | 36.5MHz | - | Surface Mount | -30°C ~ 100°C | - | 7.96 MHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-2R2MCFIXED IND 2.2UH 4.5A 19.5MOHM SM |
3,915 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 4.5 A | - | 2.2 µH | Unshielded | 19.5mOhm Max | - | 36.4MHz | - | Surface Mount | -30°C ~ 100°C | - | 7.96 MHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-3R3MCFIXED IND 3.3UH 3.7A 24.7MOHM SM |
4,097 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3.7 A | - | 3.3 µH | Unshielded | 24.7mOhm Max | - | 26.8MHz | - | Surface Mount | -30°C ~ 100°C | - | 7.96 MHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-3R9MCFIXED IND 3.9UH 3.5A 27.3MOHM SM |
3,738 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3.5 A | - | 3.9 µH | Unshielded | 27.3mOhm Max | - | 24.6MHz | - | Surface Mount | -30°C ~ 100°C | - | 7.96 MHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-4R7MCFIXED IND 4.7UH 3.1A 30 MOHM SMD |
1,402 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3.1 A | - | 4.7 µH | Unshielded | 30mOhm Max | - | 20.4MHz | - | Surface Mount | -30°C ~ 100°C | - | 7.96 MHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-5R6MCFIXED IND 5.6UH 2.8A 32.5MOHM SM |
2,794 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.8 A | - | 5.6 µH | Unshielded | 32.5mOhm Max | - | 20MHz | - | Surface Mount | -30°C ~ 100°C | - | 7.96 MHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-6R8MCFIXED IND 6.8UH 2.7A 36.4MOHM SM |
4,767 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.7 A | - | 6.8 µH | Unshielded | 36.4mOhm Max | - | 19.6MHz | - | Surface Mount | -30°C ~ 100°C | - | 7.96 MHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CR75-8R2MCFIXED IND 8.2UH 2.5A 41.6MOHM SM |
2,451 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | - | 8.2 µH | Unshielded | 41.6mOhm Max | - | 18MHz | - | Surface Mount | -30°C ~ 100°C | - | 7.96 MHz | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
CD105-101KCFIXED IND 100UH 970MA 350MOHM SM |
4,957 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 970 mA | - | 100 µH | Unshielded | 350mOhm Max | - | 7.64MHz | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CD105-221KCFIXED IND 220UH 660MA 730MOHM SM |
4,433 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 660 mA | - | 220 µH | Unshielded | 730mOhm Max | - | 5.25MHz | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|

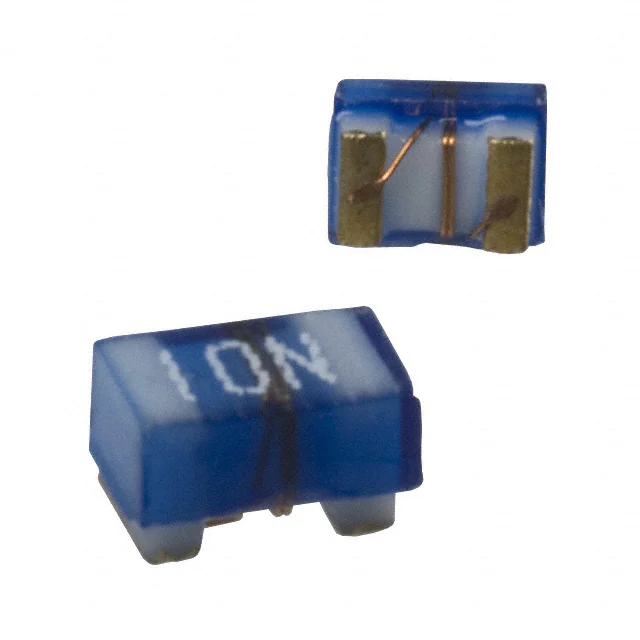

PM0603-15NJFIXED IND 15NH 700MA 170MOHM SMD |
2,292 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 700 mA | - | 15 nH | Unshielded | 170mOhm | 35 @ 250MHz | 4GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-33NJFIXED IND 33NH 600MA 230MOHM SMD |
1,163 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 33 nH | Unshielded | 230mOhm | 43 @ 250MHz | 2.3GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
