| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLF1608T220MFIXED IND 22UH 100MA 3 OHM SMD |
2,827 |
|
Datasheet |
GLF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 100 mA | 35mA | 22 µH | Shielded | 3Ohm | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
GLF2012T101KFIXED IND 100UH 110MA 4 OHM SMD |
3,519 |
|
Datasheet |
GLF | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 110 mA | 30mA | 100 µH | Shielded | 4Ohm | - | - | - | Surface Mount | -20°C ~ 105°C | - | - | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.053" (1.35mm) |
|
P0841FIXED IND 22.8UH 4.9A 36 MOHM TH |
4,115 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tube | Obsolete | Toroidal | - | ±20% | 4.9 A | - | 22.8 µH | Shielded | 36mOhm | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PE-53803FIXED IND 118UH 200MA 1.8 OHM TH |
1,017 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Bulk | Obsolete | Toroidal | - | ±20% | 200 mA | - | 118 µH | Shielded | 1.8Ohm | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|
|
PE-53804FIXED IND 79UH 250MA 1.5 OHM TH |
3,741 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Bulk | Obsolete | Toroidal | - | ±20% | 250 mA | - | 79 µH | Shielded | 1.5Ohm | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|
|
PE-53807FIXED IND 26UH 450MA 620 MOHM TH |
2,655 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Bulk | Obsolete | Toroidal | - | ±20% | 450 mA | - | 26 µH | Shielded | 620mOhm | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|
P0751.103TFIXED IND 10UH 3.8A 50 MOHM SMD |
1,051 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 3.8 A | 3.8A | 10 µH | Unshielded | 50mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

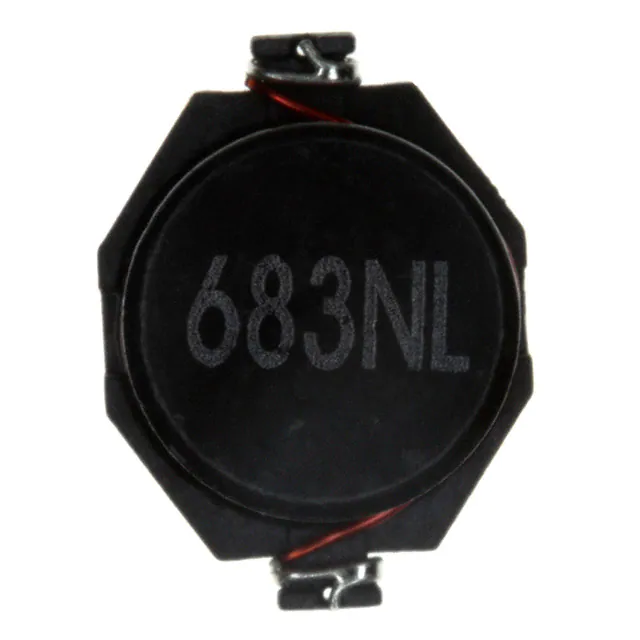

P0751.683TFIXED IND 68UH 1.4A 240 MOHM SMD |
4,293 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.4 A | 1.4A | 68 µH | Unshielded | 240mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0848SFIXED IND 50UH 5A 25 MOHM SMD |
1,312 |
|
Datasheet |
Bigfoot | Nonstandard | Tube | Obsolete | Toroidal | - | ±20% | 5 A | - | 50 µH | Shielded | 25mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PE-53801SFIXED IND 259UH 130MA 3.4OHM SMD |
4,682 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 130 mA | - | 259 µH | Shielded | 3.4Ohm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.85mm) |
|
79F5R6K-RCFIXED IND 5.6UH 180MA 1.9 OHM TH |
2,474 |
|
Datasheet |
79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | - | 5.6 µH | Unshielded | 1.9Ohm Max | 40 @ 7.9MHz | 28MHz | - | Through Hole | -55°C ~ 105°C | - | 7.9 MHz | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
79F6R8K-RCFIXED IND 6.8UH 175MA 2 OHM TH |
1,326 |
|
Datasheet |
79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 175 mA | - | 6.8 µH | Unshielded | 2Ohm Max | 40 @ 7.9MHz | 26MHz | - | Through Hole | -55°C ~ 105°C | - | 7.9 MHz | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|

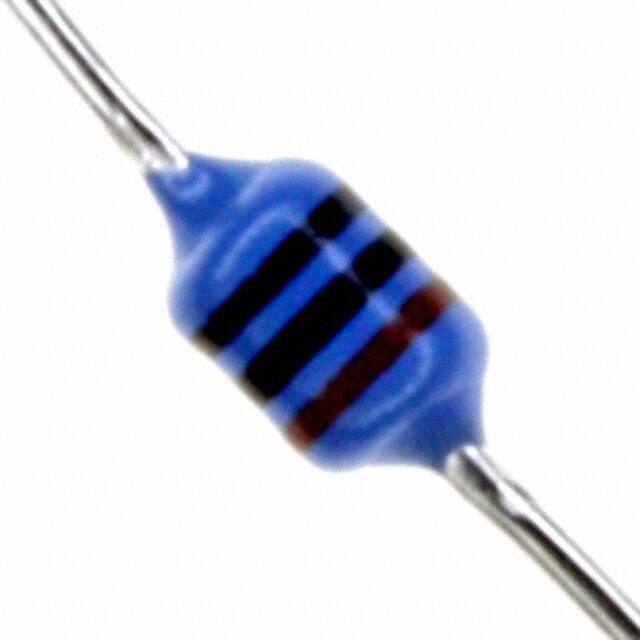

79F100K-TR-RCFIXED IND 10UH 160MA 2.4 OHM TH |
2,206 |
|
Datasheet |
79F | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 160 mA | - | 10 µH | Unshielded | 2.4Ohm Max | 40 @ 7.9MHz | 22MHz | - | Through Hole | -55°C ~ 105°C | - | 7.9 MHz | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
79F180K-RCFIXED IND 18UH 140MA 3.1 OHM TH |
2,051 |
|
Datasheet |
79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 140 mA | - | 18 µH | Unshielded | 3.1Ohm Max | 40 @ 2.5MHz | 17MHz | - | Through Hole | -55°C ~ 105°C | - | 2.5 MHz | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
70F106AI-RCFIXED IND 1UH 2.041A 48 MOHM TH |
2,641 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±20% | 2.041 A | - | 1 µH | Unshielded | 48mOhm Max | 41 @ 25MHz | 118MHz | - | Through Hole | -55°C ~ 105°C | - | 25 MHz | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F104AI-RCFIXED IND 100UH 139MA 7.68OHM TH |
2,053 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 139 mA | - | 100 µH | Unshielded | 7.68Ohm Max | 25 @ 2.5MHz | 3.6MHz | - | Through Hole | -55°C ~ 105°C | - | 2.5 MHz | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F103AI-RCFIXED IND 1MH 79MA 24 OHM TH |
1,340 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 79 mA | - | 1 mH | Unshielded | 24Ohm Max | 30 @ 790kHz | 1.4MHz | - | Through Hole | -55°C ~ 105°C | - | 790 kHz | - | 0.220" Dia x 0.250" L (5.59mm x 6.35mm) | - |
|

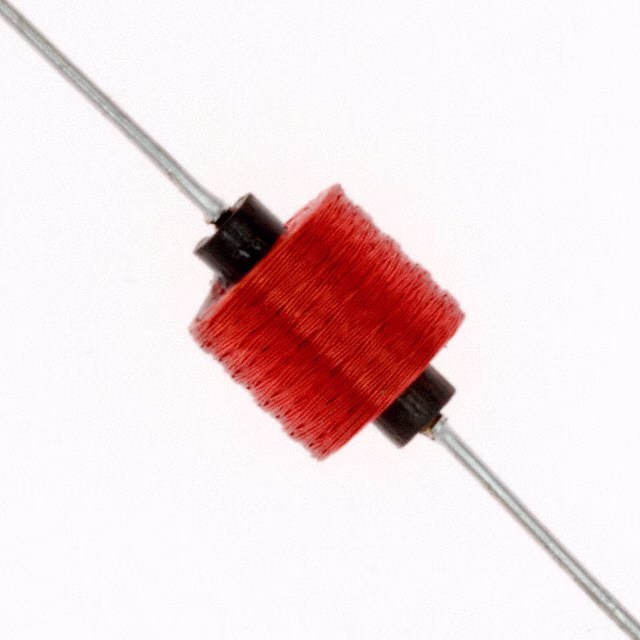

70F102AI-RCFIXED IND 10MH 38MA 101 OHM TH |
3,542 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 38 mA | - | 10 mH | Unshielded | 101Ohm Max | 41 @ 250kHz | 520kHz | - | Through Hole | -55°C ~ 105°C | - | 250 kHz | - | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | - |
|

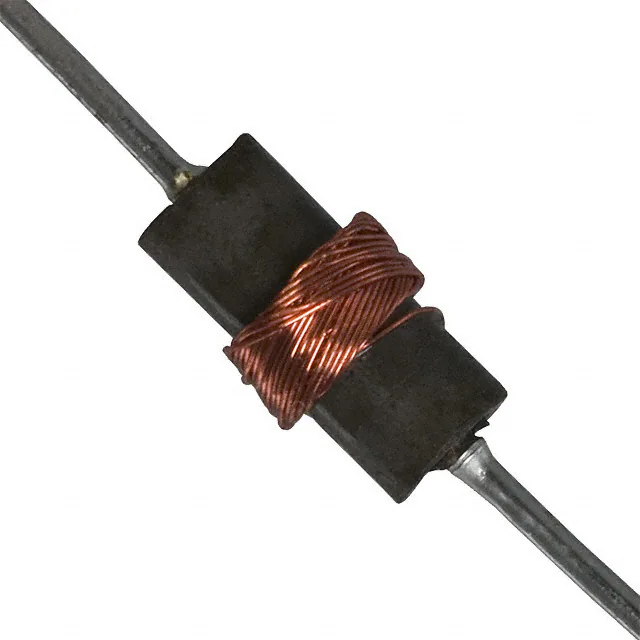

70F225AI-RCFIXED IND 22UH 229MA 2.28 OHM TH |
4,690 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 229 mA | - | 22 µH | Unshielded | 2.28Ohm Max | 51 @ 2.5MHz | 13MHz | - | Through Hole | -55°C ~ 105°C | - | 2.5 MHz | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

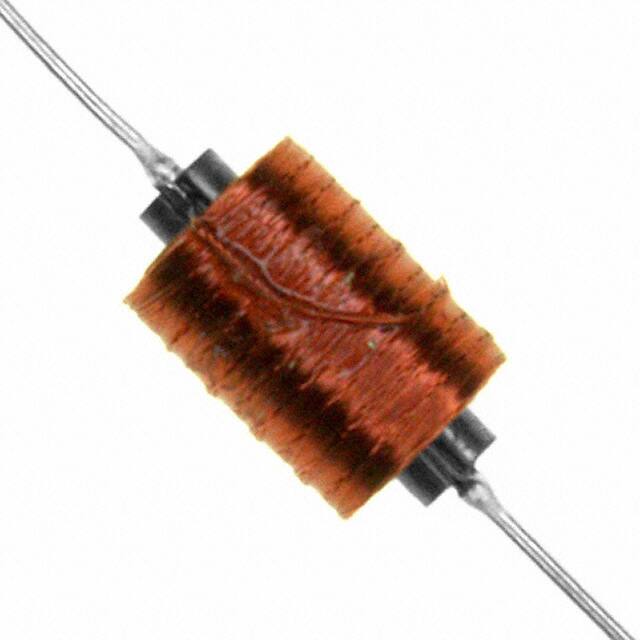

70F222AI-RCFIXED IND 22MH 41MA 144 OHM TH |
3,823 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 41 mA | - | 22 mH | Unshielded | 144Ohm Max | 50 @ 79kHz | 270kHz | - | Through Hole | -55°C ~ 105°C | - | 79 kHz | - | 0.330" Dia x 0.500" L (8.38mm x 12.70mm) | - |
