| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

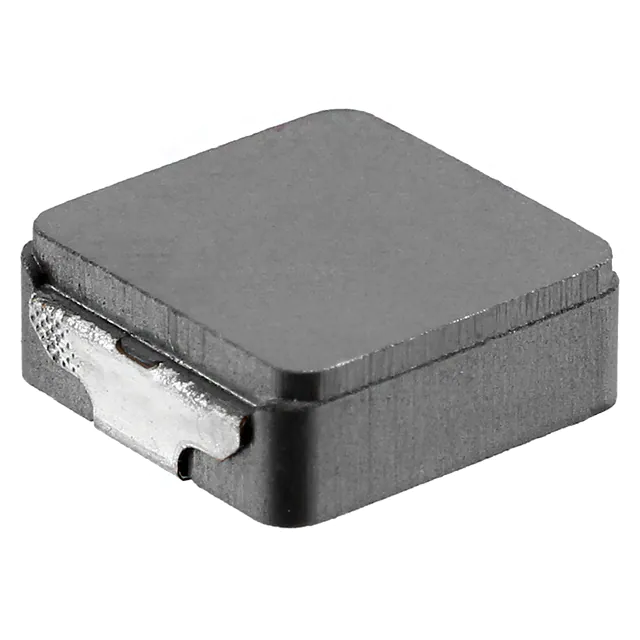

IHLP4040DZEB1R5M01FIXED IND 1.5UH 15A 5.8 MOHM SMD |
3,920 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 15 A | 27.5A | 1.5 µH | Shielded | 5.8mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZEBR36M01FIXED IND 360NH 31.5A 1.4MOHM SM |
2,441 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 31.5 A | 60A | 360 nH | Shielded | 1.4mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZEB6R8M01FIXED IND 6.8UH 8A 23.3 MOHM SMD |
3,448 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 8 A | 13.5A | 6.8 µH | Shielded | 23.3mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZEB5R6M01FIXED IND 5.6UH 8.5A 19.3MOHM SM |
4,917 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 8.5 A | 16A | 5.6 µH | Shielded | 19.3mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZEB470M11FIXED IND 47UH 3.3A 145 MOHM SMD |
1,241 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 3.3 A | 3A | 47 µH | Shielded | 145mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZEB1R0M11FIXED IND 1UH 25A 2.5 MOHM SMD |
2,455 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 25 A | 20A | 1 µH | Shielded | 2.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZEB220M11FIXED IND 22UH 5A 66 MOHM SMD |
3,552 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 5 A | 4.5A | 22 µH | Shielded | 66mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZEB100M11FIXED IND 10UH 7.5A 30.5MOHM SMD |
1,397 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 7.5 A | 7.1A | 10 µH | Shielded | 30.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZEB101M11FIXED IND 100UH 2.5A 270MOHM SMD |
3,327 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 2.5 A | 2.25A | 100 µH | Shielded | 270mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZEB4R7M11FIXED IND 4.7UH 9.5A 14.2MOHM SM |
3,445 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Bulk | Obsolete | Molded | - | ±20% | 9.5 A | 7.6A | 4.7 µH | Shielded | 14.2mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
LQH6PPN1R5N43LFIXED IND 1.5UH 4.15A 10MOHM SMD |
2,246 |
|
Datasheet |
LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 4.15 A | 6.5A | 1.5 µH | Shielded | 10mOhm | - | 60MHz | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

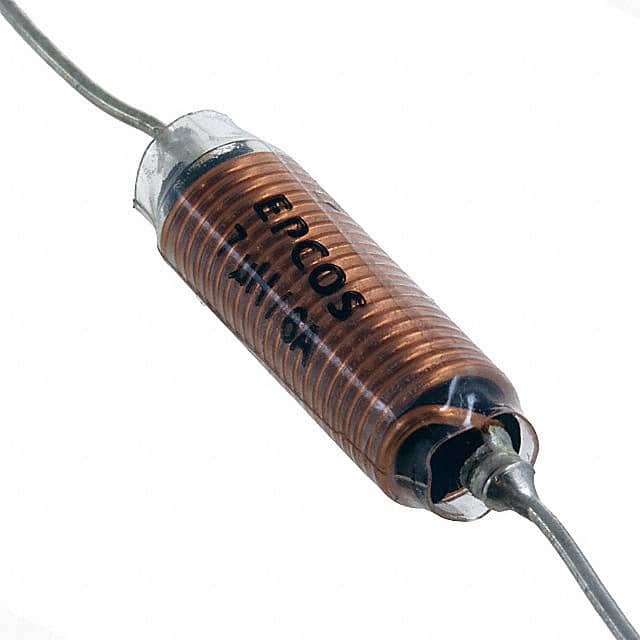

B82111E0000C020FIXED IND 7UH 6A 20 MOHM TH |
3,897 |
|
Datasheet |
B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 6 A | - | 7 µH | Unshielded | 20mOhm | - | 180MHz | - | Through Hole | -55°C ~ 125°C | - | 1 MHz | - | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - |
|
GLFR1608T150M-LRFIXED IND 15UH 220MA 900MOHM SMD |
3,745 |
|
Datasheet |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 220 mA | 55mA | 15 µH | Shielded | 900mOhm | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
GLFR1608T330M-LRFIXED IND 33UH 120MA 2.2 OHM SMD |
2,036 |
|
Datasheet |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 120 mA | 40mA | 33 µH | Shielded | 2.2Ohm | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
GLFR1608T680M-LRFIXED IND 68UH 90MA 4 OHM SMD |
1,947 |
|
Datasheet |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 90 mA | 20mA | 68 µH | Shielded | 4Ohm | - | - | - | Surface Mount | -40°C ~ 105°C | - | - | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
PA1894.331NLFIXED IND 335NH 35A 0.64 MOHM TH |
2,626 |
|
Datasheet |
PA1894NL | Radial, Vertical | Tray | Obsolete | - | - | ±10% | 35 A | 40A | 335 nH | Unshielded | 0.64mOhm | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
|
PE-92109NLFIXED IND 165UH 4A 70 MOHM TH |
2,290 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | ±20% | 4 A | - | 165 µH | Unshielded | 70mOhm Max | - | - | - | Through Hole | -40°C ~ 130°C | - | 20 kHz | - | 1.400" Dia x 0.700" W (35.56mm x 17.78mm) | - |
|
|
PG0036NLFIXED IND 19.5UH 3A 93 MOHM TH |
2,573 |
|
Datasheet |
- | Radial, Horizontal Cylinder | Tray | Active | Toroidal | - | - | 3 A | 7A | 19.5 µH | Unshielded | 93mOhm Max | - | - | - | Through Hole | -40°C ~ 125°C | - | - | - | 0.394" Dia (10.00mm) | 0.453" (11.50mm) |
|
|
PE-51591NLFIXED IND 20UH 2A 60 MOHM TH |
4,996 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | - | 2 A | - | 20 µH | Unshielded | 60mOhm Max | - | - | - | Through Hole | -40°C ~ 130°C | - | 20 kHz | - | 0.640" Dia x 0.280" W (16.26mm x 7.11mm) | - |
|
|
PE-52648NLFIXED IND 470UH 900MA 1.26OHM TH |
4,261 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | ±20% | 900 mA | - | 470 µH | Unshielded | 1.26Ohm Max | - | - | - | Through Hole | -40°C ~ 130°C | - | 20 kHz | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
