| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,60x0,30x0,33mm.jpg)
|
L0201C22NJRMSTFIXED IND 22NH 100MA 1.2 OHM SMD |
1,107 |
|
Datasheet |
L-RMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 22 nH | Unshielded | 1.2Ohm Max | 7 @ 100MHz | 2.6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
L1210R2R2MDWITFIXED IND 2.2UH 2A 80 MOHM SMD |
3,182 |
|
Datasheet |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2 A | - | 2.2 µH | Unshielded | 80mOhm | - | 190MHz | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
L4018C2R2MDWDTFIXED IND 2.2UH 1.44A 60MOHM SMD |
3,590 |
|
Datasheet |
L-DWD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.44 A | - | 2.2 µH | Shielded | 60mOhm Max | - | 52MHz | - | Surface Mount | -25°C ~ 120°C | - | 100 kHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
L0402C4N7SRMSTFIXED IND 4.7NH 300MA 210MOHM SM |
3,402 |
|
Datasheet |
L-RMS | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 4.7 nH | Unshielded | 210mOhm Max | 10 @ 100MHz | 6GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
L0603CR15JRMSTFIXED IND 150NH 300MA 1.2OHM SMD |
1,240 |
|
Datasheet |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 150 nH | Unshielded | 1.2Ohm Max | 13 @ 100MHz | 800MHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L0603C18NJRMSTFIXED IND 18NH 300MA 350MOHM SMD |
2,997 |
|
Datasheet |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 18 nH | Unshielded | 350mOhm Max | 15 @ 100MHz | 3GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L0201C15NJRMSTFIXED IND 15NH 100MA 800MOHM SMD |
2,263 |
|
Datasheet |
L-RMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 15 nH | Unshielded | 800mOhm Max | 7 @ 100MHz | 3.3GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
L0603C1N0SRMSTFIXED IND 1NH 300MA 50 MOHM SMD |
1,324 |
|
Datasheet |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 1 nH | Unshielded | 50mOhm Max | 14 @ 100MHz | 13GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
L1207C470KPWSTFIXED IND 47UH 205MA 920MOHM SMD |
2,834 |
|
Datasheet |
L-PWS | 1207 (3218 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 205 mA | - | 47 µH | Unshielded | 920mOhm | - | 12MHz | - | Surface Mount | -40°C ~ 105°C | - | 2.52 MHz | 1207 (3218 Metric) | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
|
L1210R101MDWITFIXED IND 100UH 270MA 1.4OHM SMD |
1,199 |
|
Datasheet |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 270 mA | - | 100 µH | Unshielded | 1.4Ohm | - | 6MHz | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
L1210R220MDWITFIXED IND 22UH 620MA 270MOHM SMD |
4,494 |
|
Datasheet |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 620 mA | - | 22 µH | Unshielded | 270mOhm | - | 17MHz | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
L1210R4R7MDWITFIXED IND 4.7UH 1.25A 100MOHM SM |
1,871 |
|
Datasheet |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.25 A | - | 4.7 µH | Unshielded | 100mOhm | - | 70MHz | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
L0603C47NJRMSTFIXED IND 47NH 300MA 700MOHM SMD |
2,873 |
|
Datasheet |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 47 nH | Unshielded | 700mOhm Max | 17 @ 100MHz | 1.6GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L0603C10NJRMSTFIXED IND 10NH 300MA 260MOHM SMD |
3,753 |
|
Datasheet |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 10 nH | Unshielded | 260mOhm Max | 14 @ 100MHz | 4.6GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
L0805C100MDWITFIXED IND 10UH 240MA 1.2 OHM SMD |
1,147 |
|
Datasheet |
L-DWI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 240 mA | - | 10 µH | Unshielded | 1.2Ohm | - | 40MHz | - | Surface Mount | -40°C ~ 105°C | - | 2.52 MHz | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
0520CDMCDS-R33MCFIXED IND 330NH 7.9A 8 MOHM SMD |
1,476 |
|
Datasheet |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 7.9 A | 14A | 330 nH | Shielded | 8mOhm | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
0520CDMCDS-R68MCFIXED IND 680NH 6.6A 13 MOHM SMD |
2,940 |
|
Datasheet |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 6.6 A | 10A | 680 nH | Shielded | 13mOhm | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
|
0520CDMCDS-2R2MCFIXED IND 2.2UH 4.1A 30 MOHM SMD |
1,272 |
|
Datasheet |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 4.1 A | 6A | 2.2 µH | Shielded | 30mOhm | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|

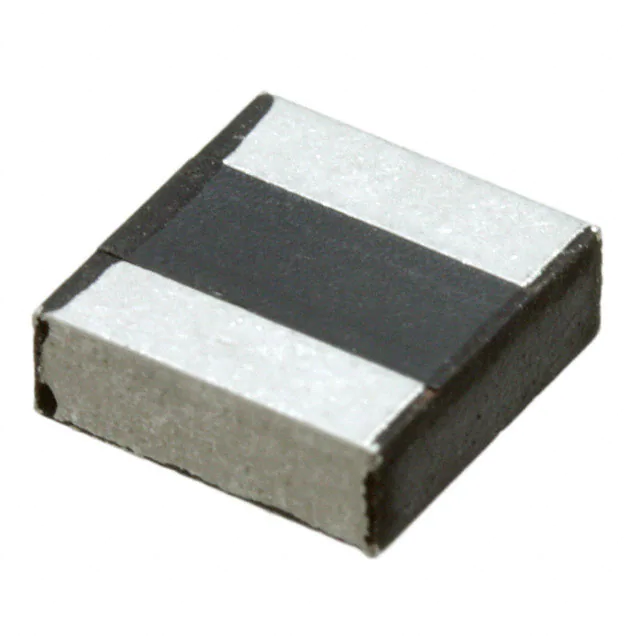

0520CDMCDS-3R3MCFIXED IND 3.3UH 3.6A 50 MOHM SMD |
4,539 |
|
Datasheet |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 3.6 A | 4.9A | 3.3 µH | Shielded | 50mOhm | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
|
0520CDMCDS-4R7MCFIXED IND 4.7UH 2.8A 65 MOHM SMD |
1,880 |
|
Datasheet |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 2.8 A | 4.4A | 4.7 µH | Shielded | 65mOhm | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
