| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5612-RCFIXED IND 25UH 14A 9 MOHM TH |
3,282 |
|
Datasheet |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 14 A | - | 25 µH | Unshielded | 9mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 1.220" Dia (31.00mm) | 1.110" (28.19mm) |
|
|
5626-RCFIXED IND 100UH 14A 18 MOHM TH |
4,981 |
|
Datasheet |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 14 A | - | 100 µH | Unshielded | 18mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
|
5629-RCFIXED IND 1MH 4.4A 183 MOHM TH |
2,060 |
|
Datasheet |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4.4 A | - | 1 mH | Unshielded | 183mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 1.500" Dia (38.10mm) | 1.500" (38.10mm) |
|
70F181AF-RCFIXED IND 180MH 41MA 374 OHM TH |
2,360 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 41 mA | - | 180 mH | Unshielded | 374Ohm Max | 51 @ 25kHz | 75kHz | - | Through Hole | -55°C ~ 105°C | - | 25 kHz | - | 0.520" Dia x 0.880" L (13.21mm x 22.35mm) | - |
|
|
73F474AF-RCFIXED IND 470UH 200MA 4.8 OHM TH |
4,617 |
|
Datasheet |
73F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 200 mA | - | 470 µH | Unshielded | 4.8Ohm Max | 160 @ 79kHz | 3.9MHz | - | Through Hole | -55°C ~ 105°C | - | 79 kHz | - | 0.390" Dia x 0.625" L (9.91mm x 15.88mm) | - |
|
|
9310-02-TR-RCFIXED IND 220NH 1.9A 55 MOHM TH |
3,009 |
|
Datasheet |
9310 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | - | 220 nH | Unshielded | 55mOhm Max | 50 @ 25MHz | 450MHz | - | Through Hole | -55°C ~ 105°C | - | 25 MHz | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
9310-06-TR-RCFIXED IND 470NH 1.225A 120MOHM |
4,193 |
|
Datasheet |
9310 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.225 A | - | 470 nH | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | Through Hole | -55°C ~ 105°C | - | 25 MHz | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
9310-20-TR-RCFIXED IND 2.2UH 435MA 950MOHM TH |
2,937 |
|
Datasheet |
9310 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 435 mA | - | 2.2 µH | Unshielded | 950mOhm Max | 33 @ 7.9MHz | 135MHz | - | Through Hole | -55°C ~ 105°C | - | 7.9 MHz | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
9310-36-TR-RCFIXED IND 10UH 445MA 900 MOHM TH |
1,109 |
|
Datasheet |
9310 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 445 mA | - | 10 µH | Unshielded | 900mOhm Max | 55 @ 7.9MHz | 45MHz | - | Through Hole | -55°C ~ 105°C | - | 7.9 MHz | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
CI100505-7N5JFIXED IND 7.5NH SMD |
3,734 |
|
Datasheet |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | - | - | 7.5 nH | Unshielded | - | 8 @ 100MHz | - | - | Surface Mount | -55°C ~ 105°C | - | - | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CM201212-12NKLFIXED IND 12NH 535MA 230MOHM SMD |
2,344 |
|
Datasheet |
CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Polymer | ±10% | 535 mA | - | 12 nH | Unshielded | 230mOhm Max | 10 @ 100MHz | 3.3GHz | - | Surface Mount | -40°C ~ 100°C | - | 100 MHz | 0805 (2012 Metric) | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
CW252016-2R2GFIXED IND 2.2UH 250MA 2.8OHM SMD |
3,517 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±2% | 250 mA | - | 2.2 µH | Unshielded | 2.8Ohm Max | 25 @ 7.9MHz | 160MHz | - | Surface Mount | -40°C ~ 125°C | - | 7.9 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
PM1038S-R50M-RCFIXED IND 500NH 23A 1.9 MOHM SMD |
1,553 |
|
Datasheet |
PM1038S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | ±20% | 23 A | 32A | 500 nH | Shielded | 1.9mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
PM2100-271K-RCFIXED IND 270UH 3.4A 82 MOHM SMD |
4,214 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | ±10% | 3.4 A | - | 270 µH | Unshielded | 82mOhm Max | - | - | - | Surface Mount | -55°C ~ 105°C | - | 1 kHz | - | 1.200" L x 1.000" W (30.48mm x 25.40mm) | - |
|

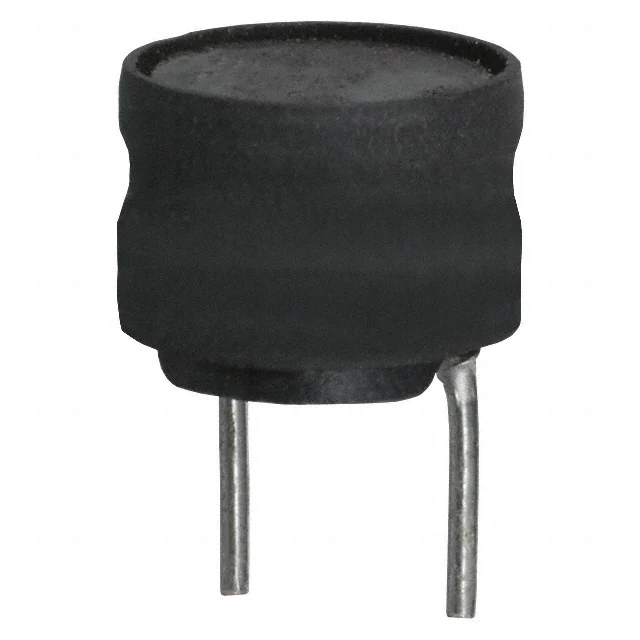

RL262-221J-RCFIXED IND 220UH 150MA 3 OHM TH |
3,411 |
|
Datasheet |
RL262 | Radial, Vertical Cylinder | Tube | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 150 mA | - | 220 µH | Unshielded | 3Ohm Max | 60 @ 796kHz | 4.5MHz | - | Through Hole | -55°C ~ 105°C | - | 796 kHz | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-681J-RCFIXED IND 680UH 100MA 6 OHM TH |
3,416 |
|
Datasheet |
RL262 | Radial, Vertical Cylinder | Tube | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | 680 µH | Unshielded | 6Ohm Max | 60 @ 796kHz | 2.7MHz | - | Through Hole | -55°C ~ 105°C | - | 796 kHz | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-682J-RCFIXED IND 6.8MH 30MA 40 OHM TH |
1,848 |
|
Datasheet |
RL262 | Radial, Vertical Cylinder | Tube | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | 6.8 mH | Unshielded | 40Ohm Max | 80 @ 252kHz | 700kHz | - | Through Hole | -55°C ~ 105°C | - | 252 kHz | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL855-821K-RCFIXED IND 820UH 310MA 3.8 OHM TH |
1,991 |
|
Datasheet |
RL855 | Radial, Vertical Cylinder (Open) | Tube | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 310 mA | - | 820 µH | Unshielded | 3.8Ohm Max | 34 @ 790kHz | 1.7MHz | - | Through Hole | -30°C ~ 100°C | - | 1 kHz | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
|
SDE6603-8R2MFIXED IND 8.2UH SMD |
3,411 |
|
Datasheet |
SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | - | - | 8.2 µH | Unshielded | - | - | - | - | Surface Mount | -25°C ~ 105°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SRP4020-5R6MFIXED IND 5.6UH 2.4A 90 MOHM SMD |
2,083 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | ±20% | 2.4 A | 3.5A | 5.6 µH | Shielded | 90mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
