| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL0809-101-RFIXED IND 100UH TH |
1,113 |
|
Datasheet |
RL0809 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | - | - | - | 100 µH | Unshielded | - | - | - | - | Through Hole | -40°C ~ 125°C | - | 10 kHz | - | 0.311" Dia (7.90mm) | 0.354" (9.00mm) |
|
HCV1206-R40-RFIXED IND 400NH SMD |
4,323 |
|
Datasheet |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | - | - | - | 400 nH | Unshielded | - | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.240" (6.10mm) |
|
|
HCV1206-R47-RFIXED IND 470NH SMD |
1,276 |
|
Datasheet |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | - | - | - | 470 nH | Unshielded | - | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.240" (6.10mm) |
|
P0752.684NLFIXED IND 680UH 400MA 2.17OHM SM |
4,412 |
|
Datasheet |
P0752NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 400 mA | 400mA | 680 µH | Unshielded | 2.17Ohm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

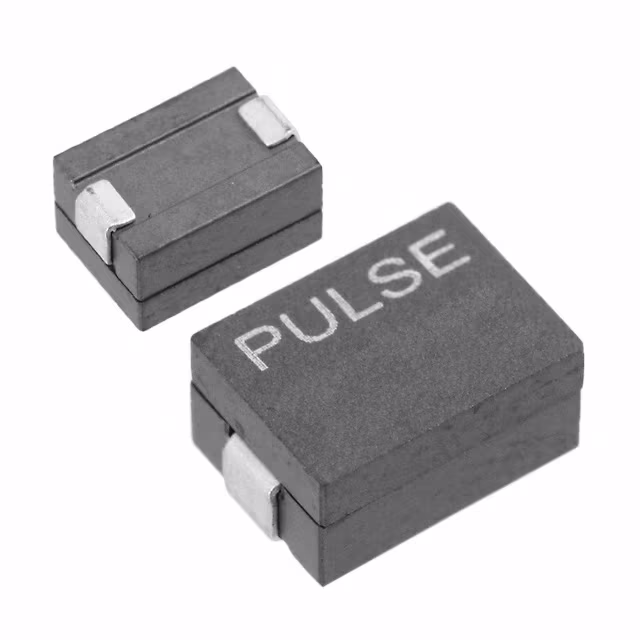

PA0511.221NLFIXED IND 220NH 25A 0.39MOHM SMD |
1,233 |
|
Datasheet |
PA0511NL | Nonstandard | Tray | Active | - | - | ±20% | 25 A | 33A | 220 nH | Shielded | 0.39mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.96mm) |
|
PA0512.101NLFIXED IND 105NH 31A 0.32MOHM SMD |
3,931 |
|
Datasheet |
PA0512NL | Nonstandard | Tray | Obsolete | - | - | ±20% | 31 A | 46A | 105 nH | Shielded | 0.32mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
PA0512.151NLFIXED IND 150NH 24A 0.32MOHM SMD |
2,957 |
|
Datasheet |
PA0512NL | Nonstandard | Tray | Obsolete | - | - | ±20% | 24 A | 30A | 150 nH | Shielded | 0.32mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
|
PA0512.700NLFIXED IND 72NH 31A 0.32 MOHM SMD |
1,990 |
|
Datasheet |
PA0512NL | Nonstandard | Tray | Obsolete | - | - | ±20% | 31 A | 58A | 72 nH | Shielded | 0.32mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
PA0513.321NLFIXED IND 320NH 41A 0.32MOHM SMD |
4,082 |
|
Datasheet |
PA0513NL | Nonstandard | Tray | Obsolete | - | - | ±20% | 41 A | 50A | 320 nH | Shielded | 0.32mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
|
PA0513.441NLFIXED IND 440NH 30A 0.32MOHM SMD |
1,441 |
|
Datasheet |
PA0513NL | Nonstandard | Tray | Obsolete | - | - | ±20% | 30 A | 35A | 440 nH | Shielded | 0.32mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
PA1320.171NLFIXED IND 180NH 40A 0.48MOHM SMD |
1,957 |
|
Datasheet |
PA1320NL | Nonstandard | Tray | Active | - | - | ±20% | 40 A | 44A | 180 nH | Shielded | 0.48mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.410" L x 0.315" W (10.41mm x 8.00mm) | 0.256" (6.50mm) |
|
PA3288.221HLFIXED IND 220NH 64A 0.29MOHM SMD |
4,464 |
|
Datasheet |
PA3288.XXXHL | Nonstandard | Tray | Active | - | - | ±15% | 64 A | 45A | 220 nH | Unshielded | 0.29mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
|
|
PA3288.301HLFIXED IND 300NH 64A 0.29MOHM SMD |
3,448 |
|
Datasheet |
PA3288.XXXHL | Nonstandard | Tray | Active | - | - | ±15% | 64 A | 34A | 300 nH | Unshielded | 0.29mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
|
PA3790.181HLFIXED IND 180NH 57A 0.29MOHM SMD |
2,850 |
|
Datasheet |
PA3790.XXXHL | Nonstandard | Tray | Active | - | - | ±15% | 57 A | 84A | 180 nH | Shielded | 0.29mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.492" L x 0.315" W (12.50mm x 8.00mm) | 0.315" (8.00mm) |
|
PF0560.522NLFIXED IND 5.2UH 5.4A 22 MOHM SMD |
2,907 |
|
Datasheet |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | ±30% | 5.4 A | 5.5A | 5.2 µH | Shielded | 22mOhm Max | - | 34MHz | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PG0642.102NLFIXED IND 1UH 14.5A 5.8 MOHM SMD |
4,986 |
|
Datasheet |
PG0642NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 14.5 A | 22A | 1 µH | Shielded | 5.8mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
|
PG0642.222NLFIXED IND 2.2UH 10A 12.7MOHM SMD |
3,211 |
|
Datasheet |
PG0642NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 10 A | 14A | 2.2 µH | Shielded | 12.7mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
|
PG0642.401NLFIXED IND 400NH 20A 3.3 MOHM SMD |
4,094 |
|
Datasheet |
PG0642NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 20 A | 32A | 400 nH | Shielded | 3.3mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
PG0702.102NLFIXED IND 1UH 26A 1.76 MOHM SMD |
1,838 |
|
Datasheet |
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 26 A | 26A | 1 µH | Shielded | 1.76mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
PG1083.682NLFIXED IND 6.8UH 22A 3.8 MOHM SMD |
3,911 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 22 A | 20A | 6.8 µH | Unshielded | 3.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
