| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LK1005R47K-TVFIXED IND 470NH 20MA 420MOHM SMD |
1,841 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±10% | 20 mA | - | 470 nH | Shielded | 420mOhm | 20 @ 10MHz | 80MHz | AEC-Q200 | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LK1005R82K-TVFIXED IND 820NH 20MA 590MOHM SMD |
4,105 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±10% | 20 mA | - | 820 nH | Shielded | 590mOhm | 20 @ 10MHz | 65MHz | AEC-Q200 | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LK10051R0K-TVFIXED IND 1UH 20MA 640 MOHM SMD |
2,002 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±10% | 20 mA | - | 1 µH | Shielded | 640mOhm | 20 @ 10MHz | 60MHz | AEC-Q200 | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LK10052R2K-TVFIXED IND 2.2UH 20MA 1.15OHM SMD |
4,694 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±10% | 20 mA | - | 2.2 µH | Shielded | 1.15Ohm | 20 @ 10MHz | 40MHz | AEC-Q200 | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LK10052R2M-TVFIXED IND 2.2UH 20MA 1.15OHM SMD |
4,463 |
|
Datasheet |
LK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 20 mA | - | 2.2 µH | Unshielded | 1.15Ohm | 20 @ 10MHz | 40MHz | AEC-Q200 | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ILC0805ERR47JFIXED IND 470NH SMD |
3,237 |
|
Datasheet |
ILC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | - | - | 470 nH | - | - | - | - | - | Surface Mount | -55°C ~ 125°C | - | 50 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
MLF1005L1R8KT000FIXED IND 1.8UH 20MA 1.05OHM SMD |
1,795 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 20 mA | - | 1.8 µH | Shielded | 1.05Ohm | 25 @ 10MHz | 90MHz | - | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLP2520P2R2SFIXED IND 2.2UH 1.2A 208MOHM SMD |
2,267 |
|
Datasheet |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±20% | 1.2 A | - | 2.2 µH | Shielded | 208mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MLP2520P4R7SFIXED IND 4.7UH 1.2A 195MOHM SMD |
4,948 |
|
Datasheet |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±20% | 1.2 A | - | 4.7 µH | Shielded | 195mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
PM1008S-221M-RCFIXED IND 220UH 210MA 10 OHM SMD |
4,939 |
|
Datasheet |
PM1008S | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 210 mA | - | 220 µH | Shielded | 10Ohm Max | 55 @ 1MHz | 4.5MHz | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
B78108S1823K000FIXED IND 82UH 390MA 1.54 OHM TH |
4,854 |
|
Datasheet |
BC | Axial | Tape & Box (TB) | Active | Drum Core, Wirewound | Ferrite | ±10% | 390 mA | - | 82 µH | Unshielded | 1.54Ohm Max | 35 @ 2.52MHz | 6MHz | - | Through Hole | -55°C ~ 125°C | - | 100 kHz | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
FDUE1040D-H-1R0M=P3FIXED IND 1UH 18A 2.515 MOHM SMD |
4,452 |
|
Datasheet |
FDUE1040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 18 A | 16A | 1 µH | Shielded | 2.515mOhm Max | - | - | - | Surface Mount | -20°C ~ 100°C | - | 100 kHz | - | 0.441" L x 0.394" W (11.20mm x 10.00mm) | 0.157" (4.00mm) |
|

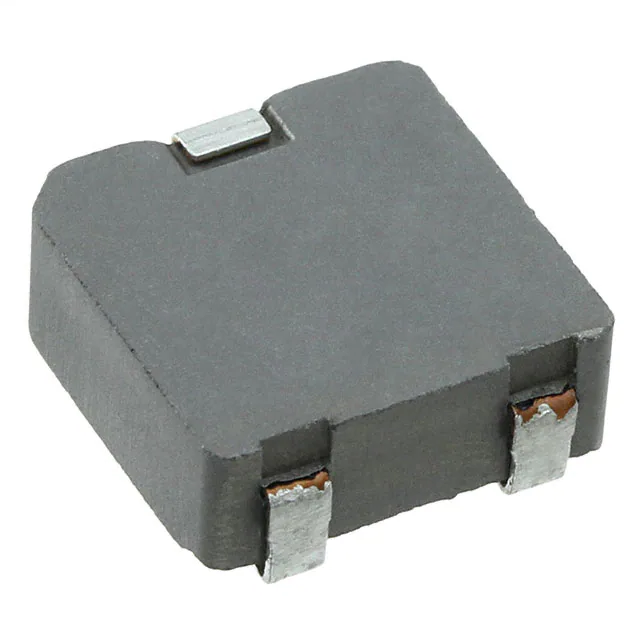

FDA1254-H-4R7M=P3FIXED IND 4.7UH 10.2A 8.8MOHM SM |
2,698 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 10.2 A | 11.2A | 4.7 µH | Shielded | 8.8mOhm Max | - | - | - | Surface Mount | -20°C ~ 100°C | - | 100 kHz | - | 0.508" L x 0.496" W (12.90mm x 12.60mm) | 0.213" (5.40mm) |
|
|
VLP5040LT-3R3NFIXED INDUCTOR SMD |
3,133 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VLS252010HBX-150M-1FIXED IND 15UH SMD |
2,574 |
|
Datasheet |
VLS-HBX-1 | - | Tape & Reel (TR) | Active | - | - | - | - | - | 15 µH | - | - | - | - | - | - | - | - | 1 MHz | - | - | - |
|
VLS252012HBX-220M-1FIXED IND 22UH SMD |
2,470 |
|
Datasheet |
VLS-HBX-1 | - | Tape & Reel (TR) | Active | - | - | - | - | - | 22 µH | - | - | - | - | - | - | - | - | 1 MHz | - | - | - |
|
|
CTX01-14322FIXED INDUCTOR |
3,628 |
|
Datasheet |
- | - | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CTX01-15171FIXED INDUCTOR |
1,731 |
|
Datasheet |
- | - | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CTX01-15195FIXED INDUCTOR |
4,770 |
|
Datasheet |
- | - | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CTX01-15473FIXED INDUCTOR |
1,661 |
|
Datasheet |
- | - | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
