| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-6045T-1R2N-TIND 1.2UH 5.4A 13M |
4,735 |
|
Datasheet |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±30% | 5.4 A | 8.35A | 1.2 µH | Shielded | 13mOhm Max | - | 100MHz | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
RDC20-102K-RC1000UH RADIAL DRUM CORE INDUCTOR |
1,728 |
|
Datasheet |
RDC20 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | ±10% | 1 A | 3.1A | 1 mH | Unshielded | 818mOhm Max | - | - | - | Through Hole | -40°C ~ 85°C | - | 1 kHz | Radial Lead | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|
|
MMD-12EZ-2R2M-V1FIXED IND 2.2UH 20A 5.5 MOHM SMD |
1,439 |
|
Datasheet |
MMD-12EZ-RU | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 20 A | 32A | 2.2 µH | Shielded | 5.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|
MMD-12FD-100M-V1FIXED IND 10UH 15A 17.2 MOHM SMD |
1,010 |
|
Datasheet |
MMD-12FD-RU | Nonstandard | Tape & Box (TB) | Active | Molded | Metal | ±20% | 10 A | 15.5A | 10 µH | Shielded | 17.2mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.252" (6.40mm) |
|
|
MMD-12EZ-100M-V1FIXED IND 10UH 9A 25.5 MOHM SMD |
3,732 |
|
Datasheet |
MMD-12EZ-RU | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 9 A | 16A | 10 µH | Shielded | 25.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
PCHC123H-4R7M-RC4.7H 20% POWER CHOKE HIGH CURREN |
2,630 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10 A | 16A | 4.7 µH | Shielded | 15mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
VTC210-101L-RC100H 15% VRT MOUNT TOROIDAL CHOK |
4,954 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 2.4 A | - | 100 µH | Unshielded | 130mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - |
|
|
VTC210-151L-RC150H 15% VRT MOUNT TOROIDAL CHOK |
3,881 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 3.4 A | - | 150 µH | Unshielded | 62mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - |
|
CC03-2N2K-RC2.2NH 10% CERAMIC CORE CHIP INDU |
3,545 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | - | - | 2.2 nH | Unshielded | - | - | - | - | Surface Mount | -40°C ~ 125°C | - | - | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
|
VTC210-561L-RC560H 15% VRT MOUNT TOROIDAL CHOK |
1,081 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±15% | 1.5 A | - | 560 µH | Unshielded | 300mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - |
|
PCHC1265HP-220M22H 20% POWER CHOKE HIGH CURRENT |
1,771 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9 A | 12A | 22 µH | Shielded | 37mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
CC10-120NG-RC120NH 2% CERAMIC CORE CHIP INDUC |
4,613 |
|
Datasheet |
- | Nonstandard | Tape & Box (TB) | Active | Drum Core, Wirewound | Ceramic | ±2% | 650 mA | - | 120 nH | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | - | Surface Mount | -40°C ~ 125°C | - | 25 MHz | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.087" (2.20mm) |
|
VTCB2213-361360UH, TOROIDAL CHOKE |
4,754 |
|
Datasheet |
- | Radial, Vertical (Open) | Box | Active | Toroidal | - | - | 2.5 A | - | 360 µH | Unshielded | 130mOhm Max | - | - | - | Through Hole | -40°C ~ 125°C | - | 40 kHz | - | 0.866" L x 0.512" W (22.00mm x 13.00mm) | 0.906" (23.00mm) |
|

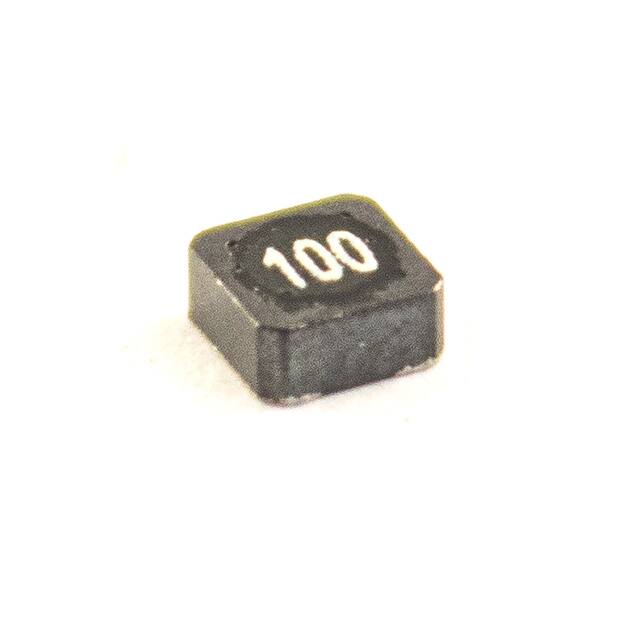

PCS3X15-100M10UH, SHIELDED POWER INDUCTOR |
4,930 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 750 mA | 650mA | 10 µH | Shielded | 440mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
VTC-4486470UH,VERTIVAL TOROIDAL CHOKE |
1,387 |
|
Datasheet |
- | Vertical, 2 PC Pin | Tray | Active | Toroidal | - | ±20% | 1 A | - | 470 µH | Unshielded | 225mOhm Max | - | - | - | Through Hole | -40°C ~ 105°C | - | 10 kHz | Radial | 0.748" Dia x 0.374" L (19.00mm x 9.50mm) | - |
.jpg)
|
PCHC420Z2-1R0M-RC1.00UH, SMD HIGH CURRENT SHIELDE |
3,147 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 4.4 A | 7.5A | 1 µH | Shielded | 27mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MND-06CZE1R8M-XBFIXED IND 1.8UH 14A 10.52 MOHM S |
2,573 |
|
Datasheet |
XB | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 14 A | - | 1.8 µH | Shielded | 10.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
MND-04BZN1R0M-XBFIXED IND 1UH 9.6A 14.6 MOHM SMD |
2,426 |
|
Datasheet |
XB | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 9.6 A | 8.7A | 1 µH | Shielded | 14.6mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
MMD-04BZ-R47M-V1FIXED IND 0.47UH 5.6A 18 MOHM SM |
3,413 |
|
Datasheet |
V1 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 5.6 A | 11.5A | 470 nH | Shielded | 18mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MMD-04BZ-1R5M-V1FIXED IND 1.5UH 5.1A 46 MOHM SMD |
4,786 |
|
Datasheet |
V1 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 5.1 A | 6.1A | 1.5 µH | Shielded | 46.3mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
