| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM30-470J-RC47UH 10% AXIAL MOLDED INDUCTOR |
2,124 |
|
Datasheet |
- | Axial | Bag | Active | Molded | - | ±5% | - | 193mA | 47 µH | Unshielded | 2.75Ohm Max | 55 @ 2.5MHz | 13MHz | - | Through Hole | -55°C ~ 125°C | - | 2.5 MHz | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
AM30-R56K-RC.56UH 10% AXIAL MOLDED INDUCTOR |
2,925 |
|
Datasheet |
- | Axial | Bag | Active | Molded | - | ±10% | - | 1.29A | 560 nH | Unshielded | 135mOhm Max | 50 @ 25MHz | 280MHz | - | Through Hole | -55°C ~ 125°C | - | 25 MHz | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
AM30-R68K-RC.68UH 10% AXIAL MOLDED INDUCTOR |
3,252 |
|
Datasheet |
- | Axial | Bag | Active | Molded | - | ±10% | - | 1.22A | 680 nH | Unshielded | 150mOhm Max | 50 @ 25MHz | 250MHz | - | Through Hole | -55°C ~ 125°C | - | 25 MHz | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
AM30-2R2K-RC2.2UH 10% AXIAL MOLDED INDUCTOR |
2,489 |
|
Datasheet |
- | Axial | Bag | Active | Molded | - | ±10% | - | 485mA | 2.2 µH | Unshielded | 950mOhm Max | 33 @ 7.9MHz | 135MHz | - | Through Hole | -55°C ~ 125°C | - | 7.9 MHz | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
AM30-R33M-RC.33UH 10% AXIAL MOLDED INDUCTOR |
1,686 |
|
Datasheet |
- | Axial | Tape & Reel (TR) | Active | Molded | - | ±20% | - | 1.58A | 330 nH | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | Through Hole | -55°C ~ 125°C | - | 25 MHz | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
RHC50-15-5R0K-RC5UH 10% 15AMP RADIAL HI. CURR. |
3,966 |
|
Datasheet |
- | Radial, Horizontal Cylinder | Box | Active | - | - | ±10% | 15 A | 20A | 5 µH | Unshielded | 8mOhm Max | - | 30MHz | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | Radial, Horizontal Cylinder | 0.725" Dia x 1.375" L (18.42mm x 34.93mm) | - |
|
SQAC2929-501NJ-RC500NH 5% SMD SQ. AIR CORE IND. |
1,771 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 4.3 A | - | 500 nH | Unshielded | 16.5mOhm Max | 180 @ 50MHz | 500MHz | - | Surface Mount | -40°C ~ 125°C | - | 400 MHz | - | 0.551" L x 0.295" W (14.00mm x 7.49mm) | 0.295" (7.49mm) |
|
SQAC1515-47NG-RC47NH 2% SQ. AIR CORE INDUCTOR |
3,958 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±2% | 4.9 A | - | 47 nH | Unshielded | 6.35mOhm Max | 230 @ 400MHz | 1.87GHz | - | Surface Mount | -40°C ~ 125°C | - | 400 MHz | - | 0.160" L x 0.140" W (4.06mm x 3.56mm) | 0.154" (3.91mm) |
|
|
SQAC2929-431NJ-RC430NH 5% SMD SQ. AIR CORE IND. |
1,476 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 4.2 A | - | 430 nH | Unshielded | 15.5mOhm Max | 180 @ 50MHz | 550MHz | - | Surface Mount | -40°C ~ 125°C | - | 400 MHz | - | 0.520" L x 0.295" W (13.21mm x 7.49mm) | 0.295" (7.49mm) |
|
|
RHC50-15-500K-RC50UH 10% 15AMP RADIAL HI.CURR. |
2,507 |
|
Datasheet |
- | Radial, Horizontal Cylinder | Box | Active | - | - | ±10% | 15 A | 9A | 50 µH | Unshielded | 20mOhm Max | - | 4MHz | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | Radial, Horizontal Cylinder | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - |
|
|
RHC50-3-270K-RC27UH 10% 3AMP RADIAL HI. CURR. |
3,107 |
|
Datasheet |
- | Radial, Horizontal Cylinder | Box | Active | - | - | ±10% | 3 A | 15A | 27 µH | Unshielded | 35mOhm Max | - | 8MHz | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | Radial, Horizontal Cylinder | 0.811" Dia x 0.875" L (20.60mm x 22.23mm) | - |
|
|
SQAC1515-47NJ-RC47NH 5% SQ. AIR CORE INDUCTOR |
3,016 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 4.9 A | - | 47 nH | Unshielded | 6.35mOhm Max | 230 @ 400MHz | 1.87GHz | - | Surface Mount | -40°C ~ 125°C | - | 400 MHz | - | 0.160" L x 0.140" W (4.06mm x 3.56mm) | 0.154" (3.91mm) |
|

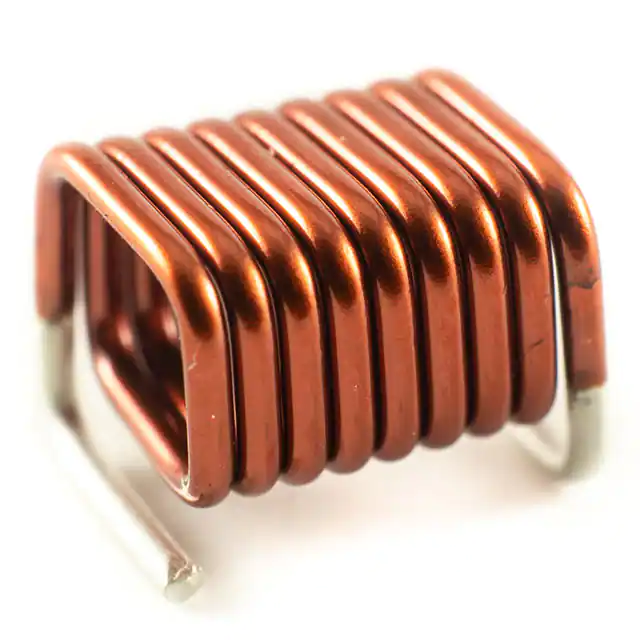

SQAC2222-161NJ-RC160NH 5% SQ. AIR CORE INDUCTOR |
4,761 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 5.7 A | - | 160 nH | Unshielded | 8.25mOhm Max | 140 @ 50MHz | 1GHz | - | Surface Mount | -40°C ~ 125°C | - | 400 MHz | - | 0.290" L x 0.220" W (7.37mm x 5.59mm) | 0.234" (5.95mm) |
|
74479787247AFIXED IND |
1,755 |
|
Datasheet |
- | - | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74479888310FIXED IND |
1,492 |
|
Datasheet |
- | - | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74479888247FIXED IND |
1,198 |
|
Datasheet |
- | - | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AC30-1R0K-RC-AP1.0UH 10% AXIAL COATED INDUCTOR |
4,512 |
|
Datasheet |
AC30 | Axial | Box | Active | - | - | ±10% | 920 mA | - | 1 µH | Unshielded | 170mOhm Max | 45 @ 25.2MHz | 157MHz | - | Through Hole | -20°C ~ 100°C | - | 25.2 MHz | Axial | 0.157" Dia x 0.394" L (3.99mm x 10.01mm) | - |
|
AC35-330K-RC-TR33UH 10% AXIAL COATED INDUCTOR |
1,968 |
|
Datasheet |
AC35 | Axial | Tape & Reel (TR) | Active | - | - | ±10% | 370 mA | - | 33 µH | Shielded | 1.03Ohm Max | 55 @ 2.52MHz | 9.5MHz | - | Through Hole | -55°C ~ 125°C | - | 2.52 MHz | Axial | 0.160" Dia x 0.375" L (4.07mm x 9.53mm) | - |
|
|
AC30-150K-RC-AP15UH 10% AXIAL COATED INDUCTOR |
3,304 |
|
Datasheet |
AC30 | Axial | Box | Active | - | - | ±10% | 460 mA | - | 15 µH | Unshielded | 750mOhm Max | 70 @ 2.52MHz | 20MHz | - | Through Hole | -20°C ~ 100°C | - | 2.52 MHz | Axial | 0.157" Dia x 0.394" L (3.99mm x 10.01mm) | - |
|
|
AC30-470J-RC47UH 5% AXIAL INDUCTOR |
1,616 |
|
Datasheet |
AC30 | Axial | Box | Active | - | - | ±5% | 340 mA | - | 47 µH | Unshielded | 1.3Ohm Max | 45 @ 2.52MHz | 6.3MHz | - | Through Hole | -20°C ~ 100°C | - | 2.52 MHz | Axial | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) | - |
