Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

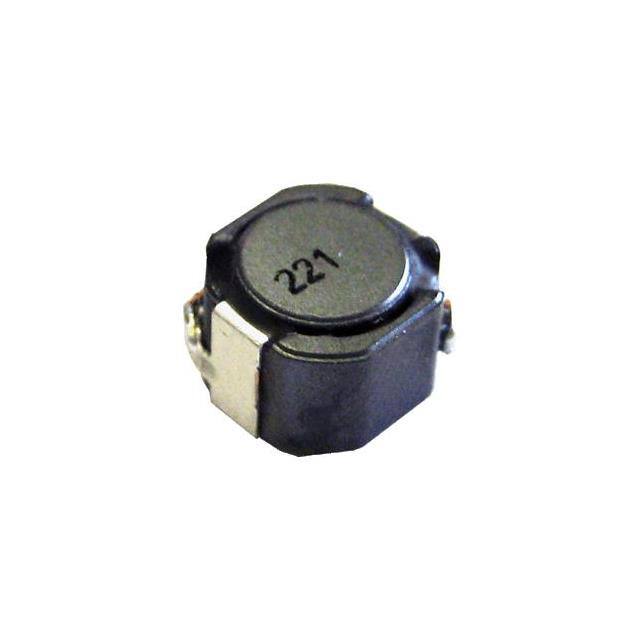

CTPCI7045F-3R3NSMD SHLDED POWER INDUCTOR |
3,889 |
|
Datasheet |
CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 4.8 A | 4.6A | 3.3 µH | Shielded | 20.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
CT814AYF-331KSMD UNSHIELDED POWER INDUCTOR |
1,443 |
|
Datasheet |
ct814ayf | - | Tape & Reel (TR) | Active | - | - | ±10% | - | - | 330 µH | - | 1Ohm | - | - | - | Surface Mount | -30°C ~ 100°C | - | - | - | - | - |
|
|
CT814AYF-820KSMD UNSHIELDED POWER INDUCTOR |
4,107 |
|
Datasheet |
ct814ayf | - | Tape & Reel (TR) | Active | - | - | ±10% | - | - | 820 µH | - | 2.44Ohm | - | - | - | Surface Mount | -30°C ~ 100°C | - | - | - | - | - |
|
|
CT814AYF-151KSMD UNSHIELDED POWER INDUCTOR |
3,205 |
|
Datasheet |
ct814ayf | - | Tape & Reel (TR) | Active | - | - | ±10% | - | - | 150 µH | - | 400mOhm | - | - | - | Surface Mount | -30°C ~ 100°C | - | - | - | - | - |
|
|
CT814AYF-681KSMD UNSHIELDED POWER INDUCTOR |
2,705 |
|
Datasheet |
ct814ayf | - | Tape & Reel (TR) | Active | - | - | ±10% | - | - | 680 µH | - | 1.9Ohm | - | - | - | Surface Mount | -30°C ~ 100°C | - | - | - | - | - |
|
CTSLF1275TF-6R8NSMD SHIELDED POWER INDUCTOR |
2,913 |
|
Datasheet |
CTSLF1275 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 7.2 A | 5.9A | 6.8 µH | Shielded | 13.1mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 1 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
CTPCI6045F-1R0NSMD SHLDED POWER INDUCTOR |
1,450 |
|
Datasheet |
CTPCI6045F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 4.8 A | 6A | 1 µH | Shielded | 14.3mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.193" (4.90mm) |
|
|
CTPCI6045F-221MSMD SHLDED POWER INDUCTOR |
1,511 |
|
Datasheet |
CTPCI6045F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 570 mA | 360mA | 220 µH | Shielded | 864mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.193" (4.90mm) |
|
|
CTPCI6045F-220MSMD SHLDED POWER INDUCTOR |
2,205 |
|
Datasheet |
CTPCI6045F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.8 A | 1.1A | 22 µH | Shielded | 90mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.193" (4.90mm) |
|
|
CTPCI6045F-100MSMD SHLDED POWER INDUCTOR |
1,494 |
|
Datasheet |
CTPCI6045F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.6 A | 1.7A | 10 µH | Shielded | 42mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.193" (4.90mm) |
|
|
CTPCI6045F-6R8NSMD SHLDED POWER INDUCTOR |
3,855 |
|
Datasheet |
CTPCI6045F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 3.1 A | 2A | 6.8 µH | Shielded | 35.1mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.193" (4.90mm) |
|
|
CTSLF1275TF-221MSMD SHIELDED POWER INDUCTOR |
3,063 |
|
Datasheet |
CTSLF1275TF | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.3 A | 1.3A | 220 µH | Shielded | 258mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 1 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
CT814AYF-101KSMD UNSHIELDED POWER INDUCTOR |
3,357 |
|
Datasheet |
ct814ayf | - | Tape & Reel (TR) | Active | - | - | ±10% | - | - | 100 µH | - | 270mOhm | - | - | - | Surface Mount | -30°C ~ 100°C | - | - | - | - | - |
|
|
CT814AYF-220MSMD UNSHIELDED POWER INDUCTOR |
1,020 |
|
Datasheet |
ct814ayf | - | Tape & Reel (TR) | Active | - | - | ±20% | - | - | 22 µH | - | 75mOhm | - | - | - | Surface Mount | -30°C ~ 100°C | - | - | - | - | - |
|
|
CTSLF1275TF-680MSMD SHIELDED POWER INDUCTOR |
2,028 |
|
Datasheet |
CTSLF1275TF | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2 A | 2.4A | 68 µH | Shielded | 77.8mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 1 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
CTPCI6045F-471MSMD SHLDED POWER INDUCTOR |
2,082 |
|
Datasheet |
CTPCI6045F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 410 mA | 250mA | 470 µH | Shielded | 1.56Ohm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.193" (4.90mm) |
|
CTLQH3KSF-152MSMD SHLDED POWER INDUCTOR |
3,326 |
|
Datasheet |
CTLQH3KSF | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 25 mA | - | 1.5 mH | Shielded | 22Ohm Max | - | 1.7MHz | - | Surface Mount | -25°C ~ 85°C | - | 10 kHz | - | 0.142" L x 0.138" W (3.60mm x 3.50mm) | 0.091" (2.30mm) |
|
CTDS1608CF-1051000UH SMD SHIELD POWER INDUCTOR |
1,791 |
|
Datasheet |
CTDS1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 150 mA | - | 1 mH | Shielded | 3.4Ohm Max | 40 @ 100kHz | 2MHz | - | Surface Mount | -40°C ~ 85°C | - | 100 kHz | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
CTDO5022PF-103HC10UH SMD HI-CUR POWER INDUCTOR |
3,387 |
|
Datasheet |
CTDO5022HCF | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10 A | - | 10 µH | Unshielded | 26mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
CTDO5022PF-152HC1.5UH SMD HI-CUR POWER INDUCTOR |
1,385 |
|
Datasheet |
CTDO5022HCF | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 25 A | - | 1.5 µH | Unshielded | 4mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
