Float, Level Sensors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Package | ProdictStatis | Output Type | Output Configuration | Current | Type | Minimum Liquid Specific Gravity | Switch Actuation Level | Mounting Style | Material - Housing & Prism | Operating Temperature | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLC105100SENSOR LEVEL DIGITAL |
1,730 |
|
Datasheet |
- | Bulk | Active | Liquid | Digital | 2.5 mA | - | - | Push-Pull | Threaded | Polysulfone (PES) | -40°C ~ 125°C | 4.5V ~ 15.4V | ||
|
OLS500D3LSENSOR LEVEL PUSH-PULL |
4,707 |
|
Datasheet |
OLS5 | Bulk | Active | Liquid | Push-Pull | 2.5 mA | - | - | Low-Dry | Threaded | Polysulfone (PES) | -25°C ~ 80°C | 5V ~ 15V | ||
|
OLS200D3SHSENSOR LEVEL PUSH-PULL |
1,347 |
|
Datasheet |
OLS2 | Bulk | Active | Liquid | Push-Pull | 2.5 mA | - | - | High-Dry | Threaded | Polysulfone | -25°C ~ 80°C | 5V ~ 15V | ||
|
EX-F1SENSOR LEVEL NPN |
3,612 |
|
Datasheet |
- | Box | Active | Liquid | NPN | 30 mA | - | - | Open Collector | Tie Mount | Polycarbonate | -10°C ~ 55°C | 12 ~ 24V | ||
|

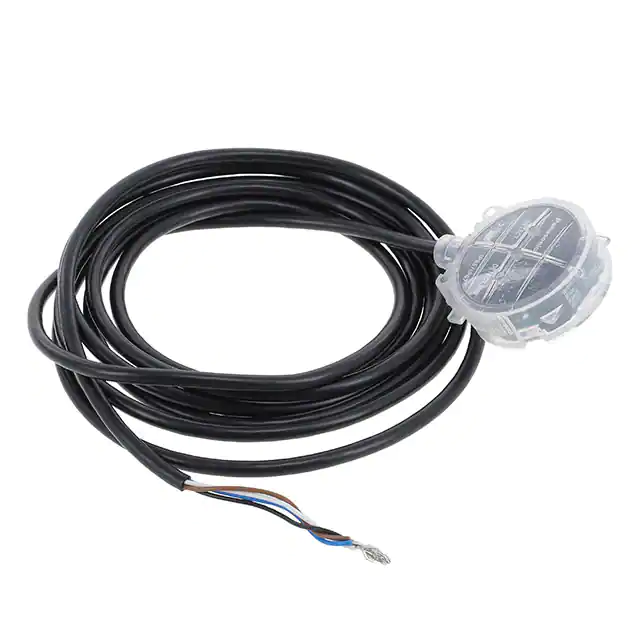

SQ4-A21-PSENSOR LEVEL PNP |
1,022 |
|
Datasheet |
SQ4 | Box | Active | Liquid | - | - | - | - | PNP | Bracket Mount | Polypropylene (PP) | -10°C ~ 55°C | 12 ~ 24V | ||
|
SQ4-A22-NSENSOR LEVEL CHEM LIQUID NPN |
1,274 |
|
Datasheet |
SQ4 | Box | Active | Liquid | - | - | - | - | NPN | Bracket Mount | PFA | -10°C ~ 55°C | 12 ~ 24V | ||
|
PLS-041A-3PPISENSOR LEVEL SWITCH |
2,302 |
|
Datasheet |
- | Bulk | Active | Liquid, Powder | Switch | 1 A | - | 1.614" (41mm) | SPST-NO | Panel Mount, M8 Thread | Polypropylene (PP) | -20°C ~ 80°C | 200V | ||
|
LS03-1A66-PA-500WSENSOR LEVEL SWITCH SINGLE FLOAT |
2,691 |
|
Datasheet |
LS03 | Bulk | Active | Liquid | Switch (Single Float) | 500 mA | - | - | SPST-NC/NO | Panel Mount, M16x2 Thread | Polyamide (PA) | -20°C ~ 90°C | 200V | ||
|
PLS-045B-3VAISENSOR LEVEL SWITCH |
1,548 |
|
Datasheet |
- | Bulk | Active | Liquid, Powder | Switch | 1 A | - | 1.831" (46.5mm) | SPST-NC | Panel Mount, M10 Thread | Stainless Steel | -40°C ~ 125°C | 200V | ||
|
RSF54Y100RCSENSOR LEVEL SWITCH SINGLE FLOAT |
3,996 |
|
Datasheet |
RSF50 | Bag | Active | Liquid | Switch (Single Float) | 600 mA | 0.65 | 1.024" (26mm) | SPST-NC/NO | Panel Mount, M12x1.75 Thread | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
RSF58Y100R1/8SENSOR LEVEL SWITCH SINGLE FLOAT |
2,667 |
|
Datasheet |
RSF50 | Bulk | Active | Liquid | Switch (Single Float) | 600 mA | 0.65 | 1.024" (26mm) | SPST-NC/NO | Male 1/8" (3.18mm) NPT | Polypropylene (PP) | -20°C ~ 100°C | 120VDC, 240VAC | ||
|
RSF86Y100RSENSOR LEVEL SWITCH SINGLE FLOAT |
3,692 |
|
Datasheet |
RSF80 | Bulk | Active | Liquid | Switch (Single Float) | 600 mA | 0.85 | 0.945" (24mm) | SPST-NC/NO | Male 1/2" (12.7mm) NPT | Polyphenylene Sulphide (PPS) | -10°C ~ 120°C | 120VDC, 240VAC | ||
|
RSF46Y100RFSENSOR LEVEL SWITCH SINGLE FLOAT |
1,462 |
|
Datasheet |
RSF40 | Bag | Active | Liquid | Switch (Single Float) | 600 mA | 0.85 | 0.945" (24mm) | SPST-NC/NO | Panel Mount, M16x2 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 120°C | 120VDC, 240VAC | ||
|
PLS-081B-6VAISENSOR LEVEL SWITCH |
2,660 |
|
Datasheet |
- | Bulk | Active | Liquid | Switch | 1.5 A | - | 3.189" (81mm) | SPST-NC | Panel Mount, M10 Thread | Stainless Steel | -40°C ~ 125°C | 200V | ||
|
RSF76Y050TVSENSOR LEVEL SWITCH SINGLE FLOAT |
2,422 |
|
Datasheet |
RSF70 | Bulk | Active | Liquid | Switch (Single Float) | 600 mA | 0.85 | 0.945" (24mm) | SPST-NC/NO | Panel Mount, M16x2 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 120°C | 120VDC, 240VAC | ||
|

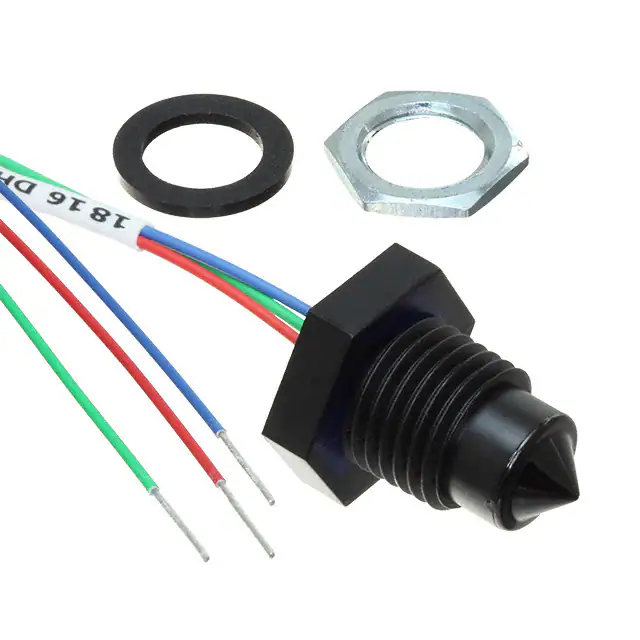

LLC710D3SHSENSOR LEVEL DIGITAL |
3,232 |
|
Datasheet |
Optomax | Bulk | Active | Liquid | Digital | 2.5 mA | - | - | Push-Pull | Threaded | Polysulfone (PES) | -40°C ~ 125°C | 4.5V ~ 15.4V | ||
|
LLC101101SENSOR LEVEL DIGITAL |
2,774 |
|
Datasheet |
- | Bulk | Active | Liquid | Digital | 2.5 mA | - | - | Push-Pull | Threaded | Polysulfone (PES) | -40°C ~ 125°C | 4.5V ~ 15.4V | ||
|
RSF66A25B175PSENSOR LEVEL SWITCH SINGLE FLOAT |
2,228 |
|
Datasheet |
RSF66 | Bulk | Active | Liquid | Switch (2) (Single Float) | 600 mA | 0.85 | 1.181", 6.890" (30mm, 175mm) | SPST-NC/NO | Panel Mount, M16x2 Thread | Polyphenylene Sulphide (PPS) | -10°C ~ 85°C | 120VDC, 240VAC | ||
|
LLG610D3L24-4DSENSOR LEVEL DIGITAL |
2,158 |
|
Datasheet |
Optomax Industrial Glass | Bulk | Active | Liquid | Digital | 7.5 mA | - | - | PNP | Threaded | 316 Stainless Steel | -40°C ~ 125°C | 8V ~ 30V | ||
|
LMT100SENSOR LEVEL DIGITAL |
3,108 |
|
Datasheet |
- | Bulk | Active | Liquid, Powder | Digital | 50 mA | - | - | SPDT | Male 1/2" (12.7mm) NPT | Stainless Steel | -40°C ~ 85°C | 30V |
