Industrial, DIN Rail Power Supplies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Input Type | Number of Outputs | DC Voltage - Input (Min) | DC Voltage - Input (Max) | Voltage - Output 1 | AC Voltage - Input | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Applications | Current - Output (Max) | Voltage - Isolation | Power (Watts) | Efficiency | Operating Temperature | Features | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DDR-15L-3.3DC/DC DIN RAIL SUPPLY 3.3V 15W |
142 |
|
Datasheet |
DDR-15 (15W) | Box | Active | DC | 1 | 18V | 75V | 3.3V | - | - | - | - | - | - | ITE (Commercial) | 4.5A | 4 kV | 15W | 84% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - | |
|
DSP10-15AC/DC DIN RAIL SUPPLY 15V 10W |
232 |
|
Datasheet |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 120V | 370V | 15V | 90 ~ 264 VAC | - | - | - | - | - | ITE (Commercial) | 670mA | 3 kV | 10W | 78% | -25°C ~ 71°C (With Derating) | Universal Input | CE | - | |
|
HDR-100-12AC/DC DIN RAIL SUPPLY 12V 85W |
1,288 |
|
Datasheet |
HDR-100 (100W) | Box | Active | AC or DC | 1 | 120V | 370V | 12V | 85 ~ 264 VAC | - | - | - | - | - | ITE (Commercial) | 7.1A | 4 kV | 85W | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - | |
|
DDR-30L-5DC/DC DIN RAIL SUPPLY 5V 30W |
329 |
|
Datasheet |
DDR-30 (30W) | Box | Active | DC | 1 | 18V | 75V | 5V | - | - | - | - | - | - | ITE (Commercial) | 6A | 4 kV | 30W | 86% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - | |
|
RPS120-24-CUAC/DC DIN RAIL SUPPLY 24V 120W |
245 |
|
Datasheet |
RPS120 (120W) | Box | Active | AC or DC | 1 | 127V | 370V | 24V | 90 ~ 264 VAC | - | - | - | - | - | Industrial, ITE (Commercial) | 5A | 4 kV | 120W | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus | 62368-1; UL 508 | |
|

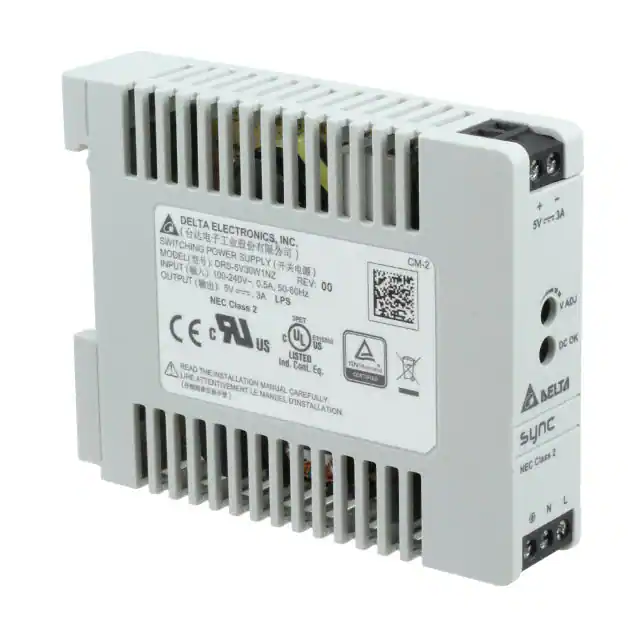

DRS-5V30W1NZAC/DC DIN RAIL SUPPLY 5V 30W |
293 |
|
Datasheet |
Sync (30W) | Box | Active | AC | 1 | - | - | 5V | 85 ~ 264 VAC | - | - | - | - | - | ITE (Commercial) | 3A | 3 kV | 30W | 79% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB Scheme, CE, EAC, EN, NEC Class 2, SIQ, UL | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3; 61000-6-4; 61204-3; 62368-1 | |
|
|
HDR-100-12NAC/DC DIN RAIL SUPPLY 12V 90W |
176 |
|
Datasheet |
HDR-100 (100W) | Box | Active | AC or DC | 1 | 120V | 370V | 12V | 85 ~ 264 VAC | - | - | - | - | - | ITE (Commercial) | 7.5A | 4 kV | 90W | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - | |
|
SDR-75-48AC/DC DIN RAIL SUPPLY 48V 77W |
4,640 |
|
Datasheet |
SDR-75 (75W) | Box | Active | AC or DC | 1 | 120V | 370V | 48V | 85 ~ 264 VAC | - | - | - | - | - | Industrial, ITE (Commercial) | 1.6A | 3 kV | 77W | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cURus, TUV | - | |
|
DRL30-24-1AC/DC DIN RAIL SUPPLY 24V 30W |
148 |
|
Datasheet |
DRL (10-100W) | Bulk | Active | AC or DC | 1 | 120V | 373V | 24V | 85 ~ 264 VAC | - | - | - | - | - | Hazardous Locations, ITE (Commercial) | 1.25A | 3 kV | 30W | 90% | -20°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | CE | - | |
|
|
HDR-100-15NAC/DC DIN RAIL SUPPLY 15V 98W |
413 |
|
Datasheet |
HDR-100 (100W) | Box | Active | AC or DC | 1 | 120V | 370V | 15V | 85 ~ 264 VAC | - | - | - | - | - | ITE (Commercial) | 6.5A | 4 kV | 98W | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - | |
|
DDR-60G-15DC/DC DIN RAIL SUPPLY 15V 60W |
141 |
|
Datasheet |
DDR-60 (60W) | Box | Active | DC | 1 | 9V | 36V | 15V | - | - | - | - | - | - | ITE (Commercial) | 4A | 4 kV | 60W | 91% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - | |
|
DRL60-12-1AC/DC DIN RAIL SUPPLY 12V 60W |
422 |
|
Datasheet |
DRL (10-100W) | Bulk | Active | AC or DC | 1 | 120V | 373V | 12V | 85 ~ 264 VAC | - | - | - | - | - | Hazardous Locations, ITE (Commercial) | 4.5A | 3 kV | 60W | 87% | -20°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | CE | - | |
|

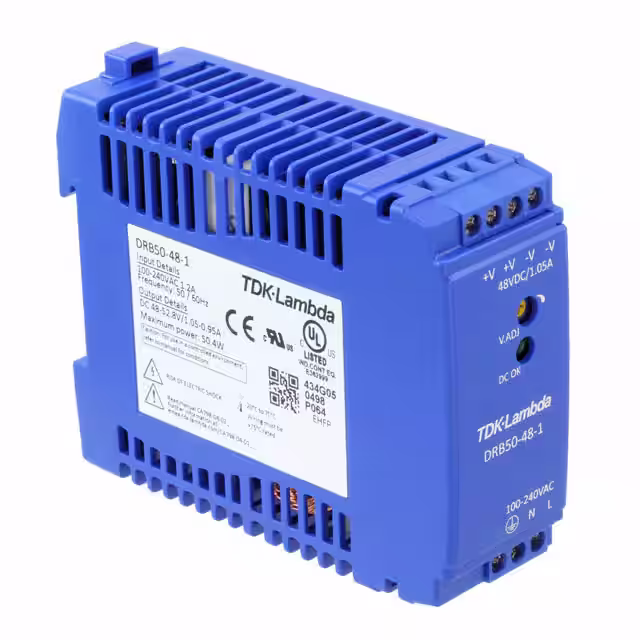

DRB50-48-1AC/DC DIN RAIL SUPPLY 48V 50W |
118 |
|
Datasheet |
DRB (15-100W) | Bulk | Active | AC or DC | 1 | 120V | 373V | 48V | 85 ~ 264 VAC | - | - | - | - | - | Hazardous Locations, Industrial, ITE (Commercial) | 1.05A | 3 kV | 50W | 91% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus | - | |
|
DNR30US05AC/DC DIN RAIL SUPPLY 5V 30W |
172 |
|
Datasheet |
DNR (30W) | Box | Active | AC or DC | 1 | 90V | 375V | 5V | 90 ~ 264 VAC | - | - | - | - | - | Hazardous Locations, Industrial, ITE (Commercial) | 6A | 3 kV | 30W | 79% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE | 62368-1 | |
|
MDR-100-48AC/DC DIN RAIL SUPPLY 48V 96W |
103 |
|
Datasheet |
MDR-100 (96W) | Box | Active | AC or DC | 1 | 120V | 370V | 48V | 85 ~ 264 VAC | - | - | - | - | - | Industrial, ITE (Commercial) | 2A | 3 kV | 96W | 87% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CCC, cURus, TUV | - | |
|
DSP30-12AC/DC DIN RAIL SUPPLY 12V 30W |
143 |
|
Datasheet |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 120V | 370V | 12V | 90 ~ 264 VAC | - | - | - | - | - | ITE (Commercial) | 2.1A | 3 kV | 30W | 82% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | CE | - | |
|

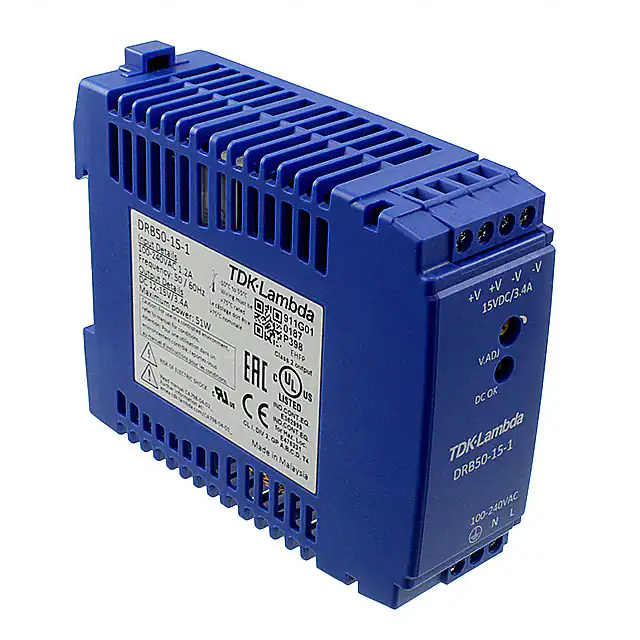

DRB50-15-1AC/DC DIN RAIL SUPPLY 15V 51W |
230 |
|
Datasheet |
DRB (15-100W) | Bulk | Active | AC or DC | 1 | 120V | 373V | 15V | 85 ~ 264 VAC | - | - | - | - | - | Hazardous Locations, Industrial, ITE (Commercial) | 3.4A | 3 kV | 51W | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus | - | |
|
RPS240-48-CUAC/DC DIN RAIL SUPPLY 48V 240W |
199 |
|
Datasheet |
RPS240 (240W) | Box | Active | AC or DC | 1 | 127V | 370V | 48V | 90 ~ 264 VAC | - | - | - | - | - | Industrial, ITE (Commercial) | 5A | 4 kV | 240W | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus | 62368-1; UL 508 | |
|
RPS240-24-CUAC/DC DIN RAIL SUPPLY 24V 240W |
163 |
|
Datasheet |
RPS240 (240W) | Box | Active | AC or DC | 1 | 127V | 370V | 24V | 90 ~ 264 VAC | - | - | - | - | - | Industrial, ITE (Commercial) | 10A | 4 kV | 240W | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus | 62368-1; UL 508 | |
|
RPS240-12-CUAC/DC DIN RAIL SUPPLY 12V 216W |
144 |
|
Datasheet |
RPS240 (240W) | Box | Active | AC or DC | 1 | 127V | 370V | 12V | 90 ~ 264 VAC | - | - | - | - | - | Industrial, ITE (Commercial) | 18A | 4 kV | 216W | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus | 62368-1; UL 508 |
