Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Encoder Type | Output Type | Voltage - Supply | Actuator Type | Detent | Pulses per Revolution | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01046-090ROTARY ENCODR INCREMENTAL 100PPR |
4,571 |
|
Datasheet |
H20 | Box | Active | Incremental | Quadrature (Incremental) | - | Shaft | No | 100 | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
01079-418ENCODER ROTARY SPEC |
4,841 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
01079-004ROTARY ENCODER ABSOLUTE 4096PPR |
1,492 |
|
Datasheet |
H25 | Box | Active | Absolute | Gray Code (Absolute) | 5V ~ 28V | Shaft | No | 4096 | No | Chassis Mount | User Selectable | Connector | 200M |
|

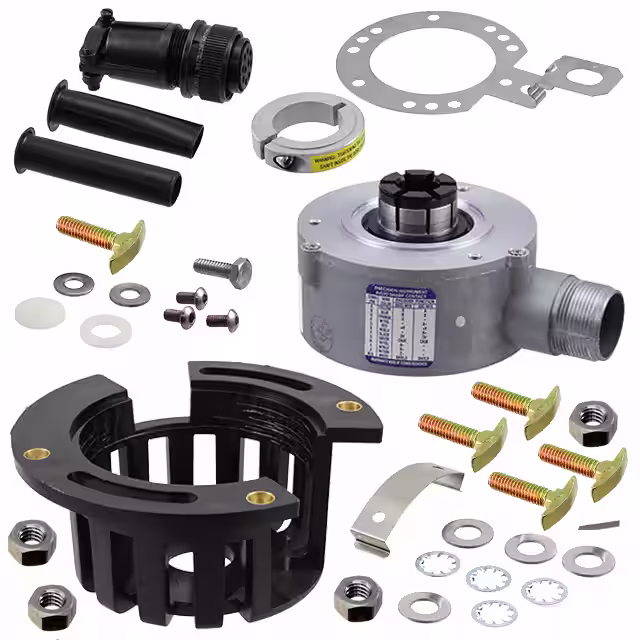

01070-413ENCODER ROTARY 1024PPR 28V SPEC |
3,938 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
HEDC-5560-E14ROTARY ENCODER OPTICAL 1024PPR |
2,212 |
|
Datasheet |
- | Bulk | Active | Optical | Quadrature with Index (Incremental) | 4.5V ~ 5.5V | Codewheel Not Included | No | 1024 | No | Chassis Mount | User Selectable | Connector | - |
|
|
HEDC-5570-A14ROTARY ENCODER OPTICAL 1024PPR |
2,250 |
|
Datasheet |
- | Bulk | Active | Optical | Quadrature with Index (Incremental) | 4.5V ~ 5.5V | Codewheel Not Included | No | 1024 | No | Chassis Mount | User Selectable | Connector | - |
|

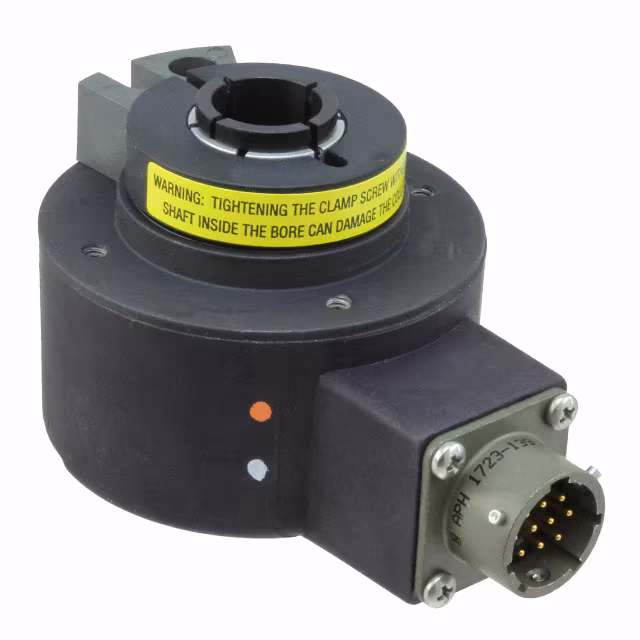

01072-314ROTARY ENCODER OPTICAL 1024PPR |
3,612 |
|
Datasheet |
HS25 | Box | Active | Optical | Quadrature with Index (Incremental) | 5V ~ 15V | Hole for Shaft | No | 1024 | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|
01005-1599ROTARY ENCODER OPTICAL 10000PPR |
2,310 |
|
Datasheet |
H25 | Box | Active | Optical | Quadrature with Index (Incremental) | 5V ~ 28V | Shaft | No | 10000 | No | Chassis Mount | User Selectable | Connector | 200M |
|
01039-2382ROTARY ENCODR INCREMENTAL 150PPR |
3,716 |
|
Datasheet |
H20 | Bulk | Active | Incremental | Quadrature (Incremental) | 5V | Hole for Shaft | No | 150 | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
62SG22-M9-020CROTARY ENCODER OPT 16PPR 10" |
2,649 |
|
Datasheet |
62SG | Bulk | Active | Incremental | Gray Code (Absolute) | 5V | 6.32mm Dia Flatted End | Yes | 16 | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
01075-125ENCODER ROTARY |
1,100 |
|
Datasheet |
H25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 5V ~ 28V | Shaft | No | 2048 | No | Servo Mount | User Selectable | Cable | 200M |
|
|
01079-295ROTARY ENCODER OPTICAL |
4,550 |
|
Datasheet |
- | Box | Active | Optical | Gray Code (Absolute) | 5V ~ 28V | - | - | - | - | Servo Mount | - | - | - |
|
|
01036-018ROTARY ENCODER OPTICAL 8PPR |
2,453 |
|
Datasheet |
- | Bulk | Active | Optical | Gray Code (Absolute) | 5V ~ 28V | Shaft | No | 8 | No | Chassis Mount | User Selectable | Terminal Block, Straight - Push In | - |
|
|
01018-917ROTARY ENCODER OPTICAL 8PPR |
1,614 |
|
Datasheet |
H40 | Bulk | Active | Optical | Binary (Absolute), Quadrature with Index (Incremental) | 5V ~ 28V | Shaft | No | 8 | No | Chassis Mount | User Selectable | Terminal Block, Straight - Push In | - |
|
|
01036-222ROTARY ENCODER OPTICAL 240PPR |
3,713 |
|
Datasheet |
H38 | Box | Active | Optical | Quadrature (Incremental) | 5V ~ 28V | Shaft | No | 240 | No | Chassis Mount | User Selectable | Terminal Block, Straight - Push In | 200M |
|
|
01018-329ENCODER ROTARY 28V |
4,724 |
|
Datasheet |
H40 | Bulk | Active | Absolute | Gray Code (Absolute) | 5V ~ 28V | Shaft | No | - | No | Chassis Mount | User Selectable | Cable | - |
|
|
01090-132ROTARY ENCODER ABSOLUTE 4096PPR |
3,479 |
|
Datasheet |
HMT25 | Bulk | Active | Absolute | - | 5V ~ 28V | Shaft | No | 4096 | No | Servo Mount | User Selectable | Connector | 10B |
|
01070-173ROTARY ENCODER OPTICAL 1000PPR |
2,224 |
|
Datasheet |
XHS35 | Box | Active | Optical | Quadrature with Index (Incremental) | 5V ~ 28V | Hole for Shaft | No | 1000 | No | Chassis Mount | User Selectable | - | 7.5B |
|
|
01031-043ROTARY ENCODER OPTICAL 60PPR |
3,686 |
|
Datasheet |
E25 | Box | Active | Optical | Quadrature with Index (Incremental) | 5V ~ 28V | Hole for Shaft | No | 60 | No | Servo Mount | User Selectable | Cable | 1B |
|
01072-550ENCODER ROTARY 1024PPR 28V SPEC |
2,757 |
|
Datasheet |
HS25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 5V ~ 28V | Hole for Shaft | No | 1024 | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
