Inrush Current Limiters (ICL)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | R @ 25°C | Tolerance | R @ Current | Diameter | Lead Spacing | Current - Steady State Max | Grade | Qualification | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS32 2R025ICL 2 OHM 25% 25A 31MM |
1,864 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 2 Ohms | ±25% | 20 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | 25 A | - | - | UL |
|
|
MS32 1R036ICL 1 OHM 25% 36A 31MM |
175 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 1 Ohms | ±25% | 10 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | 36 A | - | - | - |
|
|
MS32 7R015ICL 7 OHM 20% 15A 31MM |
124 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 7 Ohms | ±20% | 40 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | 15 A | - | - | UL |
|
AS32 1R036ICL 1 OHM 25% 36A 30MM |
117 |
|
Datasheet |
AS | Bulk | Active | 1 Ohms | ±25% | 7 mOhms | 1.181" (30.00mm) | 0.673" (17.10mm) | 36 A | - | - | UL |
|
AS32 0R536ICL 500 MOHM 25% 36A 29MM |
110 |
|
Datasheet |
AS | Bulk | Active | 500 mOhms | ±25% | 8 mOhms | 1.142" (29.00mm) | 0.673" (17.10mm) | 36 A | - | - | CSA |
|

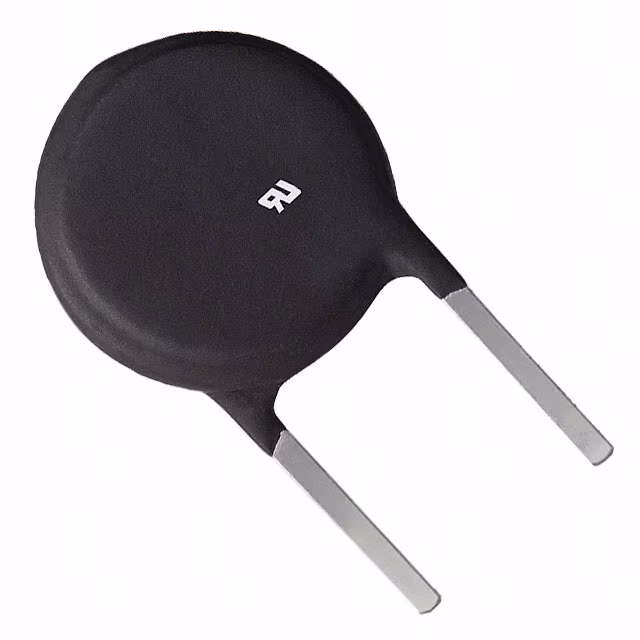

AS32 5R020ICL 5 OHM 25% 20A 30MM |
588 |
|
Datasheet |
AS | Bulk | Active | 5 Ohms | ±25% | 25 mOhms | 1.181" (30.00mm) | 0.673" (17.10mm) | 20 A | - | - | UL |
|
AS32 10015ICL 10 OHM 25% 15A 30MM |
407 |
|
Datasheet |
AS | Bulk | Active | 10 Ohms | ±25% | 25 mOhms | 1.181" (30.00mm) | 0.673" (17.10mm) | 15 A | - | - | UL |
|
MS35 3R030ICL 3 OHM 30A 35MM |
1,359 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 3 Ohms | - | 30 mOhms | 1.378" (35.00mm) | 0.748" (19.00mm) | 30 A | - | - | - |
|
|
MS35 2R035ICL 2 OHM 35A 35MM |
4,953 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 2 Ohms | - | 20 mOhms | 1.378" (35.00mm) | 0.748" (19.00mm) | 35 A | - | - | - |
|
ICL101D07MIBICL 10 OHM 20% 2A 8.5MM |
2,690 |
|
Datasheet |
ICL | Bulk | Active | 10 Ohms | ±20% | - | 0.335" (8.50mm) | 0.197" (5.00mm) | 2 A | - | - | - |
|
|
ICL300D07MIBICL 3 OHM 20% 3A 8.5MM |
1,531 |
|
Datasheet |
ICL | Bulk | Active | 3 Ohms | ±20% | - | 0.335" (8.50mm) | 0.197" (5.00mm) | 3 A | - | - | - |
|
|
ICL500D07MIBICL 5 OHM 20% 3A 8.5MM |
1,502 |
|
Datasheet |
ICL | Bulk | Active | 5 Ohms | ±20% | - | 0.335" (8.50mm) | 0.197" (5.00mm) | 3 A | - | - | - |
|
|
ICL500D09MIBICL 5 OHM 20% 3.5A 9.5MM |
1,342 |
|
Datasheet |
ICL | Bulk | Active | 5 Ohms | ±20% | - | 0.374" (9.50mm) | 0.197" (5.00mm) | 3.5 A | - | - | - |
|
|
ICL101D11MIBICL 10 OHM 20% 3A 12MM |
1,675 |
|
Datasheet |
ICL | Bulk | Active | 10 Ohms | ±20% | - | 0.472" (12.00mm) | 0.197" (5.00mm) | 3 A | - | - | - |
|
|
ICL250D11MIBICL 2.5 OHM 20% 5.5A 12MM |
1,478 |
|
Datasheet |
ICL | Bulk | Active | 2.5 Ohms | ±20% | - | 0.472" (12.00mm) | 0.197" (5.00mm) | 5.5 A | - | - | - |
|
|
ICL500D11MIBICL 5 OHM 20% 4.5A 12MM |
1,013 |
|
Datasheet |
ICL | Bulk | Active | 5 Ohms | ±20% | - | 0.472" (12.00mm) | 0.197" (5.00mm) | 4.5 A | - | - | - |
|
MF72-080D11ICL 80 OHM 20% 1.2A 13MM |
2,915 |
|
Datasheet |
MF72 | Bulk | Active | 80 Ohms | ±20% | 1.656 Ohms | 0.512" (13.00mm) | 0.295" (7.50mm) | 1.2 A | - | - | - |
|
MF72-012D7ICL 12 OHM 20% 1A 9MM |
3,044 |
|
Datasheet |
MF72 | Bulk | Active | 12 Ohms | ±20% | 816 mOhms | 0.354" (9.00mm) | 0.197" (5.00mm) | 1 A | - | - | - |
|
B57153S0160M000ICL 16 OHM 20% 3A 8.5MM |
2,543 |
|
Datasheet |
S153 | Bulk | Active | 16 Ohms | ±20% | - | 0.335" (8.50mm) | 0.197" (5.00mm) | 3 A | - | - | - |
|
MF72-004D11ICL 4 OHM 20% 4A 13MM |
7,388 |
|
Datasheet |
MF72 | Bulk | Active | 4 Ohms | ±20% | 150 mOhms | 0.512" (13.00mm) | 0.295" (7.50mm) | 4 A | - | - | - |
