Inrush Current Limiters (ICL)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | R @ 25°C | Tolerance | R @ Current | Diameter | Lead Spacing | Current - Steady State Max | Grade | Qualification | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
N25SP005L-FICL 5 OHM 15% 12A 25MM |
8,656 |
|
Datasheet |
SP | Box | Active | 5 Ohms | ±15% | 66 mOhms | 0.984" (25.00mm) | 0.295" (7.50mm) | 12 A | - | - | TUV, UL |
|
|
N25SP018L-FICL 18 OHM 15% 5.5A 25MM |
3,702 |
|
Datasheet |
SP | Box | Active | 18 Ohms | ±15% | 237 mOhms | 0.984" (25.00mm) | 0.295" (7.50mm) | 5.5 A | - | - | TUV, UL |
|
|
N25SP002LICL 2 OHM 15% 15A 25MM |
6,544 |
|
Datasheet |
SP | Box | Active | 2 Ohms | ±15% | 49 mOhms | 0.984" (25.00mm) | 0.295" (7.50mm) | 15 A | - | - | TUV, UL |
|
|
N25SP010L-FICL 10 OHM 15% 8A 25MM |
3,613 |
|
Datasheet |
SP | Box | Active | 10 Ohms | ±15% | 118 mOhms | 0.984" (25.00mm) | 0.295" (7.50mm) | 8 A | - | - | TUV, UL |
|
|
N25SP008LICL 8 OHM 15% 9A 25MM |
4,432 |
|
Datasheet |
SP | Box | Active | 8 Ohms | ±15% | 95 mOhms | 0.984" (25.00mm) | 0.295" (7.50mm) | 9 A | - | - | TUV, UL |
|
MS12 15102-AICL 150 OHM 25% 2A 13.5MM |
9,323 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 150 Ohms | ±25% | 1.04 Ohms | 0.531" (13.50mm) | 0.307" (7.80mm) | 2 A | - | - | UR |
|
|
MS12 15102-BICL 150 OHM 25% 2A 13.5MM |
7,318 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 150 Ohms | ±25% | 1.04 Ohms | 0.531" (13.50mm) | 0.307" (7.80mm) | 2 A | - | - | - |
|
|
ICL1010003-01ICL 10 OHM 20% 3A 10.16MM |
6,624 |
|
Datasheet |
- | Bulk | Obsolete | 10 Ohms | ±20% | 400 mOhms | 0.400" (10.16mm) | 0.310" (7.87mm) | 3 A | - | - | - |
|
MS15 40004-AICL 40 OHM 25% 4.1A 17MM |
9,166 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 40 Ohms | ±25% | 280 mOhms | 0.670" (17.00mm) | 0.307" (7.80mm) | 4.1 A | - | - | UR |
|
|
MS15 40004-BICL 40 OHM 25% 4.1A 17MM |
7,959 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 40 Ohms | ±25% | 280 mOhms | 0.670" (17.00mm) | 0.307" (7.80mm) | 4.1 A | - | - | UR |
|
|
MS15 66003ICL 66 OHM 25% 3.5A 15MM |
2,298 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - |
|
ST2R515BICL 2.5 OHM 20% 15A 30.5MM |
9,613 |
|
Datasheet |
ST | Bulk | Obsolete | 2.5 Ohms | ±20% | 30 mOhms | 1.201" (30.50mm) | 0.310" (7.87mm) | 15 A | - | - | - |
|
|
ST2R510BICL 2.5 OHM 20% 10A 30.5MM |
7,173 |
|
Datasheet |
ST | Bulk | Obsolete | 2.5 Ohms | ±20% | 40 mOhms | 1.201" (30.50mm) | 0.310" (7.87mm) | 10 A | - | - | - |
|

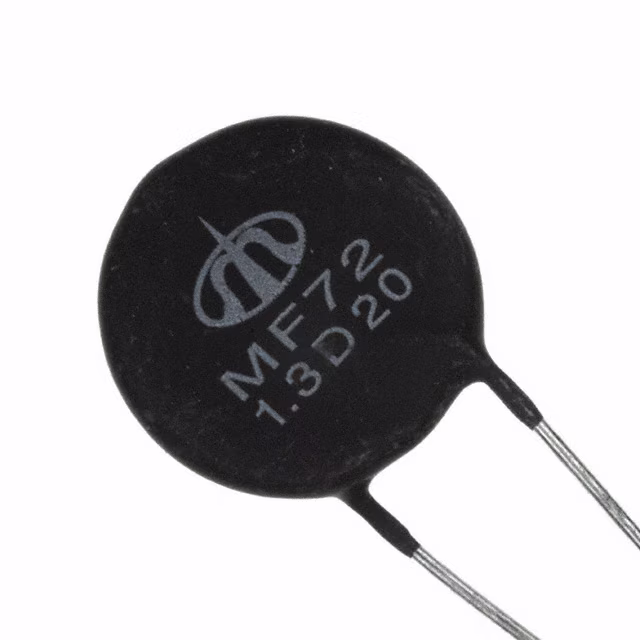

MF72-001.3D20ICL 1.3 OHM 20% 9A 22.5MM |
5,024 |
|
Datasheet |
MF72 | Bulk | Active | 1.3 Ohms | ±20% | 37 mOhms | 0.886" (22.50mm) | 0.394" (10.00mm) | 9 A | - | - | - |
|

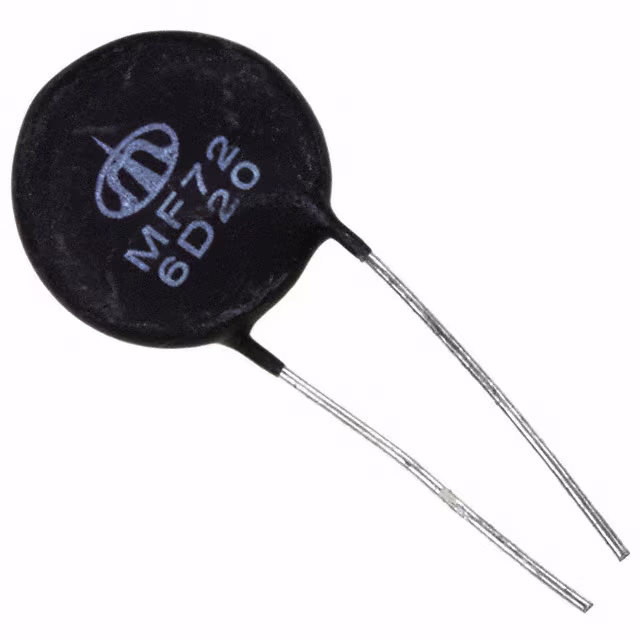

MF72-006D20ICL 6 OHM 20% 6A 22.5MM |
9,605 |
|
Datasheet |
MF72 | Bulk | Active | 6 Ohms | ±20% | 113 mOhms | 0.886" (22.50mm) | 0.394" (10.00mm) | 6 A | - | - | - |
|
MF72-008D20ICL 8 OHM 20% 6A 22.5MM |
6,950 |
|
Datasheet |
MF72 | Bulk | Active | 8 Ohms | ±20% | 142 mOhms | 0.886" (22.50mm) | 0.394" (10.00mm) | 6 A | - | - | - |
|

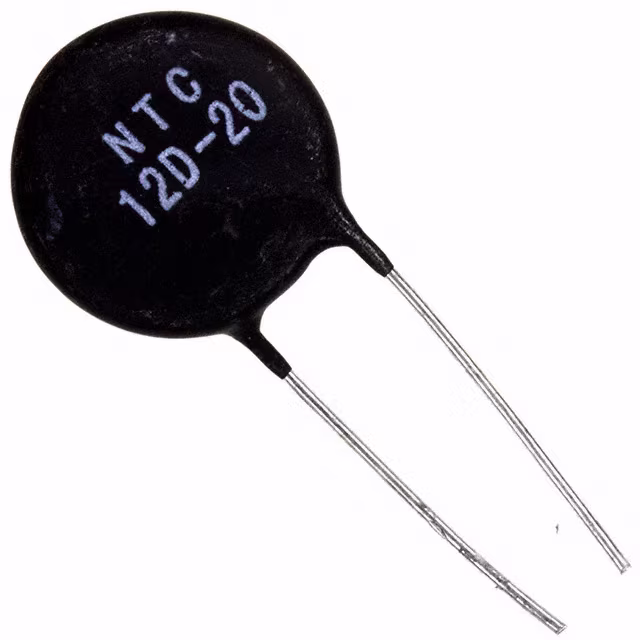

MF72-012D20ICL 12 OHM 20% 5A 22.5MM |
3,936 |
|
Datasheet |
MF72 | Bulk | Active | 12 Ohms | ±20% | 195 mOhms | 0.886" (22.50mm) | 0.394" (10.00mm) | 5 A | - | - | - |
|
|
MS15 30004-AICL 30 OHM 25% 4.2A 17MM |
4,831 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 30 Ohms | ±25% | 230 mOhms | 0.670" (17.00mm) | 0.307" (7.80mm) | 4.2 A | - | - | UR |
|
MS15 15004-BICL 15 OHM 25% 4.5A 15MM |
2,345 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 15 Ohms | ±25% | 200 mOhms | 0.591" (15.00mm) | 0.307" (7.80mm) | 4.5 A | - | - | - |
|
|
MS15 30004-BICL 30 OHM 25% 4.2A 17MM |
3,236 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 30 Ohms | ±25% | 230 mOhms | 0.670" (17.00mm) | 0.307" (7.80mm) | 4.2 A | - | - | UR |
