Signal Buffers, Repeaters, Splitters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Applications | Output | Data Rate (Max) | Number of Channels | Input | Delay Time | Signal Conditioning | Capacitance - Input | Voltage - Supply | Current - Supply | Mounting Style | Operating Temperature | Qualification | Grade | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN75LVCP412CDRTJTIC REDRIVER SATA 2CH 3GBPS 20QFN |
245 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | SATA | VML | 3Gbps | 2 | VML | 320ps | Input Equalization, Output Pre-Emphasis | - | 3V ~ 3.6V | 56mA | Surface Mount | 0°C ~ 85°C | - | - | 20-QFN (4x4) |
|
NB7NPQ1004MMTTWGIC REDRIVER 2-PORT LIN 42WQFN |
4,965 |
|
Datasheet |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Buffer, ReDriver | USB | Differential | 10Gbps | 4 | CML | 2ns | Input Equalization | - | 3V ~ 3.6V | 225mA | Surface Mount | -40°C ~ 85°C (TA) | - | - | 42-WQFN (3.5x9) |
|
PI3EQX7742AIZHEXIC REDRIVER USB 3.0 42TQFN |
9,627 |
|
Datasheet |
ReDriver™ | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | USB 3.0 | CML | 5Gbps | 4 | CML | 305ps | Input Equalization, Output De-Emphasis | - | 3V ~ 3.6V | 250mA | Surface Mount | -40°C ~ 85°C | - | - | 42-TQFN (9x3.5) |
|

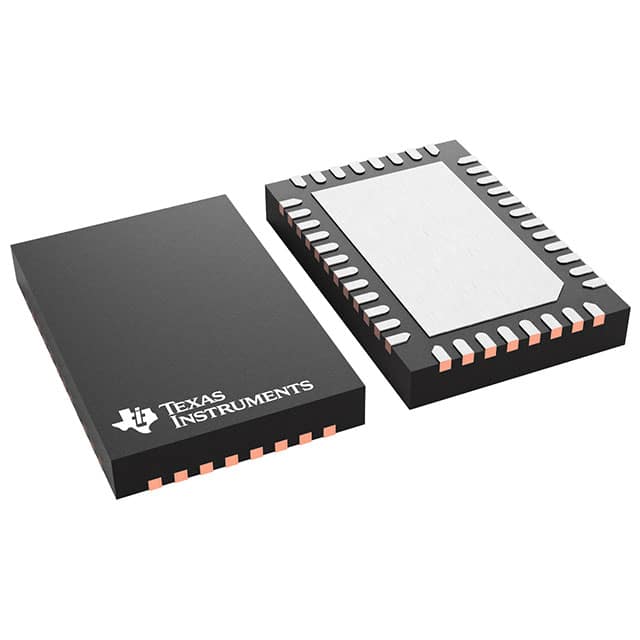

TDP0604RNQRDP++ 6-GBPS HDMI 2.0 REDRIVER |
2,980 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | DisplayPort, HDMI | Differential | 6Gbps | 4 | Differential | 220ps | Input Equalization, Output Pre-Emphasis | 12 pF | 3V ~ 3.6V, 3.135V ~ 3.465V | 16µA | Surface Mount | 0°C ~ 70°C (TA) | - | - | 40-WQFN (6x4) |
|
|
PI2EQX6812ZHEXIC REDRIVER 6.5GBPS 4CHAN 42TQFN |
3,309 |
|
Datasheet |
ReDriver™ | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | SAS, SATA | CML | 6.5Gbps | 4 | CML | - | Input Equalization, Output De-Emphasis | - | 1.2V | - | Surface Mount | - | - | - | 42-TQFN (9x3.5) |
|
PI3DPX8112ZLDEXPCIE EQX W-QFN3060-40 T&R 3.5K |
285 |
|
Datasheet |
ReDriver™ | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | DisplayPort | DisplayPort | 13.5Gbps | 4 | DisplayPort | - | Input Equalization, Output De-Emphasis | - | 3V ~ 3.6V | - | Surface Mount | -40°C ~ 85°C | - | - | 40-TQFN (3x6) |
|
SN65LVDS105DIC MULTIPLEXER 1CH 16SOIC |
209 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Active | Buffer, Multiplexer | - | LVDS | 400Mbps | 1 x 1:4 | LVTTL | 2.2ns | - | 3 pF | 3V ~ 3.6V | 23mA | Surface Mount | -40°C ~ 85°C | - | - | 16-SOIC |
|
LTC4312CDE#PBFIC MULTIPLEXER I2C HOTSWAP 14DFN |
1,012 |
|
Datasheet |
- | 14-WFDFN Exposed Pad | Tube | Active | Buffer, Multiplexer | I2C - Hotswap | 2-Wire Bus | 400kHz | 1 x 1:2 | 2-Wire Bus | - | - | 20 pF | 2.9V ~ 5.5V | 7.3mA | Surface Mount | 0°C ~ 70°C | - | - | 14-DFN (4x3) |
|
TUSB546A-DCIRNQT5GBPS TYPEC DP ALT MODE REDRIVER |
1,039 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | USB | Differential | 8.1Gbps | 2 | Differential | - | Input Equalization, Output De-Emphasis | 10 pF | 3V ~ 3.6V | - | Surface Mount | 0°C ~ 70°C | - | - | 40-WQFN (6x4) |
|
|
PI3EQX1004ZHEXUSB3 EQX V-QFN3590-42 T&R 3.5K |
3,465 |
|
Datasheet |
ReDriver™ | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | USB 3.0 | CML | 10Gbps | 4 | CML | - | Input Equalization | - | 3V ~ 3.6V | - | Surface Mount | 125°C (TJ) | - | - | 42-TQFN (9x3.5) |
|
|
PI3HDX12212ZLDEXPCIE EQX W-QFN3060-40 T&R 3.5K |
440 |
|
Datasheet |
ReDriver™ | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | HDMI | - | 12Gbps | 4 | - | - | Input Equalization, Output De-Emphasis | - | 3V ~ 3.6V | - | Surface Mount | -40°C ~ 85°C | - | - | 40-TQFN (3x6) |
|
TUSB2E22YCGTTUSB2E22YCGT |
481 |
|
Datasheet |
- | 25-XFBGA, DSBGA | Tape & Reel (TR) | Active | ReDriver | USB | - | - | 2 | - | - | - | - | 3V ~ 3.6V | - | Surface Mount | -20°C ~ 85°C (TA) | - | - | 25-DSBGA (2x2) |
|
LTC1694-1CS5#TRPBFIC ACCELERATOR I2C 1CH TSOT23-5 |
7,290 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Buffer, Accelerator | I2C | 2-Wire Bus | 100kHz | 1 | 2-Wire Bus | - | - | - | 2.7V ~ 6V | 60µA | Surface Mount | 0°C ~ 70°C | - | - | TSOT-23-5 |
|
PI3EQX16000ZHEXPCIE EQX V-QFN3590-42 |
3,240 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TUSB544RNQTUSB-C 5BPS MULTI-PROT LINEAR RED |
1,235 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | USB Type C | - | 8.1Gbps | 4 | - | 10.0ns | Input Equalization, Output De-Emphasis | 10 pF | 3V ~ 3.6V | - | Surface Mount | 0°C ~ 70°C (TA) | - | - | 40-WQFN (6x4) |
|
|
TUSB544IRNQTIC REDRIVER USB TYPE C 40WQFN |
183 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | USB Type C | - | 8.1Gbps | 4 | - | 10.0ns | Input Equalization, Output De-Emphasis | 10 pF | 3V ~ 3.6V | - | Surface Mount | -40°C ~ 85°C | - | - | 40-WQFN (6x4) |
|
TUSB217ARWBRQ1USB 2.0 HIGH-SPEED SIGNAL CONDIT |
8,743 |
|
Datasheet |
- | 12-XFQFN | Tape & Reel (TR) | Active | ReDriver | USB | - | 480Mbps | 1 | - | - | Input Equalization | 150 pF | 2.3V ~ 6.5V | 36mA | Surface Mount | -40°C ~ 105°C (TA) | AEC-Q100 | Automotive | 12-X2QFN (1.6x1.6) |
|
LTC4311IDC#TRPBFIC ACCELERATOR I2C 1CH 6DFN |
2,398 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Accelerator | I2C | 2-Wire Bus | 400kHz | 1 | 2-Wire Bus | - | - | - | 1.6V ~ 5.5V | 200µA | Surface Mount | -40°C ~ 85°C | - | - | 6-DFN (2x2) |
|

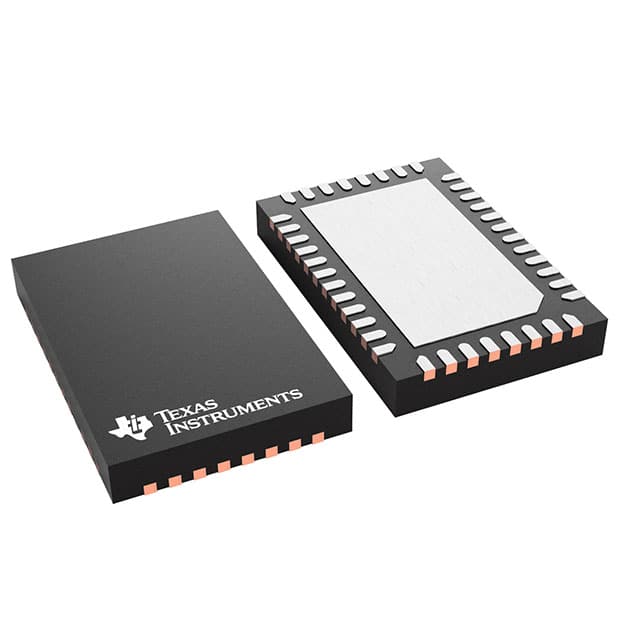

TUSB1104RNQRUSB TYPE-C 10-GBPS 3.2 X2 ADAPTI |
2,331 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | USB Type C | Differential | 10Gbps | 4 | Differential | 0.3ns | Input Equalization, Output De-Emphasis | 10 pF | 3V ~ 3.6V | - | Surface Mount | 0°C ~ 70°C (TA) | - | - | 40-WQFN (6x4) |
|
LTC4300A-3CMS8#TRPBFIC ACCELERATOR I2C HOTSWAP 8MSOP |
2,229 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Buffer, Accelerator | I2C - Hotswap | 2-Wire Bus | 400kHz | 2 | 2-Wire Bus | - | - | 10 pF | 2.7V ~ 5.5V | 3mA | Surface Mount | 0°C ~ 70°C | - | - | 8-MSOP |
