Signal Buffers, Repeaters, Splitters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Applications | Output | Data Rate (Max) | Number of Channels | Input | Delay Time | Signal Conditioning | Capacitance - Input | Voltage - Supply | Current - Supply | Mounting Style | Operating Temperature | Qualification | Grade | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN65LVPE512RGERIC REDRIVER USB 3.0 2CH 24VQFN |
1,904 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Buffer, ReDriver | USB 3.0 | CML | 5Gbps | 2 | CML | 305ps | Input Equalization, Output De-Emphasis | 1.25 pF | 3V ~ 3.6V | 100mA | Surface Mount | -40°C ~ 85°C | - | - | 24-VQFN (4x4) |
|
TUSB216IRWBRCOMMERCIAL THIRD-GENERATION USB |
7,083 |
|
Datasheet |
- | 12-XFQFN | Tape & Reel (TR) | Active | Buffer, ReDriver | USB | - | 480Mbps | 3 | - | - | Input Equalization | 2.5 pF | 2.3V ~ 6.5V | 22mA | Surface Mount | -40°C ~ 85°C (TA) | - | - | 12-X2QFN (1.6x1.6) |
|
P82B96PIC REDRIVER I2C 1CH 400KHZ 8DIP |
239 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | Buffer, ReDriver | I2C | 2-Wire Bus | 400kHz | 2 | 2-Wire Bus | - | - | 4 pF | 2V ~ 15V | 4mA | Through Hole | -40°C ~ 85°C | - | - | 8-PDIP |
|
PI2DPT1021XEAEXACTIVE DISPLAY X1-QFN2845-32 T&R |
2,255 |
|
Datasheet |
- | 32-XFQFN Exposed Pad | Tape & Reel (TR) | Active | Retimer | USB Type C | - | 10Gbps | 4 | - | - | Input Equalization | - | 1.71V ~ 1.89V | - | Surface Mount | - | - | - | X1-QFN2845-32 |
|
DS15BA101SD/NOPBIC REDRIVER LVDS 1CH 8WSON |
919 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | LVDS | CML, LVDS | 1.5Gbps | 1 | CML, LVDS, LVPECL | 1.1ns | - | - | 3.135V ~ 3.465V | 45mA | Surface Mount | -40°C ~ 85°C | - | - | 8-WSON (3x3) |
|
|
PI5USB212XUAEXUSB2 REPEATER X2-QFN1616-12 T&R |
2,935 |
|
Datasheet |
- | 12-XFQFN | Tape & Reel (TR) | Active | Buffer, ReDriver | USB | Differential | - | 1 | Differential | - | Output Pre-Emphasis | - | 2.3V ~ 5.5V | - | Surface Mount | - | - | - | 12-STQFN (1.6x1.6) |
|
|
NB7NPQ7042MMUTWG3.3 V USB 3.1 QUAD CHANNE |
6,000 |
|
Datasheet |
- | 36-XFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Buffer, ReDriver | USB | Differential | 10Gbps | 4 | LVCMOS | 900ps | Input Equalization, Output De-Emphasis | 1.25 pF | 3.135V ~ 3.465V | 225mA | Surface Mount | -40°C ~ 85°C (TA) | - | - | 36-X2QFN (3.1x4.3) |
|
DS90LV804TSQX/NOPBIC REDRIVER LVDS 4CH 32WQFN |
6,909 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | LVDS | LVDS | 800Mbps | 4 | CML, LVDS, LVPECL | 2.0ns | - | 3.5 pF | 3.15V ~ 3.45V | 117mA | Surface Mount | -40°C ~ 85°C | - | - | 32-WQFN (5x5) |
|
SN65LVDS105PWIC MULTIPLEXER 1CH 16TSSOP |
160 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Buffer, Multiplexer | - | LVDS | 400Mbps | 1 x 1:4 | LVTTL | 2.2ns | - | 3 pF | 3V ~ 3.6V | 23mA | Surface Mount | -40°C ~ 85°C | - | - | 16-TSSOP |
|
SN65LVDT101DGKIC REDRIVER 1CH 2GBPS 8VSSOP |
302 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Buffer, ReDriver | - | LVPECL | 2Gbps | 1 | CML, LVDS, LVPECL | 630ps | - | 0.6 pF | 3V ~ 3.6V | 50mA | Surface Mount | -40°C ~ 85°C | - | - | 8-VSSOP |
|
SN65LVDS104DIC MULTIPLEXER 1CH 16SOIC |
298 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Active | Buffer, Multiplexer | - | LVDS | 400Mbps | 1 x 1:4 | LVDS | 3.1ns | - | 3 pF | 3V ~ 3.6V | 23mA | Surface Mount | -40°C ~ 85°C | - | - | 16-SOIC |
|
|
SN65LVDS104PWIC MULTIPLEXER 1CH 16TSSOP |
3,336 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Buffer, Multiplexer | - | LVDS | 400Mbps | 1 x 1:4 | LVDS | 3.1ns | - | 3 pF | 3V ~ 3.6V | 23mA | Surface Mount | -40°C ~ 85°C | - | - | 16-TSSOP |
|

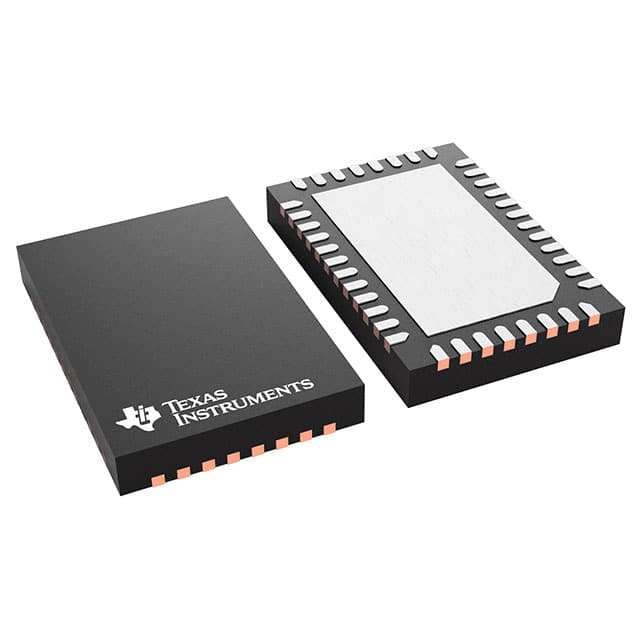

TDP0604IRNQRDP++ 6-GBPS HDMI 2.0 REDRIVER |
2,542 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | DisplayPort, HDMI | Differential | 6Gbps | 4 | Differential | 220ps | Input Equalization, Output Pre-Emphasis | 12 pF | 3V ~ 3.6V, 3.135V ~ 3.465V | 16µA | Surface Mount | -40°C ~ 85°C (TA) | - | - | 40-WQFN (6x4) |
|
SN65LVDS100DIC REDRIVER 1CH 2GBPS 8SOIC |
312 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Buffer, ReDriver | - | LVDS | 2Gbps | 1 | CML, LVDS, LVPECL | 470ps | - | 0.6 pF | 3V ~ 3.6V | 25mA | Surface Mount | -40°C ~ 85°C | - | - | 8-SOIC |
|
|
SN65LVDT100DGKIC REDRIVER 1CH 2GBPS 8VSSOP |
450 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Buffer, ReDriver | - | LVDS | 2Gbps | 1 | CML, LVDS, LVPECL | 470ps | - | 0.6 pF | 3V ~ 3.6V | 25mA | Surface Mount | -40°C ~ 85°C | - | - | 8-VSSOP |
|
|
DS25BR101TSDE/NOPBIC REDRIVER LVDS 1CH 8WSON |
451 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | LVDS | LVDS | 3.125Gbps | 1 | CML, LVDS, LVPECL | 350ps | Input Equalization, Output Pre-Emphasis | 1.7 pF | 3V ~ 3.6V | 35mA | Surface Mount | -40°C ~ 85°C | - | - | 8-WSON (3x3) |
|
PI3EQX16021ZLDEXPCIE EQX W-QFN3060-40 T&R 3.5K |
3,500 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | I2C, PCIe | CML | 16Gbps | 4 | CML | - | Input Equalization | - | 3.3V | - | Surface Mount | 0°C ~ 70°C | - | - | 40-TQFN (3x6) |
|
|
PI3EQX16012ZLDEXPCIE EQX W-QFN3060-40 T&R 3.5K |
3,498 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | I2C, PCIe | CML | 16Gbps | 4 | CML | - | Input Equalization | - | 3.3V | - | Surface Mount | 0°C ~ 70°C | - | - | 40-TQFN (3x6) |
|
|
TUSB2E22RZAREUSB2 TO USB 2.0 DUAL REPEATER |
2,431 |
|
Datasheet |
- | 20-TFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | USB | Differential | 480Mbps | 2 | Differential | 1ms | - | - | 1.62V ~ 1.98V, 3V ~ 3.6V | - | Surface Mount | -20°C ~ 85°C (TA) | - | - | 20-VQFN-FCRLF (3.5x3.5) |
|
LTC1694CS5#TRPBFIC ACCELERATOR I2C 1CH TSOT23-5 |
2,201 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Buffer, Accelerator | I2C | 2-Wire Bus | 400kHz | 1 | 2-Wire Bus | - | - | - | 2.7V ~ 6V | 60µA | Surface Mount | 0°C ~ 70°C | - | - | TSOT-23-5 |
