Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4GL-4CFG-A4-NPTINTERLOCK SOLENOID LOCKING DPST |
3,425 |
|
Datasheet |
D4GL | Bulk | Obsolete | Solenoid Locking | DPST-NO/NC + DPST-NC | 240VAC | 24VDC | 102kgf | 750mA (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4GL-4DFA-A4-NPTINTERLOCK SOLENOID RELEASE DPST |
1,042 |
|
Datasheet |
D4GL | Bulk | Obsolete | Solenoid Release | DPST-NC x 2 | 240VAC | 24VDC | 102kgf | 750mA (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4GL-4DFG-A4-NPTINTERLOCK SOLENOID LOCKING DPST |
1,935 |
|
Datasheet |
D4GL | Bulk | Obsolete | Solenoid Locking | DPST-NC x 2 | 240VAC | 24VDC | 102kgf | 750mA (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
SI-QM100DSGINTERLOCK SOLENOID RELEASE DPST |
1,256 |
|
Datasheet |
SI-QM100 | Box | Obsolete | Solenoid Release | DPST-NO/NC x 2 | 24VDC | 24VDC | 102kgf | 4A (DC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, CSA, UL | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 60°C |
|
|
601.9490.056INTERLOCK HINGE 3PST |
1,552 |
|
Datasheet |
- | Bulk | Active | Hinge | 3PST-2NC/1NO | 230VAC, 24VDC | - | - | 3A (AC), 1A (DC) | Panel Disconnect | Connector | - | - | - | - | M12 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
3SF11241QV101BA2SAFETY POS. SWITCH W. SEPARATE |
4,952 |
|
Datasheet |
SIRIUS 3SF11 | Box | Active | Non-Locking | DPST-NC | - | - | - | - | Panel Disconnect | Connector (M12) | - | - | - | CE, EAC, UKCA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
6051598INTERLOCK SOLENOID LOCKING 4PST |
3,108 |
|
Datasheet |
i110 Lock | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO | 230VAC, 24VDC | - | 255kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
6051599INTERLOCK SOLENOID LOCKING 4PST |
3,682 |
|
Datasheet |
i110 Lock | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO | 230VAC, 24VDC | - | 255kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
6051597INTERLOCK SOLENOID LOCKING 4PST |
4,088 |
|
Datasheet |
i110 Lock | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO | 230VAC, 24VDC | - | 255kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|

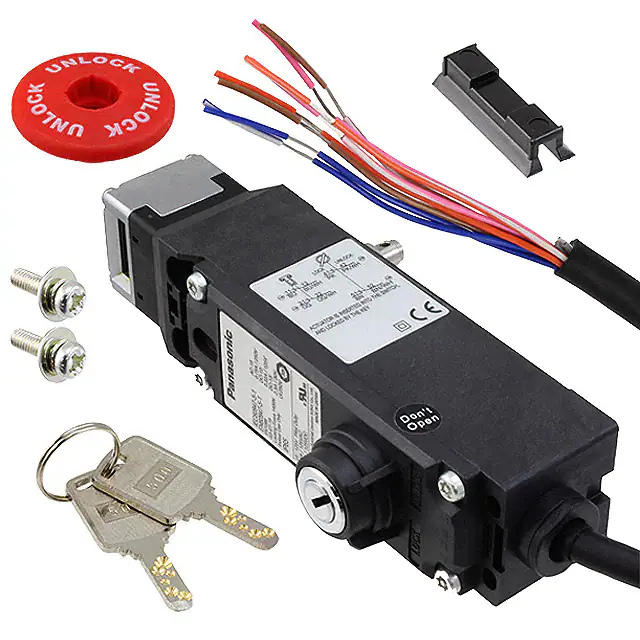

SG-B2-K2AD-L5INTERLOCK KEY LOCKING DPST |
4,396 |
|
Datasheet |
SG-B2 | Bulk | Active | Key Locking | DPST-NC | 125VAC, 30VDC | - | - | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Manual Override | - | - | CE, cURus, TUV | - | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C |
|

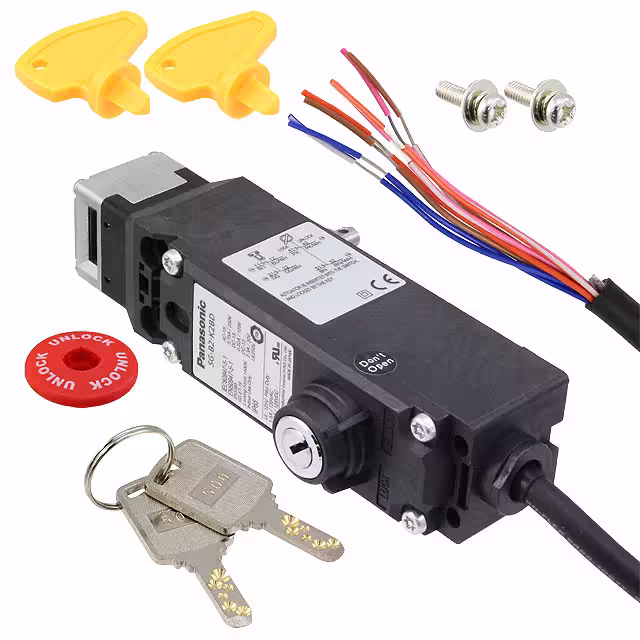

SG-B2-K2BD-L5INTERLOCK KEY LOCKING DPST |
4,715 |
|
Datasheet |
SG-B2 | Bulk | Active | Key Locking | DPST-NC | 125VAC, 30VDC | - | - | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Manual Override | - | - | CE, cURus, TUV | - | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C |
|

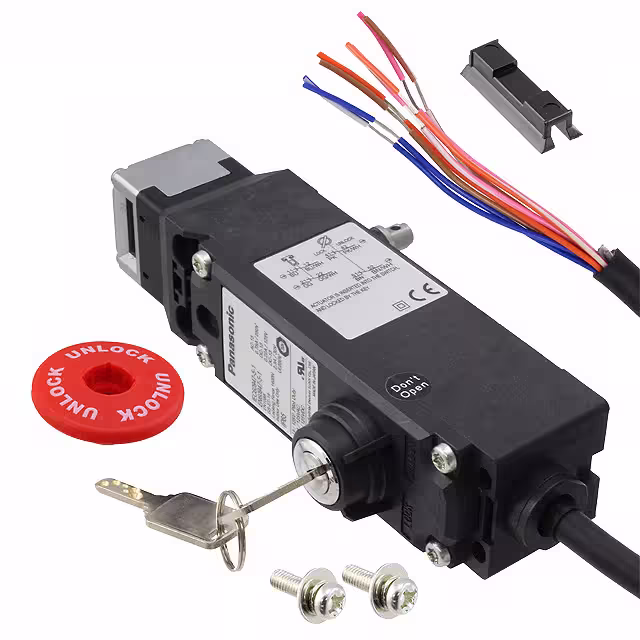

SG-B2-K2CD-L5INTERLOCK KEY LOCKING DPST |
1,387 |
|
Datasheet |
SG-B2 | Bulk | Active | Key Locking | DPST-NC | 125VAC, 30VDC | - | - | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Manual Override | - | - | CE, cURus, TUV | - | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C |
|
|
6034026INTERLOCK SOLENOID RELEASE 3PST |
3,789 |
|
Datasheet |
i15 Lock | Bulk | Active | Solenoid Release | 3PST-NC | 230VAC, 24VDC | 20.4 ~ 26.4VDC | 102kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
6034027INTERLOCK SOLENOID RELEASE 3PST |
1,787 |
|
Datasheet |
i15 Lock | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 230VAC, 24VDC | 20.4 ~ 26.4VDC | 102kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
6034030INTERLOCK SOLENOID LOCKING 3PST |
4,568 |
|
Datasheet |
i15 Lock | Bulk | Active | Solenoid Locking | 3PST-NC | 230VAC, 24VDC | 20.4 ~ 26.4VDC | 102kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
6034031INTERLOCK SOLENOID LOCKING 3PST |
4,480 |
|
Datasheet |
i15 Lock | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO | 230VAC, 24VDC | 20.4 ~ 26.4VDC | 102kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
GKCA14MXSAFETY LIMIT SWITCH-HEAVY DUTY |
3,697 |
|
Datasheet |
GK | Bulk | Active | Non-Locking | 4PST-2NO/2NC (BBM) | 120VAC, 24VDC | - | - | 6A (AC), 2.8A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
|
GKCA14N6SAFETY LIMIT SWITCH-HEAVY DUTY |
4,045 |
|
Datasheet |
GK | Bulk | Active | Non-Locking | 4PST-2NO/2NC (BBM) | 120VAC, 24VDC | - | - | 6A (AC), 2.8A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
|
D4SL-N2QDA-D4INTERLOCK SOLENOID RELEASE 3PST |
4,135 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + 3PST-NC | 120VAC, 125VDC | - | 133kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N2RDA-D4INTERLOCK SOLENOID RELEASE 3PST |
3,540 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-NC x 2 | 120VAC, 125VDC | - | 133kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
