Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GKNA30INTERLOCK NON-LOCKING 3PST |
1,724 |
|
Datasheet |
GKN | Bulk | Active | Non-Locking | 3PST-NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
RDI-G-RINTERLOCK SOLENOID RELEASE |
1,748 |
|
Datasheet |
RDI | Bulk | Active | Solenoid Release | - | - | 24VAC/DC | 608kgf | - | Panel Disconnect | Screw Terminal | - | - | - | ASME, UL | - | - | 4°C ~ 38°C |
|
|
RDI-H-RBRINTERLOCK SOLENOID RELEASE |
2,571 |
|
Datasheet |
RDI | Bulk | Active | Solenoid Release | - | - | 24VAC/DC | 608kgf | - | Panel Disconnect | Screw Terminal | - | - | - | ASME, UL | - | - | 4°C ~ 38°C |
|
|
RDI-G-R5BINTERLOCK SOLENOID RELEASE |
2,610 |
|
Datasheet |
RDI | Bulk | Active | Solenoid Release | - | - | 24VAC/DC | 608kgf | - | Panel Disconnect | Screw Terminal | - | - | - | ASME, UL | - | - | 4°C ~ 38°C |
|
|
RDI-D-RINTERLOCK SOLENOID RELEASE |
4,337 |
|
Datasheet |
RDI | Bulk | Active | Solenoid Release | - | - | 24VAC/DC | 608kgf | - | Panel Disconnect | Screw Terminal | - | - | - | ASME, UL | - | - | 4°C ~ 38°C |
|

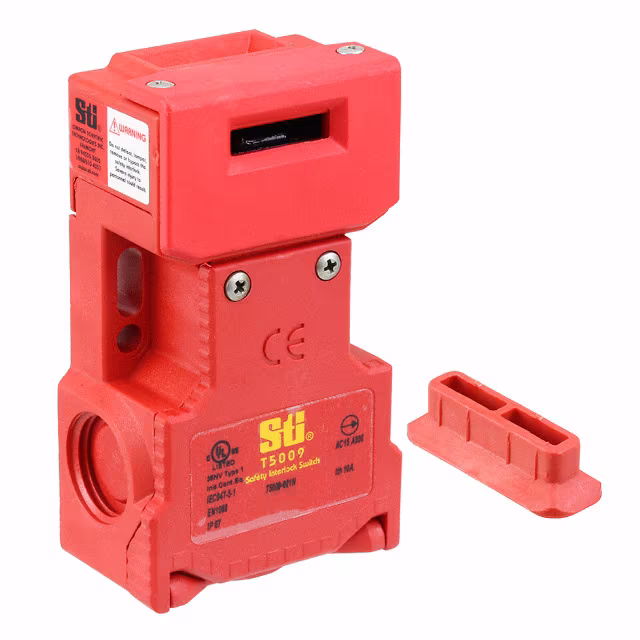

T5009-021NINTERLOCK NON-LOCKING 3PST |
4,857 |
|
Datasheet |
T5009 | Bulk | Obsolete | Non-Locking | 3PST-2NC/1NO (BBM) | 120VAC, 24VDC | - | 1kgf | 6A (AC), 2.5A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | 1/2" NPT x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|

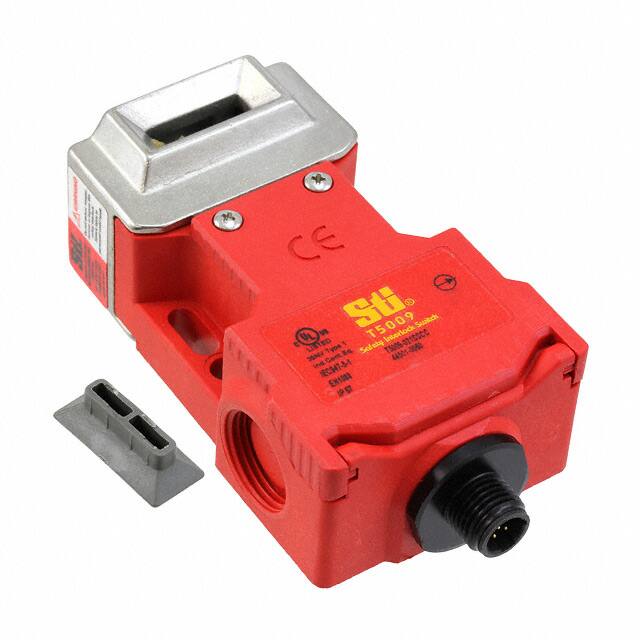

T5009-021SSCCINTERLOCK NON-LOCKING 3PST |
2,276 |
|
Datasheet |
T5009 | Bulk | Obsolete | Non-Locking | 3PST-2NC/1NO (BBM) | 120VAC, 24VDC | - | 1kgf | 6A (AC), 2.5A (DC) | Panel Disconnect | Connector (Micro AC) | Stainless Steel Head | - | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|

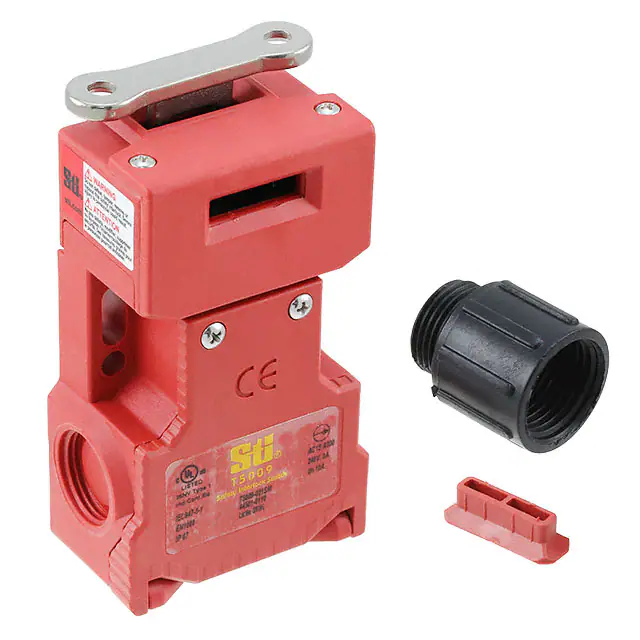

T5009-021SMINTERLOCK NON-LOCKING 3PST |
3,807 |
|
Datasheet |
T5009 | Bulk | Obsolete | Non-Locking | 3PST-2NC/1NO (BBM) | 120VAC, 24VDC | - | 1kgf | 6A (AC), 2.5A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|

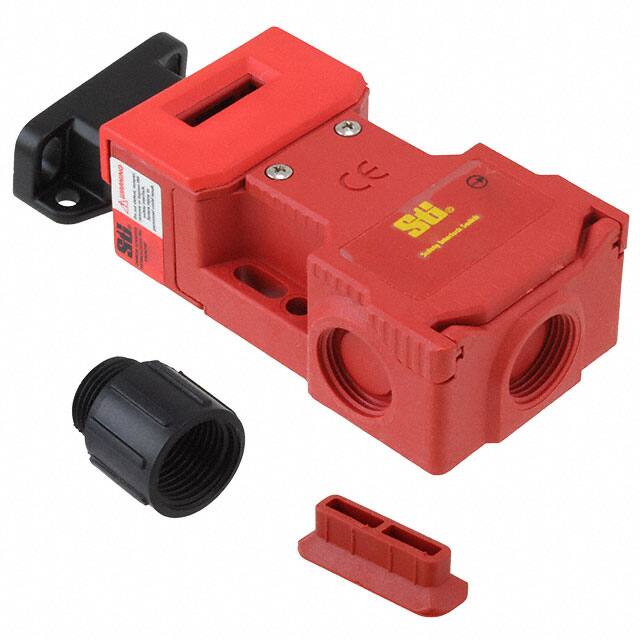

T5009-021F1MINTERLOCK NON-LOCKING 3PST |
3,209 |
|
Datasheet |
T5009 | Bulk | Obsolete | Non-Locking | 3PST-2NC/1NO (BBM) | 120VAC, 24VDC | - | 1kgf | 6A (AC), 2.5A (DC) | Panel Disconnect | Screw Terminal | Flex Actuator | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
|
TL8012-S1110SMINTERLOCK SOLENOID RELEASE 5PST |
3,625 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Release | 5PST-3NC/2NO | 100VAC, 24VDC | 110VAC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
|
TL8012-S1220SMINTERLOCK SOLENOID RELEASE 5PST |
3,496 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Release | 5PST-3NC/2NO | 100VAC, 24VDC | 220VAC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
|
TL8012-S2110SMINTERLOCK SOLENOID LOCKING 5PST |
1,606 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Locking | 5PST-3NC/2NO | 100VAC, 24VDC | 110VAC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
|
TL8012-S2220SMINTERLOCK SOLENOID LOCKING 5PST |
4,544 |
|
Datasheet |
TL8012-S | Bulk | Active | Solenoid Locking | 5PST-3NC/2NO | 100VAC, 24VDC | 220VAC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
|
TL8012-S2220FMINTERLOCK SOLENOID LOCKING 5PST |
4,902 |
|
Datasheet |
TL8012-S | Bulk | Active | Solenoid Locking | 5PST-3NC/2NO | 100VAC, 24VDC | 220VAC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|

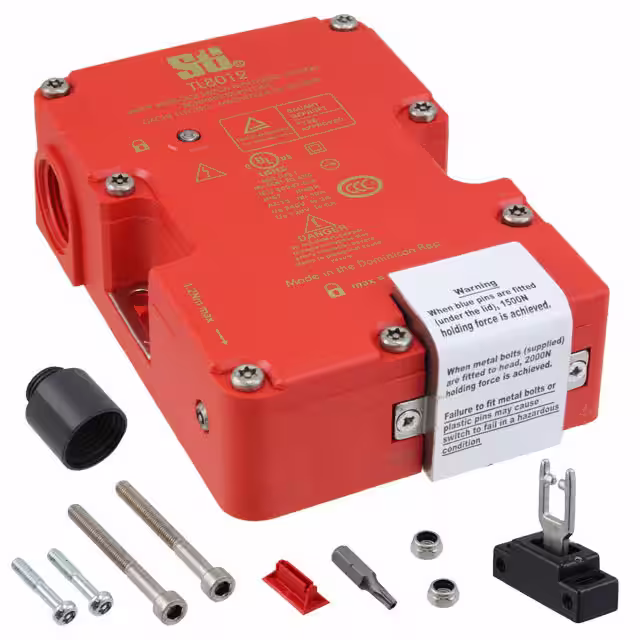

TL8012-S2024FMINTERLOCK SOLENOID LOCKING 5PST |
1,880 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Locking | 5PST-3NC/2NO | 100VAC, 24VDC | 24VAC/DC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
|
TL8012-S1024FMINTERLOCK SOLENOID RELEASE 5PST |
1,694 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Release | 5PST-3NC/2NO | 100VAC, 24VDC | 24VAC/DC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
|
TL8012-S1110FMINTERLOCK SOLENOID RELEASE 5PST |
1,828 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Release | 5PST-3NC/2NO | 100VAC, 24VDC | 110VAC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
|
TL8012-S1220FMINTERLOCK SOLENOID RELEASE 5PST |
3,062 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Release | 5PST-3NC/2NO | 100VAC, 24VDC | 220VAC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
|
TL8012-S1024TMINTERLOCK SOLENOID RELEASE 5PST |
4,824 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Release | 5PST-3NC/2NO | 100VAC, 24VDC | 24VAC/DC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|

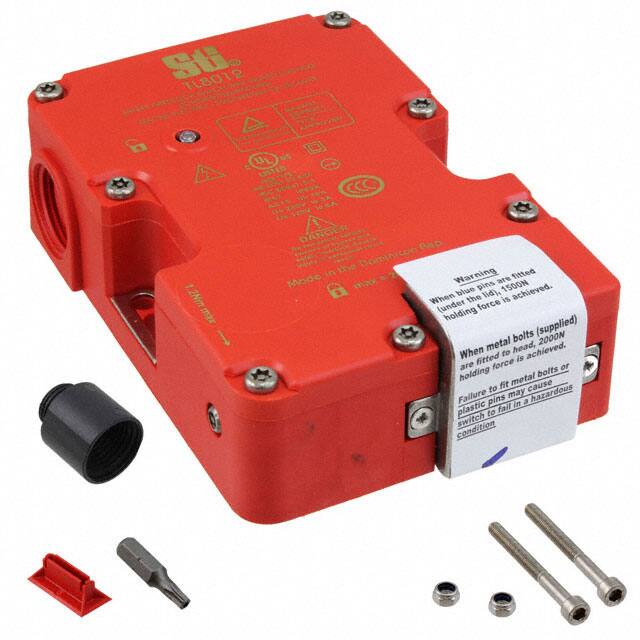

TL8012-S1110TMINTERLOCK SOLENOID RELEASE 5PST |
1,936 |
|
Datasheet |
TL8012-S | Bulk | Obsolete | Solenoid Release | 5PST-3NC/2NO | 100VAC, 24VDC | 110VAC | 204kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
