Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS7A-DMP7002INTERLOCK SWITCH SAFETY NON-CONT |
2,285 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4BS-6AFSINTERLOCK NON-LOCKING DPST |
2,711 |
|
Datasheet |
D4BS | Bulk | Obsolete | Non-Locking | DPST-NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | G1/2 x3 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
|
|
D4NH-8CASINTERLOCK HINGE 3PST |
1,701 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-8CBCINTERLOCK HINGE 3PST |
3,371 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-8DASINTERLOCK HINGE 3PST |
2,755 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NH-8DBCINTERLOCK HINGE 3PST |
2,660 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
6036768SAFETY SENSOR |
4,035 |
|
Datasheet |
RE31 | Bulk | Active | Magnetic | DPST-NO/NC | 30VDC | - | - | 400mA (DC) | Non-Contact | Connector | - | 6mm | 17mm | CE, cULus, EAC | M8 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
XCSDMC5915INTERLOCK MAGNETIC DPST |
3,196 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 5mm | 15mm | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
XCSDMR7912INTERLOCK MAGNETIC DPST |
2,874 |
|
Datasheet |
XCSDMR | Box | Active | Magnetic | DPST-NC | 24VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
GKNA21INTERLOCK NON-LOCKING 3PST |
3,782 |
|
Datasheet |
GKN | Bulk | Active | Non-Locking | 3PST-2NC/1NO (BBM) | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
1078202MAGN LOCKING MODULE |
1,291 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCSPA693INTERLOCK KEY LOCKING DPST |
2,107 |
|
Datasheet |
XCSPA | Box | Active | Key Locking | DPST-NO/NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
XCSDMR79010INTERLOCK MAGNETIC DPST |
1,664 |
|
Datasheet |
XCSDMR | Box | Active | Magnetic | DPST-NC | 100VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|

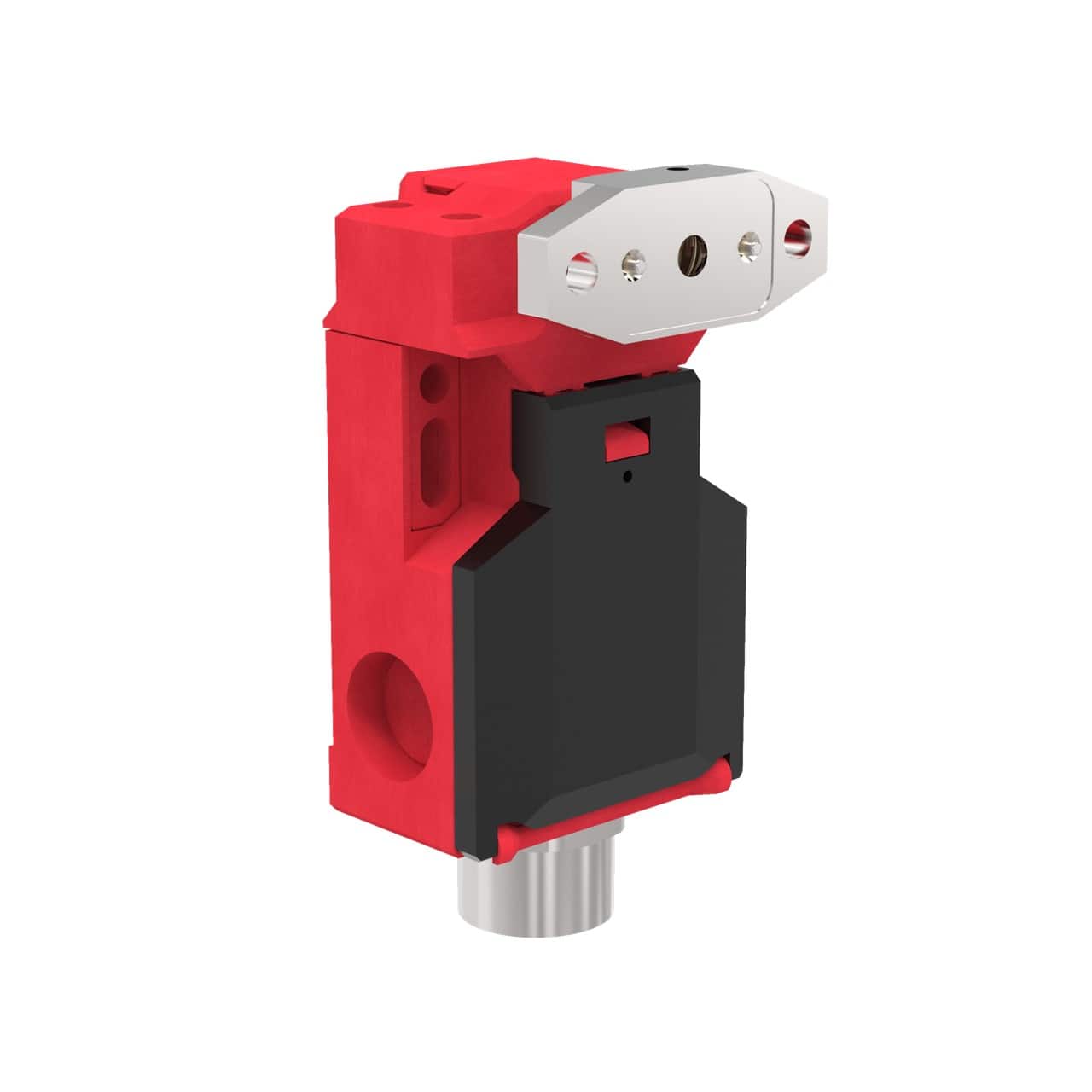

SI-QS90MRHFINTERLOCK NON-LOCKING 3PST |
1,000 |
|
Datasheet |
SI-QS90 | Box | Active | Non-Locking | 3PST-2NC/1NO | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 x3 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|
|
SI-QS90MRVFINTERLOCK NON-LOCKING 3PST |
3,010 |
|
Datasheet |
SI-QS90 | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 x 1.5 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|
|
SI-QS90MFFINTERLOCK NON-LOCKING 3PST |
3,047 |
|
Datasheet |
SI-QS90 | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 110VAC, 24VDC | 24VDC | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 x 1.5 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|
|
MC88CH2ORM5LSAFETY MAGNETIC SENSOR WITH LED, |
1,208 |
|
Datasheet |
MC88C | Bulk | Active | Magnetic | DPST-NO | 24VAC/DC | - | - | 250mA (AC/DC) | Non-Contact | Cable with Connector (M8) | - | - | - | CE, cULus | M8 | IP67 - Dust Tight, Waterproof | -25°C ~ 80°C |
|
|
MC88CH2OLM5LSAFETY MAGNETIC SENSOR WITH LED, |
3,898 |
|
Datasheet |
MC88C | Bulk | Active | Magnetic | DPST-NO | 24VAC/DC | - | - | 250mA (AC/DC) | Non-Contact | Cable with Connector (M8) | - | - | - | CE, cULus | M8 | IP67 - Dust Tight, Waterproof | -25°C ~ 80°C |
|
|
XCSDMC59010EXINTERLOCK MAGNETIC DPST |
2,868 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 100VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 5mm | 15mm | - | - | IP66 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
|
HS7A-DMP7012INTERLOCK SWITCH SAFETY NON-CONT |
1,645 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
