Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS5L-XD44M-GINTERLOCK SOLENOID RELEASE DPST |
1,064 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NC | 125VAC, 30VDC | - | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
|
HS5L-XH44M-GINTERLOCK SOLENOID RELEASE DPST |
3,551 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NC | 125VAC, 30VDC | - | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
|
1106516INTERLOCK SWITCH SAFETY RFID |
1,562 |
|
Datasheet |
STR1 | Bulk | Active | RFID | - | - | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Status Indicator | 10mm | 25mm | CE, cULus, TUV | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -30°C ~ 70°C |
|
D4GS-N1T-5INTERLOCK NON-LOCKING DPST |
4,157 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4GS-N2R-5INTERLOCK NON-LOCKING DPST |
3,101 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
CM-S6PC10INTERLOCK MAGNETIC DPST |
2,034 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 7mm | 10mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4BS-2AFS-LDRINTERLOCK NON-LOCKING DPST |
3,868 |
|
Datasheet |
D4BS | Bulk | Active | Non-Locking | DPST-NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | G1/2 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
|
|
XCSMP59L5INTERLOCK KEY LOCKING DPST |
4,236 |
|
Datasheet |
XCSMP | Box | Active | Key Locking | DPST-NO/NC | 120VAC, 125VDC | - | - | 1.5A (AC), 550mA (DC) | Panel Disconnect | Cable Leads | - | - | - | CSA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
GKBA1M7SAFETY LIMIT SWITCH-HEAVY DUTY |
4,579 |
|
Datasheet |
GK | Bulk | Discontinued | Non-Locking | DPST-NO/NC | 120VAC, 24VDC | - | - | 6A (AC), 2.8A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
|
641.9402.397INTERLOCK MAGNETIC DPST |
1,186 |
|
Datasheet |
MA-02 | Bulk | Active | Magnetic | DPST-NO/NC | 250VDC | - | - | 5A (DC) | Non-Contact | Cable Leads | - | - | - | - | - | IP67 - Dust Tight, Waterproof | -5°C ~ 70°C |
|

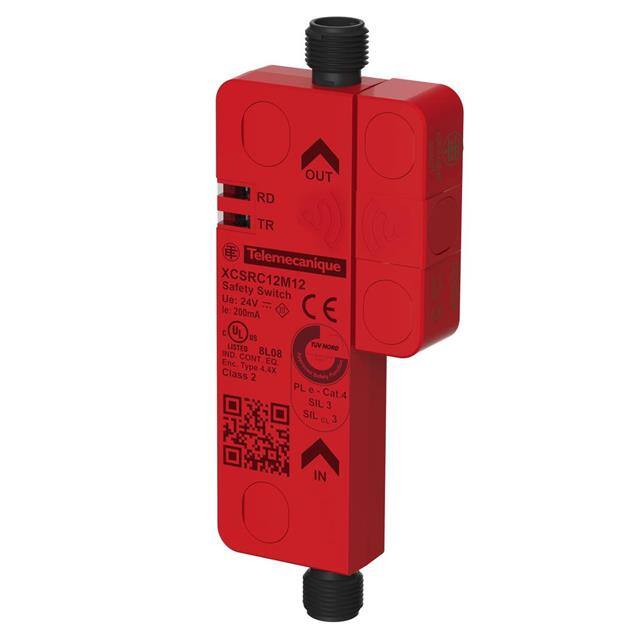

XCSRC12M12INTERLOCK SWITCH RFID |
3,192 |
|
Datasheet |
XCSRC | Box | Active | RFID | - | 24VDC | - | - | 60mA (DC) | Non-Contact | Connector (M12) | - | 10mm | 35mm | CSA, E2, EAC, Ecolab, FCC, IC, RCM, TUV | - | IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C |
|

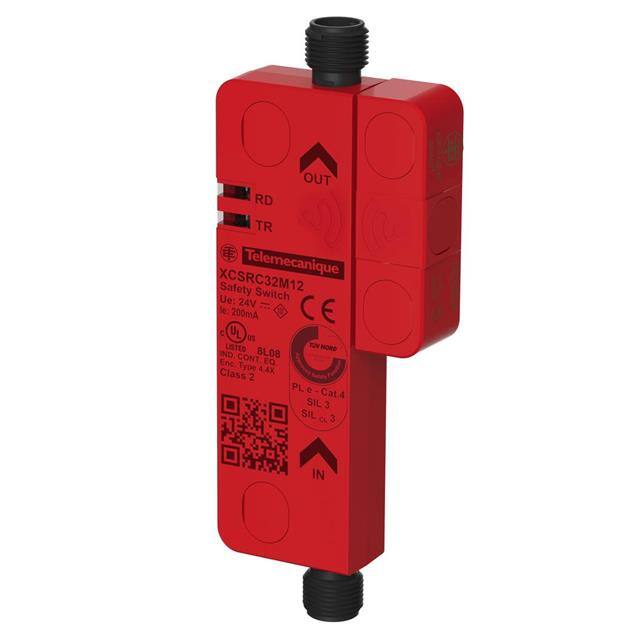

XCSRC32M12INTERLOCK SWITCH RFID |
3,404 |
|
Datasheet |
XCSRC | Box | Active | RFID | - | 24VDC | - | - | 60mA (DC) | Non-Contact | Connector (M12) | - | 10mm | 35mm | CSA, E2, EAC, Ecolab, FCC, IC, RCM, TUV | - | IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C |
|
|
1029815INTERLOCK CUSTOM |
2,446 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1029817INTERLOCK CUSTOM |
1,016 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1029816INTERLOCK CUSTOM |
4,745 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SE51321QV20INTERLOCK NON-LOCKING 3PST |
3,677 |
|
Datasheet |
SIRIUS | Box | Active | Non-Locking | 3PST-2NC/1NO | 24VDC | - | - | 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UL | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
631.6302.285INTERLOCK MAGNETIC SPDT |
3,150 |
|
Datasheet |
MA-02 | Bulk | Active | Magnetic | SPDT | 250VAC/DC | - | - | 1A (AC/DC) | Non-Contact | Cable Leads | - | 24mm | 45mm | - | - | IP67 - Dust Tight, Waterproof | -5°C ~ 70°C |
|
|
3SE66053BA05SWITCHING ELEMENT, RECT. SMALL,5 |
3,721 |
|
Datasheet |
SIRIUS 3SE66 | Box | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 100mA (DC) | Shaft | Cable Leads | - | - | - | CE, EAC, RCM, UKCA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
3SE66052BA05SWITCHING ELEMENT. RECT. LARGE |
4,156 |
|
Datasheet |
SIRIUS 3SE66 | Box | Active | Magnetic | DPST-NO/NC | 100VAC/DC | - | - | 400mA (AC/DC) | Non-Contact | Cable Leads | - | - | - | CE, EAC, RCM, UKCA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
D4GS-N3T-5INTERLOCK NON-LOCKING 3PST |
4,616 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
