| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW6K-2T1ASWITCH KEY 2POS SPDT 100MA 125V |
2,737 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 100mA (AC/DC) | 125 V | On-On | 30 V | Flat Key | All | 90° | Silver (Ag) | Circular - 22.30mm Dia | Gold | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW6K-2T1BSWITCH KEY 2POS SPDT 100MA 125V |
4,636 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 100mA (AC/DC) | 125 V | On-On | 30 V | Flat Key | Left | 90° | Silver (Ag) | Circular - 22.30mm Dia | Gold | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW6K-2T1VBSWITCH KEY 2POS SPDT 100MA 125V |
1,966 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 100mA (AC/DC) | 125 V | On-On | 30 V | Flat Key | Left | 90° | Silver (Ag) | Circular - 22.30mm Dia | Gold | PC Pin | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW6K-2T5ASWITCH KEYLOCK 2POS SPDT 5A 125V |
2,926 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 5A (AC/DC) | 125 V | On-On | 30 V | Flat Key | All | 90° | Silver (Ag) | Circular - 22.30mm Dia | Silver | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW6K-2T5BSWITCH KEYLOCK 2POS SPDT 5A 125V |
3,731 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 5A (AC/DC) | 125 V | On-On | 30 V | Flat Key | Left | 90° | Silver (Ag) | Circular - 22.30mm Dia | Silver | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW7K-2T1ASWITCH KEY 2POS SPDT 100MA 125V |
4,878 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 100mA (AC/DC) | 125 V | On-On | 30 V | Flat Key | All | 90° | Silver (Ag) | Square - 22.50mm² | Gold | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW7K-2T1BSWITCH KEY 2POS SPDT 100MA 125V |
4,196 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 100mA (AC/DC) | 125 V | On-On | 30 V | Flat Key | Left | 90° | Silver (Ag) | Square - 22.50mm² | Gold | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW7K-2T1VASWITCH KEY 2POS SPDT 100MA 125V |
1,349 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 100mA (AC/DC) | 125 V | On-On | 30 V | Flat Key | All | 90° | Silver (Ag) | Square - 22.50mm² | Gold | PC Pin | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW7K-2T1VBSWITCH KEY 2POS SPDT 100MA 125V |
1,154 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 100mA (AC/DC) | 125 V | On-On | 30 V | Flat Key | Left | 90° | Silver (Ag) | Square - 22.50mm² | Gold | PC Pin | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW7K-2T5ASWITCH KEYLOCK 2POS SPDT 5A 125V |
4,727 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 5A (AC/DC) | 125 V | On-On | 30 V | Flat Key | All | 90° | Silver (Ag) | Square - 22.50mm² | Silver | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -25°C ~ 60°C |
|
|
LBW7K-2T5BSWITCH KEYLOCK 2POS SPDT 5A 125V |
3,171 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | Not Specified | 5A (AC/DC) | 125 V | On-On | 30 V | Flat Key | Left | 90° | Silver (Ag) | Square - 22.50mm² | Silver | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -25°C ~ 60°C |
|
|
71L36-01-1-10S-FSWITCH KEY 10P SP10T 250MA 115V |
4,675 |
|
Datasheet |
71L | Bulk | Active | SP10T | 10 | Shorting (MBB) | 250mA (AC/DC) | 115 V | - | 30 V | Flat Key | All | 36° | Silver Alloy | Circular - 19.05mm Dia | - | Solder Lug | Panel Mount | - | - |
|

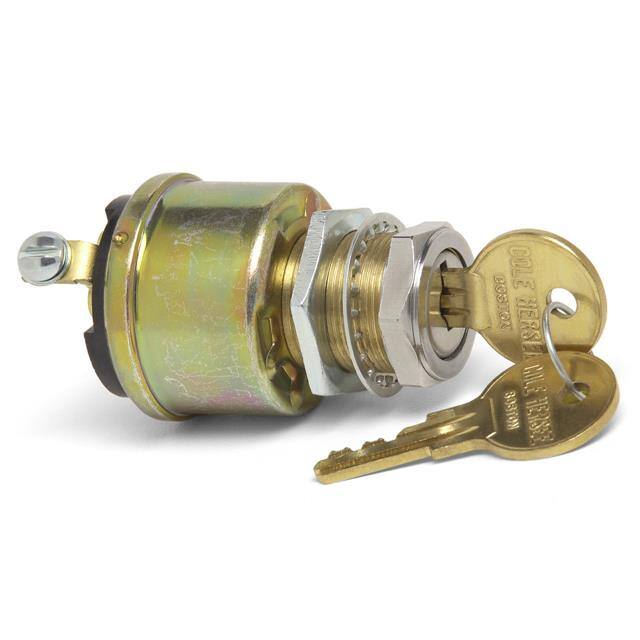

M-489-03SWITCH KEYLOCK 2POS 10A 12V |
4,861 |
|
Datasheet |
- | Bulk | Active | - | 2 | Not Specified | 10A (DC) | - | Off-Mom | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
95532SWITCH KEYLOCK 2POS 5A 12V |
1,280 |
|
Datasheet |
95 | Bulk | Obsolete | - | 2 | Not Specified | 5A (DC) | - | Off-On | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
|
LA1K-3C2VHSWITCH KEY 3POS DPDT 100MA 125V |
2,820 |
|
Datasheet |
L6 | Bulk | Active | DPDT | 3 | Not Specified | 100mA (AC/DC) | 125 V | On-Off-On | 30 V | Flat Key | Left and Center | 45° | Silver (Ag) | Circular - 16.20mm Dia | Gold | PC Pin | Panel Mount | - | -20°C ~ 55°C |
|
|
LA1K-3C6BSWITCH KEYLOCK 3POS DPDT 3A 125V |
1,258 |
|
Datasheet |
L6 | Bulk | Active | DPDT | 3 | Not Specified | 3A (AC), 2A (DC) | 125 V | On-Off-On | 30 V | Flat Key | Right | 45° | Silver (Ag) | Circular - 16.20mm Dia | Silver | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -20°C ~ 55°C |
|
|
LA1K-3C2VGSWITCH KEY 3POS DPDT 100MA 125V |
4,834 |
|
Datasheet |
L6 | Bulk | Active | DPDT | 3 | Not Specified | 100mA (AC/DC) | 125 V | On-Off-On | 30 V | Flat Key | Center and Right | 45° | Silver (Ag) | Circular - 16.20mm Dia | Gold | PC Pin | Panel Mount | - | -20°C ~ 55°C |
|
|
LA1K-31C2VDSWITCH KEY 3POS DPDT 100MA 125V |
3,394 |
|
Datasheet |
L6 | Bulk | Active | DPDT | 3 | Not Specified | 100mA (AC/DC) | 125 V | On-Off-Mom | 30 V | Flat Key | Left and Right | 45° | Silver (Ag) | Circular - 16.20mm Dia | Gold | PC Pin | Panel Mount | - | -20°C ~ 55°C |
|
|
LA1K-31C6DSWITCH KEYLOCK 3POS DPDT 3A 125V |
1,467 |
|
Datasheet |
L6 | Bulk | Active | DPDT | 3 | Not Specified | 3A (AC), 2A (DC) | 125 V | On-Off-Mom | 30 V | Flat Key | Left and Right | 45° | Silver (Ag) | Circular - 16.20mm Dia | Silver | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -20°C ~ 55°C |
|
|
LA1K-3C2VASWITCH KEY 3POS DPDT 100MA 125V |
4,156 |
|
Datasheet |
L6 | Bulk | Active | DPDT | 3 | Not Specified | 100mA (AC/DC) | 125 V | On-Off-On | 30 V | Flat Key | All | 45° | Silver (Ag) | Circular - 16.20mm Dia | Gold | PC Pin | Panel Mount | - | -20°C ~ 55°C |
