Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Switch Type | Number of Keys | Illumination | Legend Type | Key Type | Matrix (Columns x Rows) | Output Type | Legend | Legend Color | Key Color | Mounting Style | Ingress Protection | Termination Style | Operating Temperature | Panel Cutout Dimensions | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84BLN-BB2-014ANSWITCH KEYPAD 16KEY 0.01A 24V |
3,028 |
|
Datasheet |
84BL | Bulk | Active | Snap Dome | 16 | Illuminated - Red | Fixed | Rubber Overlay | 4 x 4 | Matrix | Telephone Format, A ~ F | Translucent | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Pin Header | - | - | 1.95 VDC | 0.01A @ 24VDC | - |
|
|
86JC2-202SWITCH KEYPAD 20KEY 0.01A 24V |
3,861 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 20 | Non-Illuminated | Partially Interchangeable | Polymer, Transparent Key Cap | 4 x 5 | Common Bus | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front or Rear | IP40 | Pin Header | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
|
3K041203SWITCH KEYPAD 4KEY 0.05A 24V |
1,219 |
|
Datasheet |
3000 | Bulk | Obsolete | Conductive Rubber | 4 | Non-Illuminated | Fixed | Polymer | 1 x 4 | Matrix | Arrows | Gray | Translucent | Panel Mount, Front or Rear | IP54 - Dust Protected, Water Resistant | Pin Header | -10°C ~ 85°C | Rectangular - 82.50mm x 25.50mm | - | 0.05A @ 24VDC | - |
|
|
3K120203SWITCH KEYPAD 12KEY 0.05A 24V |
1,514 |
|
Datasheet |
3000 | Bulk | Obsolete | Conductive Rubber | 12 | Non-Illuminated | Fixed | Polymer | 3 x 4 | Matrix | Calculator Format | Gray | Translucent | Panel Mount, Front or Rear | IP54 - Dust Protected, Water Resistant | Pin Header | -10°C ~ 85°C | Rectangular - 83.00mm x 64.00mm | - | 0.05A @ 24VDC | - |
|
|
3K12T203SWITCH KEYPAD 12KEY 0.05A 24V |
2,915 |
|
Datasheet |
3000 | Bulk | Obsolete | Conductive Rubber | 12 | Non-Illuminated | Fixed | Polymer | 3 x 4 | Matrix | Telephone Format | Gray | Translucent | Panel Mount, Front or Rear | IP54 - Dust Protected, Water Resistant | Pin Header | -10°C ~ 85°C | Rectangular - 83.00mm x 64.00mm | - | 0.05A @ 24VDC | - |
|
|
9004A103SWITCH KEYPAD 4KEY 0.05A 24V |
1,031 |
|
Datasheet |
900 | Bulk | Obsolete | Conductive Rubber | 4 | Illuminated | Interchangeable | Rubber Overlay | 1 x 4 | Matrix | Customizable (Included) | White | Black | Panel Mount, Front or Rear | IP67 - Dust Tight, Waterproof | Pin Header | -25°C ~ 85°C | - | 3.3 VDC | 0.05A @ 24VDC | - |
|
9012A103SWITCH KEYPAD 12KEY 0.05A 24V |
3,413 |
|
Datasheet |
900 | Bulk | Obsolete | Conductive Rubber | 12 | Illuminated | Interchangeable | Rubber Overlay | 3 x 4 | Matrix | Customizable (Included) | White | Black | Panel Mount, Front or Rear | IP67 - Dust Tight, Waterproof | Pin Header | -25°C ~ 85°C | - | 3.3 VDC | 0.05A @ 24VDC | - |
|
|
9016A103SWITCH KEYPAD 16KEY 0.05A 24V |
4,969 |
|
Datasheet |
900 | Bulk | Obsolete | Conductive Rubber | 16 | Illuminated | Interchangeable | Rubber Overlay | 4 x 4 | Matrix | Customizable (Included) | White | Black | Panel Mount, Front or Rear | IP67 - Dust Tight, Waterproof | Pin Header | -25°C ~ 85°C | - | 3.3 VDC | 0.05A @ 24VDC | - |
|
|
ICO10203SWITCH KEYPAD 1KEY NON-ILLUM |
1,610 |
|
Datasheet |
AXS-COM | - | Obsolete | Conductive Rubber | 1 | Non-Illuminated | Fixed | Metal | 1 x 1 | Non-Standard (Controller Included) | Blank Buttons | - | Silver | Panel Mount, Front | IP54 - Dust Protected, Water Resistant | Screw Terminal | - | - | - | - | Anti-Vandal |
|
|
ICO40203SWITCH KEYPAD 4KEY NON-ILLUM |
4,143 |
|
Datasheet |
AXS-COM | - | Obsolete | Conductive Rubber | 4 | Non-Illuminated | Fixed | Metal | 1 x 4 | Non-Standard (Controller Included) | Blank Buttons | - | Silver | Panel Mount, Front | IP54 - Dust Protected, Water Resistant | Screw Terminal | - | - | - | - | Anti-Vandal |
|

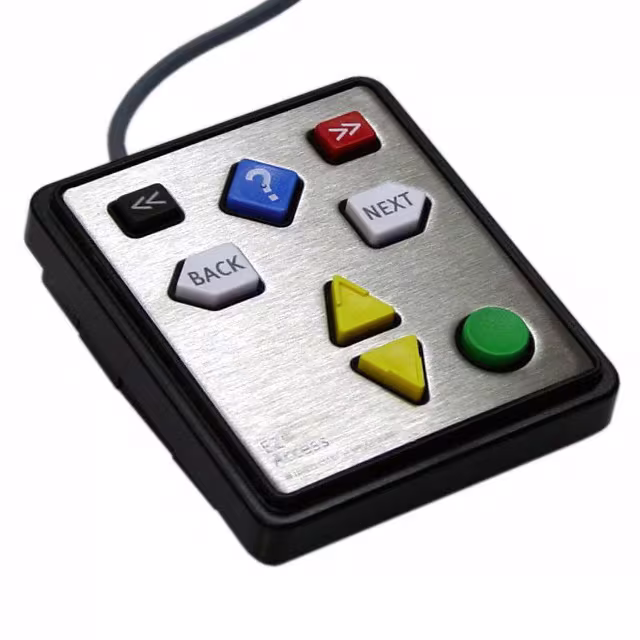

EZ08-222013SWITCH KEYPAD 8KEY NON-ILLUM |
2,885 |
|
Datasheet |
NAV-Pad™ | Bulk | Obsolete | Conductive Rubber | 8 | Non-Illuminated | Fixed | Polymer | - | USB | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -20°C ~ 60°C | Rectangular - 109.50mm x 95.50mm | - | - | Anti-Vandal |
|
|
1041.3500SWITCH KEYPAD 12KEY 0.05A 30V |
4,996 |
|
Datasheet |
- | Bulk | Obsolete | Conductive Rubber | 12 | Non-Illuminated | Fixed | Metal | 3 x 4 | Matrix | Telephone Format | Black | Silver | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | Cable with Connector | -25°C ~ 85°C | Rectangular - 100.50mm x 67.20mm | - | 0.05A @ 30VAC/DC | Anti-Vandal |
|
|
1041.6500SWITCH KEYPAD 12KEY 0.05A 30V |
3,327 |
|
Datasheet |
- | Bulk | Obsolete | Conductive Rubber | 12 | Non-Illuminated | Fixed | Metal | 3 x 4 | Matrix | Telephone Format | Black | Silver | Panel Mount, Rear | IP65 - Dust Tight, Water Resistant | Cable with Connector | -25°C ~ 85°C | Rectangular - 100.50mm x 67.20mm | - | 0.05A @ 30VAC/DC | Anti-Vandal |
|
|
EZ05-21001-3SWITCH KEYPAD 5KEY NON-ILLUM |
4,646 |
|
Datasheet |
NAV-Pad™ | Bulk | Obsolete | Conductive Rubber | 5 | Non-Illuminated | Fixed | Polymer | - | Matrix | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -20°C ~ 60°C | Rectangular - 109.50mm x 95.50mm | - | - | Anti-Vandal |
|
|
EZ08-21001-3SWITCH KEYPAD 8KEY NON-ILLUM |
4,251 |
|
Datasheet |
NAV-Pad™ | Bulk | Obsolete | Conductive Rubber | 8 | Non-Illuminated | Fixed | Polymer | - | Matrix | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -20°C ~ 60°C | Rectangular - 109.50mm x 95.50mm | - | - | Anti-Vandal |
|

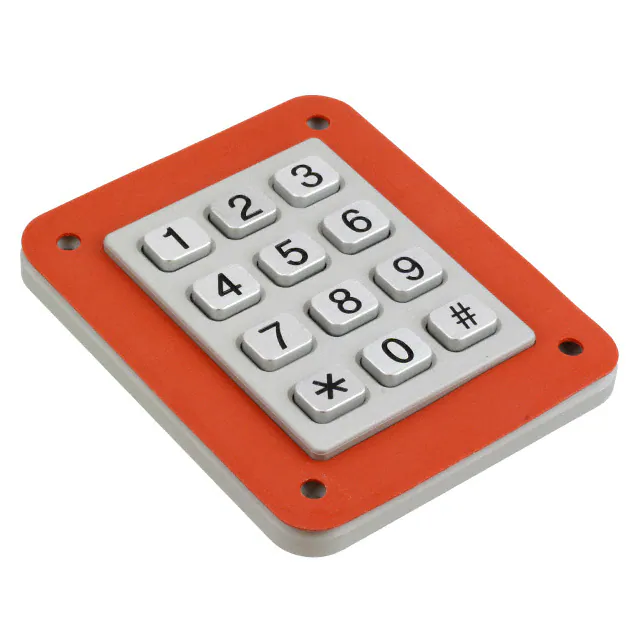

84R-AB2-112-PDSWITCH KEYPAD 12KEY 0.01A 24V |
2,316 |
|
Datasheet |
84R | Bulk | Obsolete | Snap Dome | 12 | Non-Illuminated | Fixed | Metal | 3 x 4 | Matrix | Telephone Format | Black | Silver | Panel Mount, Front or Rear | - | Pin Header | -55°C ~ 85°C | Rectangular - 83.57mm x 64.52mm | - | 0.01A @ 24VDC | Anti-Vandal |
|
84R-BB2-014-PDSWITCH KEYPAD 16KEY 0.01A 24V |
1,829 |
|
Datasheet |
84R | Bulk | Active | Snap Dome | 16 | Non-Illuminated | Fixed | Metal | 4 x 4 | Matrix | Telephone Format, A ~ F | Black | Silver | Panel Mount, Front or Rear | - | Pin Header | -55°C ~ 85°C | Square - 83.57mm² | - | 0.01A @ 24VDC | Anti-Vandal |
|
|
86YY3212B-517SWITCH KEYPAD 12 KEY CUSTOM |
1,197 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

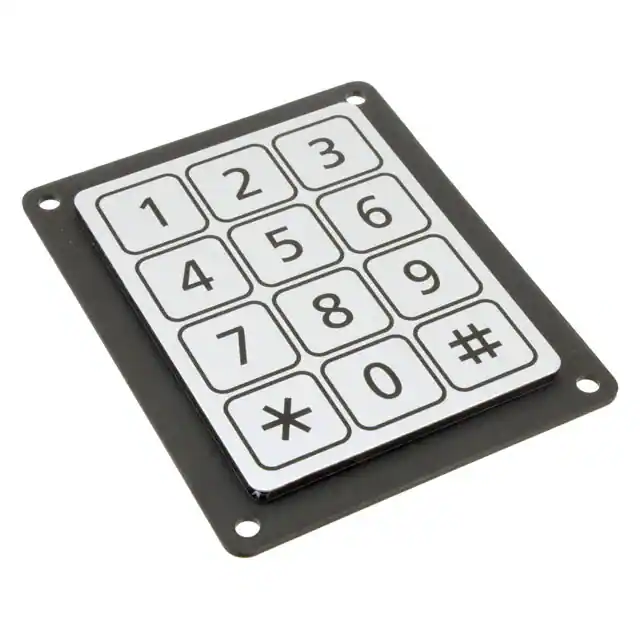

1068.1012.1110001SWITCH KEYPAD 12KEY 0.02A 50V |
3,499 |
|
Datasheet |
- | Bulk | Obsolete | Piezo | 12 | Illuminated | Fixed | Metal | 3 x 4 | Matrix | Telephone Format | Black | Silver | Panel Mount, Front or Rear | IP69K - Dust Tight, High Temp Water Jets, Waterproof | Pin Header | -25°C ~ 85°C | - | - | 0.02A @ 50VDC | Anti-Vandal |
|
|
1068.1016.1110001SWITCH KEYPAD 16KEY 0.02A 50V |
4,902 |
|
Datasheet |
- | Bulk | Obsolete | Piezo | 16 | Illuminated | Fixed | Metal | 4 x 4 | Matrix | Telephone Format, Function Keys | Black | Silver | Panel Mount, Front or Rear | IP69K - Dust Tight, High Temp Water Jets, Waterproof | Pin Header | -25°C ~ 85°C | - | - | 0.02A @ 50VDC | Anti-Vandal |
