LED Dot Matrix and Cluster
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Millicandela Rating | Internal Connection | Color | Configuration | Voltage - Forward (Vf) (Typ) | Size / Dimension | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTP-1457AKYLED MATRIX 5X7 1.2" AMBER-YELLOW |
2,533 |
|
Datasheet |
- | Tube | Active | 3.8mcd | Common Cathode Row, Common Anode Column | Amber-Yellow | 5 x 7 | 2.05V | 0.90" L x 1.25" W x 0.32" H (22.90mm x 31.80mm x 8.00mm) | - |
|
SSP-LXC04393LED POLYLED WHITE 3 CLUSTER .43" |
4,233 |
|
Datasheet |
- | Bulk | Obsolete | 2000mcd | - | White | 3 Round | 10.5V | 0.43" Dia x 0.39" H (11.00mm x 9.90mm) | - |
|

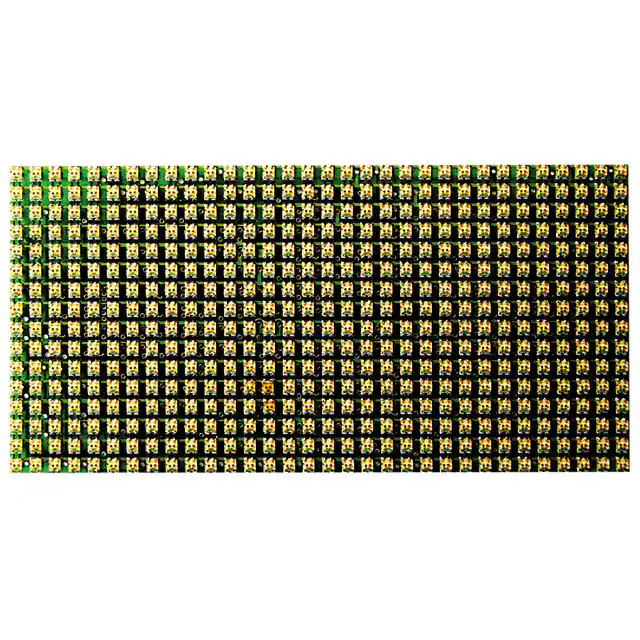

LTM-0124M-01LED DOT MATRIX G/R 16X32 3.14" |
4,564 |
|
Datasheet |
- | Bulk | Active | 6.4mcd Green, 10mcd Red | Common Anode Row, Common Cathode Column | Green, Red | 16 x 32 | 2V Green, 2V Red | 3.14" L x 1.56" W x 0.63" H (79.80mm x 39.80mm x 16.00mm) | Serial |
|
|
SSP-LXC0472UP4LED T-5MM 12MM RND 4LED ULT PGRN |
1,123 |
|
Datasheet |
- | - | Obsolete | 6000mcd | - | Green | 4 Round | 7V | 0.47" Dia x 0.39" H (12.00mm x 9.90mm) | - |
|
|
SSP-LXC12862S24ALED T-5MM 32.5MM RND 8SRD/16SGRN |
2,924 |
|
Datasheet |
- | Bulk | Obsolete | 2000mcd Red, 300mcd Green | - | 8 Red, 16 Green | 24 Round | 14.4V Red, 17.6V Green | 1.28" Dia x 0.42" H (32.50mm x 10.70mm) | - |
|
|
SSP-LXS0677U9LED T-5MM 17MM SQ 9LED ULT SBLU |
2,249 |
|
Datasheet |
- | Bulk | Obsolete | 4000mcd | Common Anode | Blue | 3 x 3 | 10.5V | 0.67" L x 0.67" W x 0.41" H (17.00mm x 17.00mm x 10.30mm) | - |
|
|
SSP-LXS06799LED T-5MM 17MM SQ 9LED WHITE |
1,474 |
|
Datasheet |
- | Bulk | Obsolete | 2000mcd | Common Anode | White | 3 x 3 | 10.5V | 0.67" L x 0.67" W x 0.41" H (17.00mm x 17.00mm x 10.30mm) | - |
|
|
LDM-12257MILED MATRIX 5X7 1.2" 565NM GRN CA |
3,623 |
|
Datasheet |
- | Bulk | Active | 2.5mcd | Common Cathode Row, Common Anode Column | Green | 5 x 7 | 2.2V | 0.90" L x 1.26" W x 0.32" H (22.90mm x 32.00mm x 8.00mm) | - |
|
LDM-12457NILED MATRIX 5X7 1.2" 630NM RED CA |
4,693 |
|
Datasheet |
- | Bulk | Active | 3.9mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 2V | 0.90" L x 1.26" W x 0.32" H (22.90mm x 32.00mm x 8.00mm) | - |
|
|
LDM-13488MILED MATRIX 8X8 1.3" 630NM RED CC |
3,597 |
|
Datasheet |
- | Bulk | Obsolete | 2mcd | Common Cathode Row, Common Anode Column | Red | 8 x 8 | 2V | 1.26" L x 1.26" W x 0.32" H (32.00mm x 32.00mm x 8.00mm) | - |
|
|
LDM-15457MILED MATRIX 5X7 1.5" 630NM RED CA |
2,905 |
|
Datasheet |
- | Bulk | Active | 2mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2V | 0.91" L x 1.54" W x 0.32" H (23.00mm x 39.10mm x 8.00mm) | - |
|
|
LDM-15657MILED MATRIX 5X7 1.5" 660NM SRD CA |
2,737 |
|
Datasheet |
- | Bulk | Active | 6mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 1.7V | 0.91" L x 1.54" W x 0.32" H (23.00mm x 39.10mm x 8.00mm) | - |
|
|
LDM-15657NILED MATRIX 5X7 1.5" 660NM SRD CC |
3,970 |
|
Datasheet |
- | Bulk | Active | 6mcd | Common Anode Row, Common Cathode Column | Red | 5 x 7 | 1.7V | 0.91" L x 1.54" W x 0.32" H (23.00mm x 39.10mm x 8.00mm) | - |
|
|
LDM-2124757NILED MATRIX 5X7 2.1" RD/GN/BLU CC |
2,640 |
|
Datasheet |
- | Bulk | Active | 2mcd Red, 2.5mcd Green, 2mcd Blue | Common Anode Row, Common Cathode Column | Red, Green, Blue (RGB) | 5 x 7 | 2V Red, 2.2V Green, 4.5V Blue | 1.50" L x 2.10" W x 0.33" H (38.10mm x 53.10mm x 8.40mm) | - |
|
|
LDM-21257MILED MATRIX 5X7 2.1" 565NM GRN CA |
4,290 |
|
Datasheet |
- | Bulk | Active | 2.5mcd | Common Cathode Row, Common Anode Column | Green | 5 x 7 | 2.2V | 1.50" L x 2.10" W x 0.33" H (38.10mm x 53.10mm x 8.40mm) | - |
|
|
LDM-21457MILED MATRIX 5X7 2.1" 630NM RED CA |
4,531 |
|
Datasheet |
- | Bulk | Active | 2mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 2V | 1.50" L x 2.10" W x 0.33" H (38.10mm x 53.10mm x 8.40mm) | - |
|
|
LDM-21657MILED MATRIX 5X7 2.1" 660NM SRD CA |
4,783 |
|
Datasheet |
- | Bulk | Active | 6mcd | Common Cathode Row, Common Anode Column | Red | 5 x 7 | 1.7V | 1.50" L x 2.10" W x 0.33" H (38.10mm x 53.10mm x 8.40mm) | - |
|
|
LDM-244288MILED MATRIX 8X8 2.4" RED/GRN CC |
1,324 |
|
Datasheet |
- | Bulk | Active | 2mcd Red, 2.5mcd Green | Common Cathode Row, Common Anode Column | Green, Red | 8 x 8 | 2V Red, 2.2V Green | 2.40" L x 2.40" W x 0.36" H (60.96mm x 60.96mm x 9.20mm) | - |
|
|
LDM-24488MILED MATRIX 8X8 2.4" 630NM RED CA |
3,271 |
|
Datasheet |
- | Bulk | Active | 2mcd | Common Cathode Row, Common Anode Column | Red | 8 x 8 | 2V | 2.40" L x 2.40" W x 0.36" H (60.96mm x 60.96mm x 9.20mm) | - |
|
|
LDM-24488NILED MATRIX 8X8 2.4" 630NM RED CC |
3,385 |
|
Datasheet |
- | Bulk | Active | 2mcd | Common Anode Row, Common Cathode Column | Red | 8 x 8 | 2V | 2.40" L x 2.40" W x 0.36" H (60.96mm x 60.96mm x 9.20mm) | - |
