Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
SDS001R SWITCH DETECT SPST-NO 100MA 12V C&K	7,640	-	RFQ Sell Excess Inventory	Datasheet	SDS	Tape & Reel (TR)	Active	SPST-NO	Off-Mom	-	12 V	Overtravel Plunger	100mA (DC)	Surface Mount, Right Angle	SMD (SMT) Tab	-	-	75gf	-	-	-	-	0.079" (2.0mm)	-40°C ~ 85°C
JJFV0UG380NONPRTR SWITCH DETECT SPST-NO 0.001A 5V TE Connectivity ALCOSWITCH Switches	38,449	-	RFQ Sell Excess Inventory	Datasheet	JJF	Tape & Reel (TR)	Active	SPST-NO	Off-Mom	-	5 V	Angled Toggle (Detector)	1mA (DC)	Surface Mount	Gull Wing	-	-	40gf	-	-	0.012" (0.3mm)	0.138" (3.5mm)	-	-10°C ~ 60°C
D2LS-11 SWITCH SNP ACT SPST-NO 0.001A 6V Omron Electronics Inc-EMC Div	10,397	-	RFQ Sell Excess Inventory	Datasheet	D2LS	Tape & Reel (TR)	Active	SPST-NO	Off-Mom	-	6 V	Round (Pin Plunger)	1mA (DC)	Surface Mount	SMD (SMT) Tab	IP40	Board Guide	122gf	0.005" (0.13mm)	15gf	-	0.126" (3.2mm)	0.004" (0.1mm)	-25°C ~ 85°C
KSU213W LFG SWITCH DETECTOR SPST-NO 10MA 50V C&K	29,395	-	RFQ Sell Excess Inventory	Datasheet	KSU	Tape & Reel (TR)	Active	SPST-NO	Off-Mom	50 V	50 V	Overtravel Plunger	10mA (AC/DC)	Surface Mount	Gull Wing	-	-	71gf	-	-	-	-	-	-40°C ~ 125°C
CL-DA-1CB4-A2T SWITCH DETECT SPST-NO 0.1A 12V Nidec Components Corporation	22,037	-	RFQ Sell Excess Inventory	Datasheet	CL-DA	Tape & Reel (TR)	Active	SPST-NO	Off-Mom	-	12 V	Overtravel Plunger	100mA (DC)	Surface Mount, Right Angle	Gull Wing	-	-	76gf	-	-	0.014" (0.35mm)	0.134" (3.4mm)	0.079" (2.0mm)	-40°C ~ 85°C
SS-5 SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	119,341	-	RFQ Sell Excess Inventory	Datasheet	SS	Tray	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Solder Lug	IP40	-	150gf	0.004" (0.1mm)	25gf	0.020" (0.5mm)	0.330" (8.4mm)	0.020" (0.5mm)	-25°C ~ 85°C
D2F-L SWITCH SNAP ACTION SPDT 3A 125V Omron Electronics Inc-EMC Div	9,568	-	RFQ Sell Excess Inventory	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	3A (AC), 2A (DC)	Through Hole	PC Pin	IP40	-	80gf	0.020" (0.5mm)	5.099gf	-	0.268" (6.8mm)	0.022" (0.55mm)	-40°C ~ 85°C
HDT0004 SWITCH DETECTOR SPST-NO 1MA 5V C&K	47,786	-	RFQ Sell Excess Inventory	Datasheet	HDT	Tape & Reel (TR)	Active	SPST-NO	Off-Mom	-	5 V	Angled Toggle (Detector)	1mA (DC)	Surface Mount	SMD (SMT) Tab	-	-	35gf	-	-	0.012" (0.3mm)	0.138" (3.5mm)	0.039" (1.0mm)	-40°C ~ 85°C
D2F-01L SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	101,677	-	RFQ Sell Excess Inventory	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	-	30 V	Lever, Straight	100mA (DC)	Through Hole	PC Pin	IP40	-	80gf	0.020" (0.5mm)	5.099gf	-	0.268" (6.8mm)	0.022" (0.55mm)	-40°C ~ 85°C
D3D-131 SWITCH SNAP ACT SPST-NO 1A 125V Omron Electronics Inc-EMC Div	3,661	-	RFQ Sell Excess Inventory	Datasheet	D3D	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Overtravel Plunger	1A (AC)	Panel Mount, Snap-In	Connector	IP00	White Actuator	204gf	-	-	-	0.472" (12.0mm)	-	-30°C ~ 60°C
SS-5GL13 SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	22,089	-	RFQ Sell Excess Inventory	Datasheet	SS	Tray	Active	SPDT	On-Mom	125 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Solder Lug	IP40	-	50gf	0.031" (0.8mm)	6.118gf	-	0.420" (10.7mm)	0.047" (1.2mm)	-25°C ~ 85°C
D2HW-A201D SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	9,714	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Tray	Active	SPDT	On-Mom	125 V	12 V	Round (Pin Plunger)	100mA (AC), 2A (DC)	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	76gf	0.010" (0.25mm)	10gf	-	0.409" (10.4mm)	0.055" (1.4mm)	-40°C ~ 85°C
AVL3825613-A SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	3,717	-	RFQ Sell Excess Inventory	Datasheet	AVL3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	55gf	0.032" (0.81mm)	3.500gf	0.110" (2.8mm)	0.345" (8.8mm)	0.047" (1.2mm)	-25°C ~ 85°C
D2F-FL SWITCH SNAP ACTION SPDT 1A 125V Omron Electronics Inc-EMC Div	14,943	-	RFQ Sell Excess Inventory	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	1A (AC), 500mA (DC)	Through Hole	PC Pin	IP40	-	75gf	0.020" (0.5mm)	2.039gf	-	0.268" (6.8mm)	0.022" (0.55mm)	-40°C ~ 85°C
LS0851505F250C1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	2,345	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	15A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	250gf	-	50gf	0.106" (2.7mm)	0.815" (20.7mm)	-	-25°C ~ 85°C

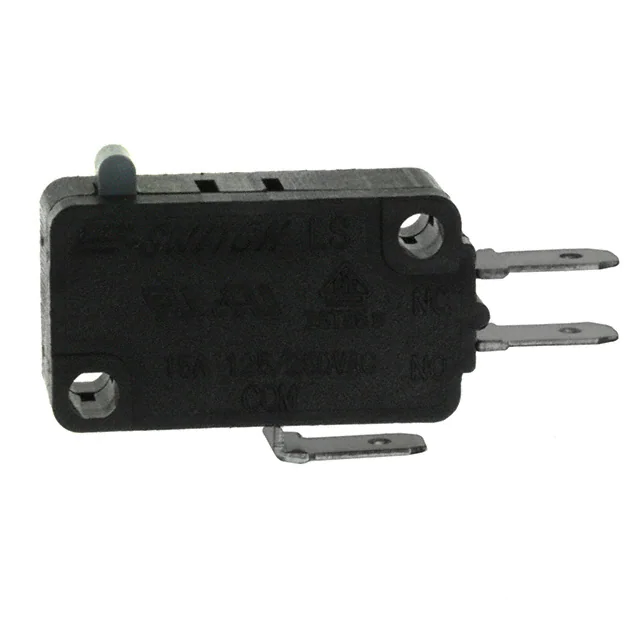

LS0851500F100C1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	2,325	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	100gf	-	30gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
SS-5GL2 SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	16,116	-	RFQ Sell Excess Inventory	Datasheet	SS	Tray	Active	SPDT	On-Mom	125 V	-	Lever, Roller	5A (AC)	Chassis Mount	Solder Lug	IP40	-	50gf	0.031" (0.8mm)	6.118gf	-	0.571" (14.5mm)	0.047" (1.2mm)	-25°C ~ 85°C
SS-5GL2T SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	1,998	-	RFQ Sell Excess Inventory	Datasheet	SS	Tray	Active	SPDT	On-Mom	125 V	-	Lever, Roller	5A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP40	-	50gf	0.031" (0.8mm)	6.118gf	-	0.571" (14.5mm)	0.047" (1.2mm)	-25°C ~ 85°C
AV404461 SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works	1,037	-	RFQ Sell Excess Inventory	Datasheet	AV4	Bulk	Active	SPDT	On-Mom	-	30 V	Lever, Simulated Roller	100mA (DC)	Chassis Mount	Solder Lug	-	-	29gf	0.027" (0.7mm)	-	0.087" (2.2mm)	0.264" (6.7mm)	0.011" (0.3mm)	-25°C ~ 80°C

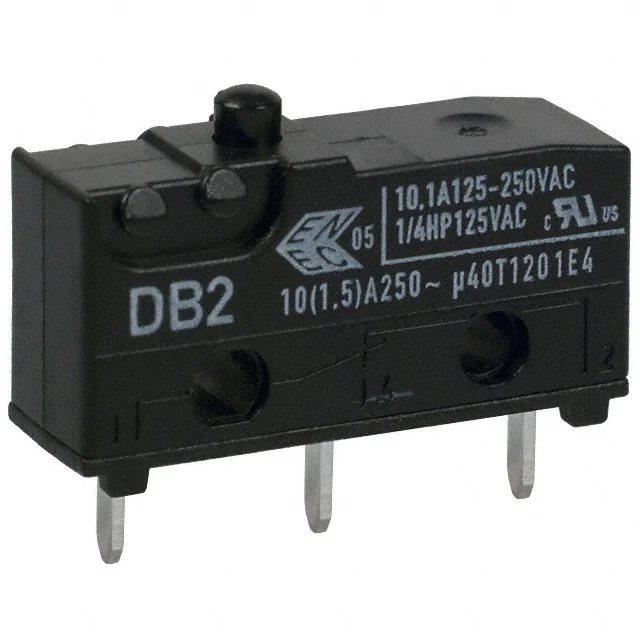

DB2CC1AA SWITCH SNAP ACTION SPDT 10A 125V ZF Electronics	5,876	-	RFQ Sell Excess Inventory	Datasheet	DB	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Through Hole	PC Pin	IP50 - Dust Protected	-	250gf	0.004" (0.1mm)	-	0.040" (1.0mm)	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 120°C
