Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
D449-R1RA-G2 SWITCH SNAP ACTION SPDT 10A 250V ZF Electronics	3,286	-	RFQ Sell Excess Inventory	Datasheet	D4	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	10A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	Explosion Proof	76gf	0.016" (0.4mm)	22gf	0.047" (1.2mm)	0.806" (20.5mm)	0.039" (1.0mm)	-40°C ~ 85°C
PP2-1U7-2B2 SWITCH DETECTOR DPDT 16A 125V E-Switch	5,709	-	RFQ Sell Excess Inventory	Datasheet	PP2	Bulk	Active	DPDT	On-Mom	125 V	-	Push-Pull Plunger	16A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	Pull On Lock	330gf	-	-	-	0.610" (15.5mm)	-	0°C ~ 85°C
D2VW-5L2-1HS SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	11,908	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Tray	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	120gf	0.031" (0.8mm)	15gf	0.157" (4.0mm)	0.815" (20.7mm)	0.062" (1.6mm)	-40°C ~ 85°C
V7-1C17D8-048 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	480	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	45gf	0.060" (1.5mm)	5.000gf	0.234" (5.9mm)	0.600" (15.2mm)	0.164" (4.2mm)	-40°C ~ 85°C
D2SW-3H SWITCH SNAP ACTION SPDT 3A 125V Omron Electronics Inc-EMC Div	689	-	RFQ Sell Excess Inventory	Datasheet	D2SW	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	3A (AC/DC)	Chassis Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	180gf	0.004" (0.1mm)	30gf	0.024" (0.6mm)	0.330" (8.4mm)	0.020" (0.5mm)	-40°C ~ 85°C
KDS33 SWITCH SNAP SPST-NC 0.4VA 20V C&K	551	-	RFQ Sell Excess Inventory	Datasheet	KDS	Bulk	Active	SPST-NC	On-Mom	20 V	20 V	Overtravel Plunger	0.4VA (AC/DC)	Chassis Mount	Wire Leads	-	-	-	-	-	-	-	-	-40°C ~ 85°C
V7-3E17D8-148 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	654	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	8.000gf	0.103" (2.6mm)	0.510gf	0.460" (11.7mm)	0.579" (14.7mm)	0.205" (5.2mm)	-40°C ~ 85°C
V15H22-CZ100A02-K SWITCH SNAP ACTION SPDT 22A 250V Honeywell Sensing and Productivity Solutions	1,158	-	RFQ Sell Excess Inventory	Datasheet	V15	Tray	Active	SPDT	On-Mom	250 V	-	Lever, Straight	22A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	60gf	0.047" (1.2mm)	10gf	0.125" (3.2mm)	0.602" (15.3mm)	0.051" (1.3mm)	-25°C ~ 150°C
D2F-L2 SWITCH SNAP ACTION SPDT 3A 125V Omron Electronics Inc-EMC Div	935	-	RFQ Sell Excess Inventory	Datasheet	D2F	Tray	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	3A (AC), 2A (DC)	Through Hole	PC Pin	IP40	-	80gf	0.020" (0.5mm)	5.099gf	-	0.512" (13.0mm)	0.022" (0.55mm)	-40°C ~ 85°C
ASKHC2T04AC SWITCH SNAP ACTION SPDT 15A 125V C&K	5,299	-	RFQ Sell Excess Inventory	Datasheet	A	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	15A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	113gf	-	14gf	0.312" (7.9mm)	0.312" (7.9mm)	0.187" (4.75mm)	-55°C ~ 85°C
KDS11 SWITCH SNAP SPST-NO 0.4VA 20V C&K	698	-	RFQ Sell Excess Inventory	Datasheet	KDS	Bulk	Active	SPST-NO	Off-Mom	20 V	20 V	Overtravel Plunger	0.4VA (AC/DC)	Chassis Mount	Wire Leads	-	-	-	-	-	0.180" (4.6mm)	-	0.224" (5.7mm)	-40°C ~ 85°C
V7-1C17E9-201 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	150	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	176gf	0.012" (0.3mm)	19gf	0.052" (1.32mm)	0.803" (20.4mm)	0.032" (0.81mm)	-40°C ~ 85°C
D2VW-5-1HS SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	15,211	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Tray	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	200gf	0.016" (0.4mm)	30gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-40°C ~ 85°C
D2HW-C202MR SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	3,328	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Round (Pin Plunger)	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	76gf	0.010" (0.25mm)	10gf	-	0.250" (6.4mm)	0.055" (1.4mm)	-40°C ~ 85°C

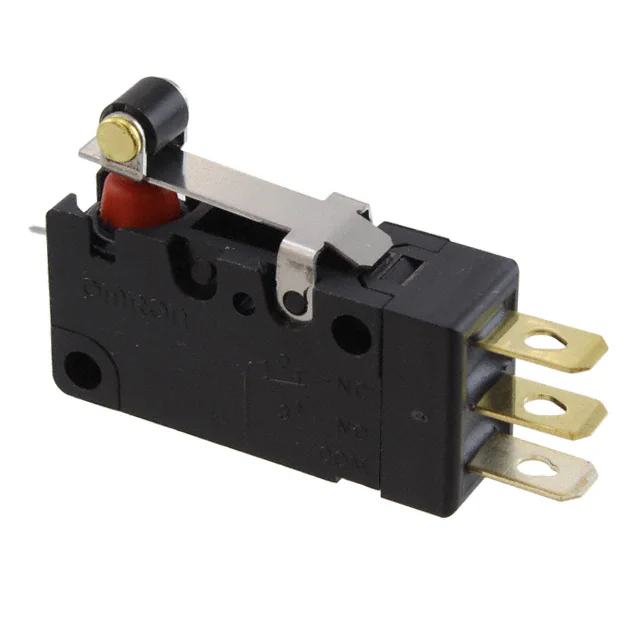

D2VW-5L2A-1HS SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	3,944	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	230gf	0.020" (0.5mm)	20gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-40°C ~ 85°C

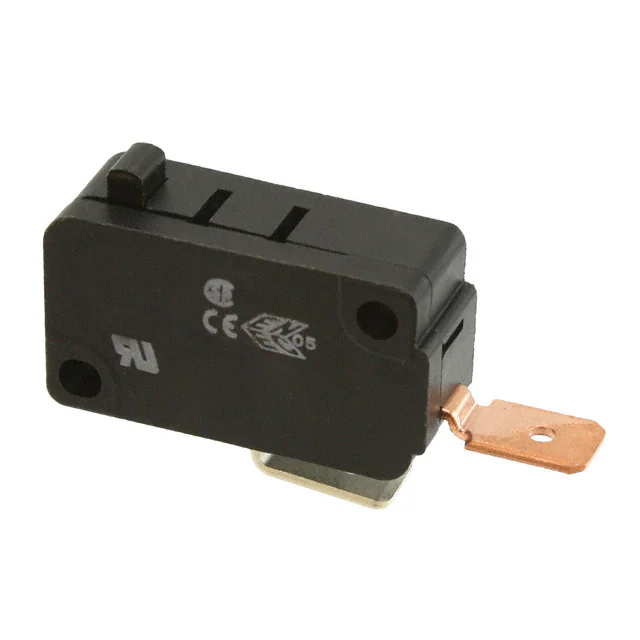

V7-1Z20E9 SWITCH SNAP ACT SPST-NO 25A 277V Honeywell Sensing and Productivity Solutions	240	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	277 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	225gf	0.010" (0.25mm)	20gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
D2HW-BL201M SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	262	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Tray	Active	SPDT	On-Mom	125 V	12 V	Round (Pin Plunger)	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	76gf	0.010" (0.25mm)	10gf	-	0.250" (6.4mm)	0.055" (1.4mm)	-40°C ~ 85°C
D449-R1ML-G2 SWITCH SNAP ACTION SPDT 10A 250V ZF Electronics	1,560	-	RFQ Sell Excess Inventory	Datasheet	D4	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	10A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	Explosion Proof	10gf	0.098" (2.5mm)	2.039gf	0.500" (12.7mm)	0.600" (15.2mm)	0.312" (7.9mm)	-40°C ~ 85°C
ABJ362860 SWITCH SNAP ACT SPST-NC 2A 125V Panasonic Electric Works	223	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Active	SPST-NC	On-Mom	125 V	30 V	Lever, Leaf	2A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	130gf	0.040" (1.0mm)	30gf	0.236" (6.0mm)	0.630" (16.0mm)	0.098" (2.5mm)	-40°C ~ 85°C
D2SW-01L2MS SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	1,348	-	RFQ Sell Excess Inventory	Datasheet	D2SW	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.031" (0.8mm)	6.118gf	-	0.571" (14.5mm)	0.040" (1.0mm)	-40°C ~ 85°C
