Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
SM3CQF3505L04 SWITCH LIMIT SPDT 5A 125V CIT Relay and Switch	4,765	-	RFQ Sell Excess Inventory	Datasheet	SM3	Bag	Active	SPDT	On-Mom	125 V	-	Lever, Straight	5A (AC)	Through Hole, Right Angle	PC Pin	-	-	50gf	0.047" (1.2mm)	22gf	0.256" (6.5mm)	0.413" (10.5mm)	0.059" (1.5mm)	-40°C ~ 120°C
SM3CQF3504L04 SWITCH LIMIT SPDT 5A 125V CIT Relay and Switch	4,165	-	RFQ Sell Excess Inventory	Datasheet	SM3	Bag	Active	SPDT	On-Mom	125 V	-	Lever, Straight	5A (AC)	Through Hole, Right Angle	PC Pin	-	-	50gf	0.047" (1.2mm)	22gf	0.256" (6.5mm)	0.413" (10.5mm)	0.059" (1.5mm)	-40°C ~ 120°C

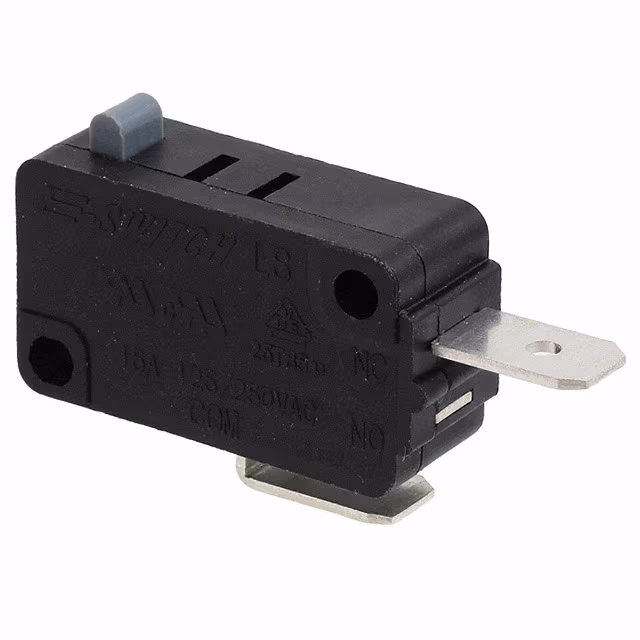

LS0851500F160C2B SWITCH SNAP ACT SPST-NC 15A 125V E-Switch	1,531	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NC	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	160gf	-	40gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F160V2A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	2,158	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	160gf	-	40gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C

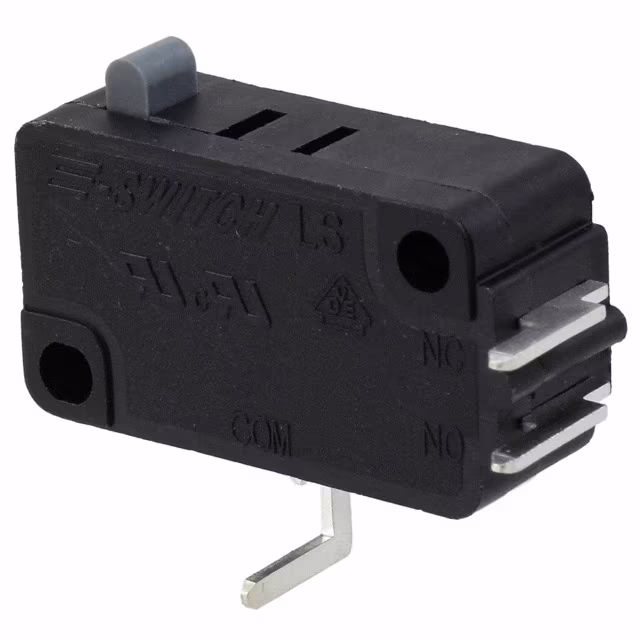

LS0851500F250V2A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	1,198	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	250gf	-	50gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F100V1C SWITCH SNAP ACT SPST-NO 15A 125V E-Switch	2,516	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	100gf	-	30gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F160V1C SWITCH SNAP ACT SPST-NO 15A 125V E-Switch	3,987	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	160gf	-	40gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
AVM34253-A SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	3,388	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Through Hole	PC Pin	-	-	55gf	0.032" (0.81mm)	3.500gf	0.110" (2.8mm)	0.345" (8.8mm)	0.047" (1.2mm)	-25°C ~ 85°C
DGG3-E7AA SWITCH SNAP SPDT 50MA PC MNT ZF Electronics	3,979	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LS0851506F120C2C SWITCH SNAP ACT SPST-NO 15A 125V E-Switch	4,733	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Lever, Roller	15A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	120gf	-	40gf	0.218" (5.5mm)	0.815" (20.7mm)	-	-25°C ~ 85°C
AVM3125613 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	2,726	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Solder Lug	IP40	-	55gf	0.031" (0.80mm)	3.467gf	0.110" (2.8mm)	0.346" (8.80mm)	0.047" (1.20mm)	-25°C ~ 85°C
AVM38253 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	2,433	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	55gf	0.031" (0.80mm)	3.467gf	0.110" (2.8mm)	0.346" (8.80mm)	0.047" (1.20mm)	-25°C ~ 85°C
AVM36353 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	2,988	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Through Hole, Right Angle	PC Pin	-	-	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.346" (8.80mm)	0.063" (1.6mm)	-25°C ~ 85°C
AVM3735 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	2,641	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Through Hole, Right Angle	PC Pin	-	-	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.346" (8.80mm)	0.063" (1.6mm)	-25°C ~ 85°C
AVM3145 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	3,243	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	5A (AC/DC)	Chassis Mount	Solder Lug	IP40	-	55gf	0.031" (0.80mm)	3.467gf	0.110" (2.8mm)	0.459" (11.65mm)	0.047" (1.20mm)	-25°C ~ 85°C
AVM38153 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	3,289	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	60gf	0.020" (0.5mm)	4.079gf	0.100" (2.5mm)	0.346" (8.80mm)	0.031" (0.8mm)	-25°C ~ 85°C
AVM37453 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	1,720	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	5A (AC/DC)	Through Hole, Right Angle	PC Pin	-	-	55gf	0.031" (0.80mm)	3.467gf	0.110" (2.8mm)	0.459" (11.65mm)	0.047" (1.20mm)	-25°C ~ 85°C
AVM3215 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	1,731	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	60gf	0.020" (0.5mm)	4.079gf	0.100" (2.5mm)	0.346" (8.80mm)	0.031" (0.8mm)	-25°C ~ 85°C
AVM37353 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	2,495	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Through Hole, Right Angle	PC Pin	-	-	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.346" (8.80mm)	0.063" (1.6mm)	-25°C ~ 85°C
AVM3235 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	2,284	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.346" (8.80mm)	0.063" (1.6mm)	-25°C ~ 85°C

Total 23871 Record«Prev 1... 437 438 439 440441442 443 444...1194 Next»
