Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
LS0851500F100V2B SWITCH SNAP ACT SPST-NC 15A 125V E-Switch	2,428	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NC	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	100gf	-	30gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F100V2C SWITCH SNAP ACT SPST-NO 15A 125V E-Switch	2,124	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	100gf	-	30gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F160C2C SWITCH SNAP ACT SPST-NO 15A 125V E-Switch	2,333	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	160gf	-	40gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F100V2A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	4,294	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	100gf	-	30gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F160V1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	1,473	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	160gf	-	40gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C

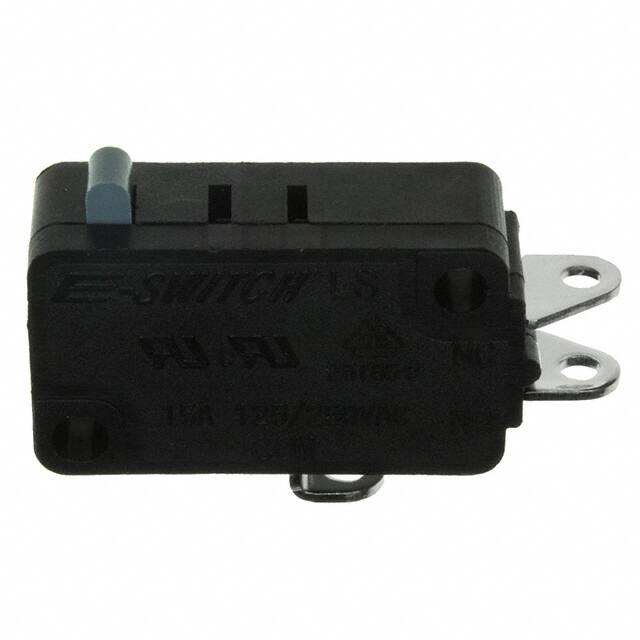

LS0851500F100S1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	1,483	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Solder Lug	-	-	100gf	-	30gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F160S1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	1,998	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Solder Lug	-	-	160gf	-	40gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F250C1B SWITCH SNAP ACT SPST-NC 15A 125V E-Switch	4,539	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NC	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	250gf	-	50gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F250C2C SWITCH SNAP ACT SPST-NO 15A 125V E-Switch	3,701	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	250gf	-	50gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F250S1C SWITCH SNAP ACT SPST-NO 15A 125V E-Switch	3,888	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Solder Lug	-	-	250gf	-	50gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F250V1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	3,338	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	250gf	-	50gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS0851500F250V1C SWITCH SNAP ACT SPST-NO 15A 125V E-Switch	4,028	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Through Hole, Right Angle	PC Pin	-	-	250gf	-	50gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
AVL3205619 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,126	-	RFQ Sell Excess Inventory	Datasheet	AVL3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Chassis Mount	Solder Lug	-	-	150gf	0.004" (0.1mm)	20gf	0.024" (0.6mm)	0.330" (8.4mm)	0.015" (0.4mm)	-25°C ~ 85°C
AVL32259 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	4,547	-	RFQ Sell Excess Inventory	Datasheet	AVL3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	55gf	0.032" (0.81mm)	3.500gf	0.110" (2.8mm)	0.345" (8.8mm)	0.047" (1.2mm)	-25°C ~ 85°C
AVL3405619 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	2,356	-	RFQ Sell Excess Inventory	Datasheet	AVL3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Through Hole	PC Pin	-	-	150gf	0.004" (0.1mm)	20gf	0.024" (0.6mm)	0.330" (8.4mm)	0.015" (0.4mm)	-25°C ~ 85°C
SS-5GL1373D SWITCH SNAP ACTION ROLLER LEVER Omron Electronics Inc-EMC Div	1,138	-	RFQ Sell Excess Inventory	Datasheet	SS	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SSG-5P SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	1,625	-	RFQ Sell Excess Inventory	Datasheet	SSG	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	5A (AC), 4A (DC)	Through Hole	PC Pin	IP40	-	153gf	0.004" (0.1mm)	25gf	0.024" (0.6mm)	0.465" (11.8mm)	0.015" (0.4mm)	-25°C ~ 125°C
SSG-5P-5 SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	3,709	-	RFQ Sell Excess Inventory	Datasheet	SSG	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	5A (AC), 4A (DC)	Through Hole	PC Pin	IP40	-	51gf	0.004" (0.1mm)	4.079gf	0.024" (0.6mm)	0.465" (11.8mm)	0.015" (0.4mm)	-25°C ~ 125°C
AV34043-A SWITCH SNAP ACTION SPDT 3A 125V Panasonic Electric Works	4,674	-	RFQ Sell Excess Inventory	Datasheet	AV3	Tube	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	3A (AC/DC)	Through Hole	PC Pin	-	-	100gf	0.004" (0.1mm)	15gf	0.024" (0.6mm)	0.330" (8.4mm)	0.015" (0.4mm)	-25°C ~ 85°C
AVM34353 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	3,240	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Through Hole	PC Pin	-	-	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.346" (8.80mm)	0.063" (1.6mm)	-25°C ~ 85°C

Total 23871 Record«Prev 1... 445 446 447 448449450 451 452...1194 Next»
