Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
VM3CQF1102L01 SWITCH LIMIT SPDT 16A 125V CIT Relay and Switch	2,012	-	RFQ Sell Excess Inventory	Datasheet	VM3	Tray	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	55gf	0.027" (0.7mm)	60gf	0.146" (3.7mm)	0.732" (18.6mm)	0.100" (2.5mm)	-40°C ~ 120°C
MAB7A SNAP ACTING SWITCH MA APEM Inc.	1,318	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MAA7A SNAP ACTING SWITCH MA APEM Inc.	3,555	-	RFQ Sell Excess Inventory	Datasheet	MA	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	20gf	0.016" (0.4mm)	-	0.047" (1.2mm)	0.578" (14.68mm)	0.059" (1.5mm)	-40°C ~ 85°C
MAI6A SNAP ACTING SWITCH MA APEM Inc.	4,821	-	RFQ Sell Excess Inventory	Datasheet	MA	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	343gf	0.016" (0.4mm)	-	0.047" (1.2mm)	0.578" (14.68mm)	0.059" (1.5mm)	-40°C ~ 85°C
MAL6A SNAP ACTING SWITCH MA APEM Inc.	4,441	-	RFQ Sell Excess Inventory	Datasheet	MA	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	343gf	0.016" (0.4mm)	-	0.047" (1.2mm)	0.578" (14.68mm)	0.059" (1.5mm)	-40°C ~ 85°C
MAK6A SNAP ACTING SWITCH MA APEM Inc.	2,743	-	RFQ Sell Excess Inventory	Datasheet	MA	Bulk	Active	SPST-NC	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	343gf	0.016" (0.4mm)	-	0.047" (1.2mm)	0.578" (14.68mm)	0.059" (1.5mm)	-40°C ~ 85°C
MAH7A SNAP ACTING SWITCH MA APEM Inc.	3,392	-	RFQ Sell Excess Inventory	Datasheet	MA	Bulk	Active	SPST-NC	On-Mom	250 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	20gf	0.016" (0.4mm)	-	0.047" (1.2mm)	0.578" (14.68mm)	0.059" (1.5mm)	-40°C ~ 85°C
MAJ6A SNAP ACTING SWITCH MA APEM Inc.	3,733	-	RFQ Sell Excess Inventory	Datasheet	MA	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	343gf	0.016" (0.4mm)	-	0.047" (1.2mm)	0.578" (14.68mm)	0.059" (1.5mm)	-40°C ~ 85°C
MAG7A SNAP ACTING SWITCH MA APEM Inc.	3,491	-	RFQ Sell Excess Inventory	Datasheet	MA	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	20gf	0.016" (0.4mm)	-	0.047" (1.2mm)	0.578" (14.68mm)	0.059" (1.5mm)	-40°C ~ 85°C
MAJ7A SNAP ACTING SWITCH MA APEM Inc.	1,253	-	RFQ Sell Excess Inventory	Datasheet	MA	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	20gf	0.016" (0.4mm)	-	0.047" (1.2mm)	0.578" (14.68mm)	0.059" (1.5mm)	-40°C ~ 85°C

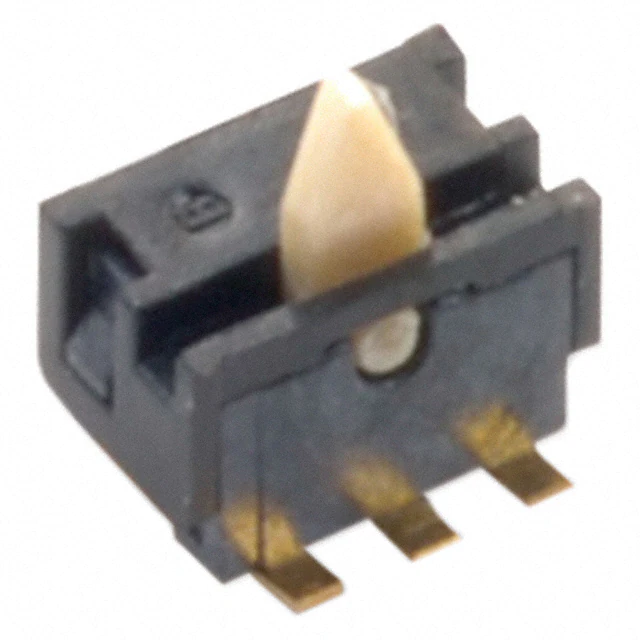

SDT001 SWITCH DETECTOR SPDT 1MA 5V C&K	2,792	-	RFQ Sell Excess Inventory	Datasheet	SDT	Tape & Reel (TR)	Obsolete	SPDT	Mom-Off-Mom	-	5 V	Angled Toggle (Detector)	1mA (DC)	Surface Mount	Gull Wing	-	-	30gf	-	-	-	-	-	-
V15H16-CZ100A03-K SWITCH SNAP ACTION SPDT 16A 250V Honeywell Sensing and Productivity Solutions	1,202	-	RFQ Sell Excess Inventory	Datasheet	V15	Tray	Obsolete	SPDT	On-Mom	250 V	-	Lever, Straight	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	30gf	0.094" (2.4mm)	5.000gf	0.252" (6.4mm)	0.602" (15.3mm)	0.102" (2.6mm)	-25°C ~ 150°C
V15H16-CZ300A03-K SWITCH SNAP ACTION SPDT 16A 250V Honeywell Sensing and Productivity Solutions	4,633	-	RFQ Sell Excess Inventory	Datasheet	V15	Tray	Obsolete	SPDT	On-Mom	250 V	-	Lever, Straight	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	90gf	0.094" (2.4mm)	15gf	0.252" (6.4mm)	0.602" (15.3mm)	0.102" (2.6mm)	-25°C ~ 150°C
V15H16-CZ200B04-K SWITCH SNAP ACTION SPDT 16A 250V Honeywell Sensing and Productivity Solutions	2,562	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Lever, Simulated Roller	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	70gf	0.062" (1.6mm)	15gf	0.219" (5.6mm)	0.730" (18.5mm)	0.098" (2.5mm)	-25°C ~ 150°C
DB1C-A1RB SWITCH SNAP ACTION SPDT 5A 125V ZF Electronics	1,913	-	RFQ Sell Excess Inventory	Datasheet	DB	Bulk	Active	SPDT	On-Mom	125 V	48 V	Lever, Roller	5A (AC), 1A (DC)	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	65gf	0.020" (0.5mm)	-	0.157" (4.0mm)	0.622" (15.8mm)	0.079" (2.0mm)	-40°C ~ 120°C
AH1862619-A SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	4,876	-	RFQ Sell Excess Inventory	Datasheet	AH1	Tube	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Through Hole, Right Angle	PC Pin	-	Actuator Mounted Left Side	50gf	0.020" (0.5mm)	5.099gf	0.083" (2.1mm)	0.268" (6.8mm)	0.022" (0.55mm)	-25°C ~ 85°C
AH1864619-A SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,643	-	RFQ Sell Excess Inventory	Datasheet	AH1	Tube	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	100mA (AC/DC)	Through Hole, Right Angle	PC Pin	-	Actuator Mounted Left Side	55gf	0.020" (0.5mm)	4.079gf	0.083" (2.1mm)	0.374" (9.5mm)	0.020" (0.5mm)	-25°C ~ 85°C
AH1884619-A SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	4,587	-	RFQ Sell Excess Inventory	Datasheet	AH1	Tube	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	100mA (AC/DC)	Through Hole, Right Angle	PC Pin	-	Actuator Mounted Left Side	26gf	0.020" (0.5mm)	2.039gf	0.083" (2.1mm)	0.374" (9.5mm)	0.020" (0.5mm)	-25°C ~ 85°C
LCA06150P00PC SWITCH SNAP ACTION SPDT 6A 125V C&K	1,007	-	RFQ Sell Excess Inventory	Datasheet	LCA	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	6A (AC)	Through Hole	PC Pin	-	-	150gf	0.008" (0.2mm)	25gf	0.043" (1.1mm)	0.340" (8.6mm)	0.015" (0.4mm)	-40°C ~ 125°C
LCA06150P00QC SWITCH SNAP ACTION SPDT 6A 125V C&K	2,275	-	RFQ Sell Excess Inventory	Datasheet	LCA	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	150gf	0.008" (0.2mm)	25gf	0.043" (1.1mm)	0.340" (8.6mm)	0.015" (0.4mm)	-40°C ~ 125°C

Total 23871 Record«Prev 1... 480 481 482 483484485 486 487...1194 Next»
