Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
ABS1510413 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,586	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Through Hole	PC Pin	IP50 - Dust Protected	-	100gf	0.004" (0.1mm)	15gf	0.024" (0.6mm)	0.331" (8.40mm)	0.015" (0.4mm)	-40°C ~ 85°C
SSG-01L1-3H SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	2,299	-	RFQ Sell Excess Inventory	Datasheet	SSG	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Solder Lug	IP40	-	61gf	0.031" (0.8mm)	6.118gf	-	0.345" (8.8mm)	0.040" (1.0mm)	-25°C ~ 125°C
LS0851500F250S1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	1,738	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Solder Lug	-	-	250gf	-	50gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
ZMCHM9T23T SWITCH SNAP ACT SPDT 200MA 60V C&K	4,795	-	RFQ Sell Excess Inventory	Datasheet	ZM	Tray	Active	SPDT	On-Mom	-	60 V	Lever, Simulated Roller	200mA (DC)	Through Hole	PC Pin	-	-	25gf	-	-	-	0.413" (10.5mm)	-	-30°C ~ 85°C

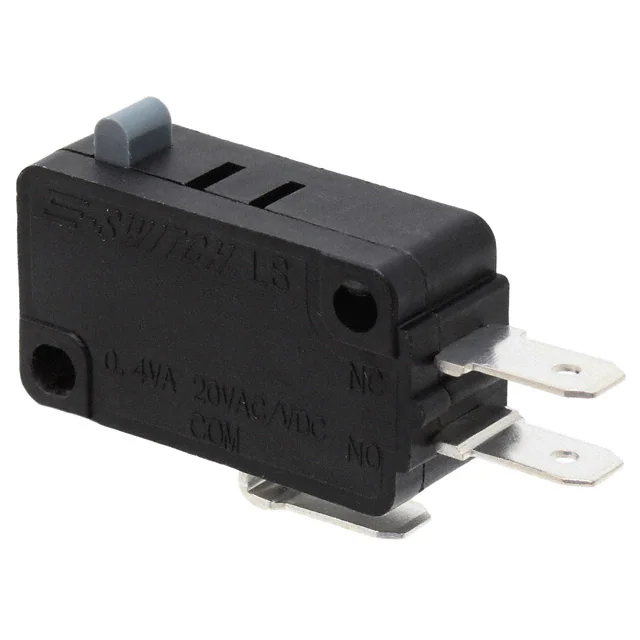

LS085R100F160C1A SWITCH SNAP ACT SPDT 0.4VA 20V E-Switch	1,763	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	20 V	20 V	Round (Pin Plunger)	0.4VA (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	160gf	-	40gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
LS085R100F160C2A SWITCH SNAP ACT SPDT 0.4VA 20V E-Switch	1,428	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPDT	On-Mom	20 V	20 V	Round (Pin Plunger)	0.4VA (AC/DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	160gf	-	40gf	0.080" (2.0mm)	0.579" (14.7mm)	-	-25°C ~ 85°C
PP1-EB7-2A2 SWITCH SNAP ACTION SPDT 16A 125V E-Switch	4,850	-	RFQ Sell Excess Inventory	Datasheet	PP1	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	16A (AC)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	-	White Actuator	300gf	-	-	-	0.738" (18.7mm)	-	0°C ~ 85°C
LS085R104F140C1C SWITCH SNP ACT SPST-NO 0.4VA 20V E-Switch	2,969	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	20 V	20 V	Lever, Simulated Roller	0.4VA (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	140gf	-	40gf	0.205" (5.2mm)	0.748" (19.0mm)	-	-25°C ~ 85°C
MWZ101C01B01X0167 SNAP ACTING SWITCH MB APEM Inc.	3,297	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZMSMH3130P00PRC SWITCH SNAP ACTION SPDT 3A 125V C&K	2,576	-	RFQ Sell Excess Inventory	Datasheet	ZMSM	Bulk	Active	SPDT	On-Mom	125 V	12 V	Round (Pin Plunger)	3A (AC/DC)	Through Hole	PC Pin	IP65 - Dust Tight, Water Resistant	-	130gf	0.012" (0.3mm)	13gf	0.030" (0.8mm)	0.266" (6.75mm)	0.069" (1.75mm)	-40°C ~ 85°C
ZM115C70C01-G SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	1,988	-	RFQ Sell Excess Inventory	Datasheet	ZM1	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	100mA (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP40	-	45gf	0.035" (0.9mm)	5.000gf	0.157" (4.0mm)	-	0.026" (0.7mm)	0°C ~ 85°C
MBZ101A01B08B01 SNAP ACTING SWITCH MB APEM Inc.	1,216	-	RFQ Sell Excess Inventory	Datasheet	MBZ	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Simulated Roller	10A (AC)	Chassis Mount	Solder Lug	-	-	285gf	0.040" (1.0mm)	-	0.197" (5.0mm)	0.646" (16.4mm)	0.059" (1.5mm)	-40°C ~ 85°C
V-16G-2C25 SWITCH SNAP ACT SPST-NC 16A 250V Omron Electronics Inc-EMC Div	3,115	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Obsolete	SPST-NC	On-Mom	250 V	125 V	Round (Pin Plunger)	16A (AC), 100mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	0.016" (0.4mm)	50gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
V-16-3C6(R2) SWITCH SNAP ACT SPST-NO 16A 250V Omron Electronics Inc-EMC Div	2,928	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPST-NO	Off-Mom	250 V	125 V	Round (Pin Plunger)	16A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	400gf	0.016" (0.4mm)	80gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
V-10G-3C24-K SWITCH SNAP ACT SPST-NO 10A 250V Omron Electronics Inc-EMC Div	4,297	-	RFQ Sell Excess Inventory	Datasheet	V	Tray	Obsolete	SPST-NO	Off-Mom	250 V	125 V	Round (Pin Plunger)	10A (AC), 100mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	100gf	0.016" (0.4mm)	20gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
AVM3235619-A SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	3,702	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Solder Lug	-	-	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.345" (8.8mm)	0.062" (1.6mm)	-25°C ~ 85°C
MAJ6C SNAP ACTING SWITCH MA APEM Inc.	4,617	-	RFQ Sell Excess Inventory	Datasheet	MA	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Straight	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	343gf	0.016" (0.4mm)	-	0.047" (1.2mm)	0.578" (14.68mm)	0.059" (1.5mm)	-40°C ~ 85°C
D2S-10L13 SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	2,981	-	RFQ Sell Excess Inventory	Datasheet	D2S	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Simulated Roller	10A (AC)	Chassis Mount	Solder Lug	IP40	Sealed - Flux Protection	50gf	0.031" (0.8mm)	6.118gf	-	0.449" (11.4mm)	0.040" (1.0mm)	-25°C ~ 85°C
D2SW-P01L2B SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	4,052	-	RFQ Sell Excess Inventory	Datasheet	D2SW-P	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	61gf	0.031" (0.8mm)	5.000gf	-	0.571" (14.5mm)	0.030" (0.76mm)	-20°C ~ 70°C
LS085R102F120C1C SWITCH SNP ACT SPST-NO 0.4VA 20V E-Switch	2,319	-	RFQ Sell Excess Inventory	Datasheet	LS	Bulk	Active	SPST-NO	Off-Mom	20 V	20 V	Lever, Straight	0.4VA (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	120gf	-	40gf	0.161" (4.1mm)	0.610" (15.5mm)	-	-25°C ~ 85°C

Total 23871 Record«Prev 1... 492 493 494 495496497 498 499...1194 Next»
