Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
XCMH2102L5 LS PL MINI MTL RLLR PLUNGR NCNO Telemecanique Sensors	4,256	-	RFQ Sell Excess Inventory	Datasheet	XCMH	Bulk	Active	DPST-NO/NC	On-Off, Off-On	240 V	250 V	Roller Plunger	750mA (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
GLDA07A2B SWITCH SNAP ACTION SPDT 0.1A 50V Honeywell Sensing and Productivity Solutions	1,017	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Obsolete	SPDT	On-Mom	50 V	50 V	Side Rotary, Adjustable Roller	100mA (AC/DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	Steel Roller	12gfm	12°	-	26°	26°	49°	-40°C ~ 85°C
XCMN2910L2 SWITCH LIMIT DPST-NC 1.5A 240V Telemecanique Sensors	3,318	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NC	On-Mom	240 V	250 V	Round (Pin Plunger)	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C

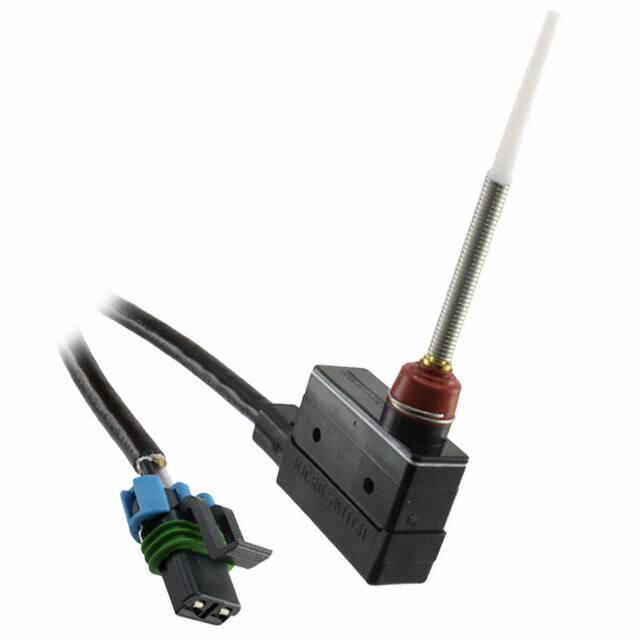

WZ-2RQW55-W104 SWITCH SNAP ACT SPST-NC 15A 125V Honeywell Sensing and Productivity Solutions	4,539	-	RFQ Sell Excess Inventory	Datasheet	WZ	Bulk	Active	SPST-NC	On-Mom	125 V	-	Spring, Rod	15A (AC)	Chassis Mount	Cable with Connector	Splash Proof	-	71gf	-	-	0.500" (12.7mm)	-	-	-55°C ~ 85°C
83240230 SWITCH SNAP ACTION DPST 6A 250V Crouzet	3,743	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	459gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
83240033 SWITCH SNAP ACTION DPST 6A 250V Crouzet	4,100	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Lever, Roller	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP40	-	275gf	0.070" (1.8mm)	-	-	0.654" (16.6mm)	-	-50°C ~ 85°C
83242230 SWITCH SNAP ACTION DPST 6A 250V Crouzet	4,268	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
BZ-RL59 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	4,041	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
600.8816.017 SWITCH LIMIT PLASTIC BODY Altech Corporation	2,401	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MT-4RV34-A28 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,882	-	RFQ Sell Excess Inventory	Datasheet	MT	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	10A (AC/DC)	Chassis Mount	Screw Terminal	-	-	58gf	0.085" (2.16mm)	14gf	0.500" (12.7mm)	0.750" (19.1mm)	0.047" (1.2mm)	-
GLDB01B SWITCH SNAP ACTION SPDT 6A 120V Honeywell Sensing and Productivity Solutions	2,210	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Active	SPDT	On-Mom	120 V	125 V	Round (Pin Plunger)	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	1632gf	0.035" (0.9mm)	-	0.120" (3.0mm)	0.710" (18.0mm)	0.118" (3.0mm)	-40°C ~ 85°C
Z-15GW22S55-MR 1M SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	1,402	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Cable Leads	IP62	-	-	-	-	-	-	-	-15°C ~ 80°C
Z-15GW55-MD 1M SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	3,381	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	15A (AC), 6A (DC)	Chassis Mount	Cable Leads	IP62	Cable Length 1m	100gf	0.080" (2.0mm)	14gf	-	0.748" (19.0mm)	0.219" (5.6mm)	-15°C ~ 80°C
D4N-3A2GR SWITCH SNAP ACTION DPST 10A 120V Omron Automation and Safety	3,699	-	RFQ Sell Excess Inventory	Datasheet	D4N-R	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Side Rotary, Adjustable Roller	10A (AC), 2.5A (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	571gf	-	-	18°	-	-	-30°C ~ 70°C
608.8103.001 SWITCH LIMIT Altech Corporation	3,353	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XCMN2121L5 SWITCH LIMIT DPST 1.5A 240V Telemecanique Sensors	4,667	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Lever, Roller	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
D4N-1B2HR SWITCH SNAP ACT DPST-NC 10A 120V Omron Automation and Safety	4,278	-	RFQ Sell Excess Inventory	Datasheet	D4N-R	Bulk	Obsolete	DPST-NC	On-Off	120 V	125 V	Side Rotary, Adjustable Roller	10A (AC), 2.5A (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	551gf	-	-	18°	-	-	-30°C ~ 70°C
D4N-1C32R SWITCH SNAP ACTION 3PST 10A 120V Omron Automation and Safety	2,390	-	RFQ Sell Excess Inventory	Datasheet	D4N-R	Bulk	Obsolete	3PST-2NC/1NO	On-Mom, Off-Mom	120 V	125 V	Roller Plunger	10A (AC), 2.5A (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	1101gf	-	-	0.080" (2.0mm)	1.748" (44.4mm)	-	-30°C ~ 70°C
608.6803.013 SWITCH LIMIT Altech Corporation	2,117	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
91MCE16-PBAQ SWITCH LIMIT Honeywell Sensing and Productivity Solutions	2,415	-	RFQ Sell Excess Inventory	Datasheet	91MCE	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
