Video Amps and Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Part Status | Applications | Output Type | 3 dB Bandwidth | Slew Rate | Current - Supply | Number of Circuits | Current - Output / Channel | Voltage - Supply, Single/Dual (±) | Mounting Style | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EL4501IU-T13IC AMP VFE 24QSOP |
3,975 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Video Front End (VFE) | - | 100 MHz | 96V/µs | 10.5 mA | 1 | 70 mA | 4.5V ~ 5.5V | Surface Mount | - | - | 24-QSOP |
|
|
EL4501IUZ-T13IC AMP VFE 24QSOP |
3,625 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Video Front End (VFE) | - | 100 MHz | 96V/µs | 10.5 mA | 1 | 70 mA | 4.5V ~ 5.5V | Surface Mount | - | - | 24-QSOP |
|
|
EL4501IUZ-T7IC AMP VFE 24QSOP |
1,199 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Video Front End (VFE) | - | 100 MHz | 96V/µs | 10.5 mA | 1 | 70 mA | 4.5V ~ 5.5V | Surface Mount | - | - | 24-QSOP |
|
EL4543IU-T13IC AMP DRIVER 24QSOP |
2,122 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Driver | Differential | 350 MHz | 1000V/µs | 14.5 mA | 3 | 60 mA | 5V ~ 12V, ±2.5V ~ 6V | Surface Mount | - | - | 24-QSOP |
|
|
EL4543IU-T7IC AMP DRIVER 24QSOP |
2,015 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Driver | Differential | 350 MHz | 1000V/µs | 14.5 mA | 3 | 60 mA | 5V ~ 12V, ±2.5V ~ 6V | Surface Mount | - | - | 24-QSOP |
|

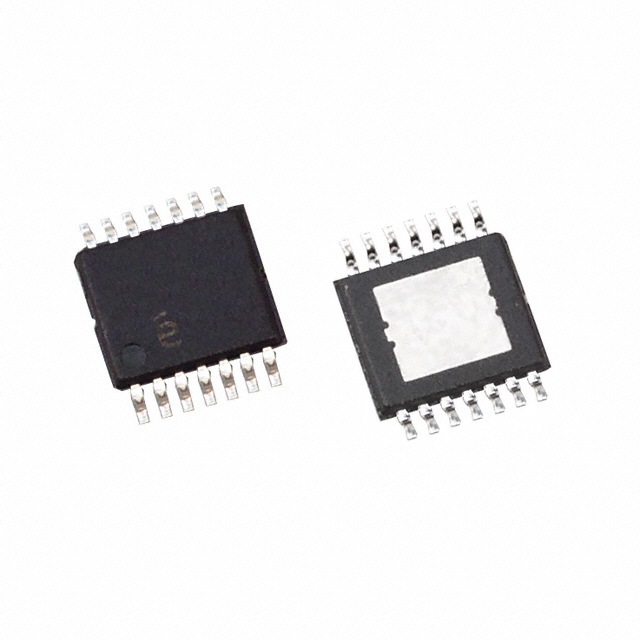

EL5524IREIC AMP TFT-LCD 14HTSSOP |
2,709 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tube | Obsolete | TFT-LCD Panels: Gamma Buffer, VCOM Driver | Rail-to-Rail | 12 MHz | 15V/µs | 5.4 mA | 4 | 140 mA | 4.5V ~ 16.5V, ±2.25V ~ 8.25V | Surface Mount | - | - | 14-HTSSOP |
|
EL8108ISIC AMP CURRENT FEEDBACK 8SOIC |
2,500 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Current Feedback | - | 200 MHz | 800V/µs | 14.3 mA | 2 | 450 mA | 5V ~ 12V, ±2.5V ~ 6V | Surface Mount | - | - | 8-SOIC |
|
HA3-5020-5IC AMP CURRENT FEEDBACK 8DIP |
3,374 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Current Feedback | - | 100 MHz | 1100V/µs | 7.5 mA | 1 | 31.7 mA | ±4.5V ~ 18V | Through Hole | - | - | 8-PDIP |
|
HA4600CB96IC AMP BUFFER 8SOIC |
4,371 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Buffer | - | 480 MHz | 1770V/µs | 10.5 mA | 1 | 20 mA | ±4.5V ~ 5.5V | Surface Mount | - | - | 8-SOIC |
|
HA4600CBZ96IC AMP BUFFER 8SOIC |
2,731 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Buffer | - | 480 MHz | 1770V/µs | 10.5 mA | 1 | 20 mA | ±4.5V ~ 5.5V | Surface Mount | - | - | 8-SOIC |
|
HA5023IBIC AMP CURRENT FEEDBACK 8SOIC |
3,543 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Current Feedback | - | 125 MHz | 350V/µs | 7.5 mA | 2 | 20 mA | ±4.75V ~ 18V | Surface Mount | - | - | 8-SOIC |
|
|
HA5023IB96IC AMP CURRENT FEEDBACK 8SOIC |
4,524 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Current Feedback | - | 125 MHz | 350V/µs | 7.5 mA | 2 | 20 mA | ±4.75V ~ 18V | Surface Mount | - | - | 8-SOIC |
|
|
HA5023IPIC AMP CURRENT FEEDBACK 8DIP |
2,992 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Current Feedback | - | 125 MHz | 350V/µs | 7.5 mA | 2 | 20 mA | ±4.75V ~ 18V | Through Hole | - | - | 8-PDIP |
|
HA5024IBZIC AMP CURRENT FEEDBACK 20SOIC |
4,388 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | Current Feedback | - | 125 MHz | 350V/µs | 7.5 mA | 4 | 20 mA | ±4.5V ~ 18V | Surface Mount | - | - | 20-SOIC |
|
|
HA9P5020-5X96IC AMP CURRENT FEEDBACK 8SOIC |
3,962 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Current Feedback | - | 100 MHz | 1100V/µs | 7.5 mA | 1 | 31.7 mA | ±4.5V ~ 18V | Surface Mount | - | - | 8-SOIC |
|
|
HA9P5020-5ZX96IC AMP CURRENT FEEDBACK 8SOIC |
1,649 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Current Feedback | - | 100 MHz | 1100V/µs | 7.5 mA | 1 | 31.7 mA | ±4.5V ~ 18V | Surface Mount | - | - | 8-SOIC |
|
|
HFA1105IBIC AMP CURRENT FEEDBACK 8SOIC |
3,358 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Current Feedback | - | 330 MHz | 1000V/µs | 5.8 mA | 1 | 60 mA | ±4.5V ~ 5.5V | Surface Mount | - | - | 8-SOIC |
|
|
HFA1105IB96IC AMP CURRENT FEEDBACK 8SOIC |
2,845 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Current Feedback | - | 330 MHz | 1000V/µs | 5.8 mA | 1 | 60 mA | ±4.5V ~ 5.5V | Surface Mount | - | - | 8-SOIC |
|
|
HFA1109IBIC AMP CURRENT FEEDBACK 8SOIC |
3,150 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Current Feedback | - | 450 MHz | 2600V/µs | 9.6 mA | 1 | 36 mA | ±4.5V ~ 5.5V | Surface Mount | - | - | 8-SOIC |
|
|
HFA1135IB96IC AMP CURRENT FEEDBACK 8SOIC |
2,217 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Current Feedback | - | 360 MHz | 1530V/µs | 6.9 mA | 1 | 60 mA | ±4.5V ~ 5.5V | Surface Mount | - | - | 8-SOIC |
