Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Logic Type | Number of Circuits | Schmitt Trigger Input | Output Type | Current - Output High, Low | Number of Inputs | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC725LC3CIC GATE XOR/XNOR 13DBPS 16QFN |
3,454 |
|
Datasheet |
- | 16-LFQFN Exposed Pad | Strip | Active | XOR/XNOR Gate | 1 | No | Differential, Single-Ended | - | 4 | -3V ~ -3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (3x3) |
|
|
HMC721LC3CIC GATE XOR/XNOR 13DBPS 16QFN |
4,422 |
|
Datasheet |
- | 16-LFQFN Exposed Pad | Strip | Active | XOR/XNOR Gate | 1 | No | Differential, Single-Ended | - | 4 | -3V ~ -3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (3x3) |
|

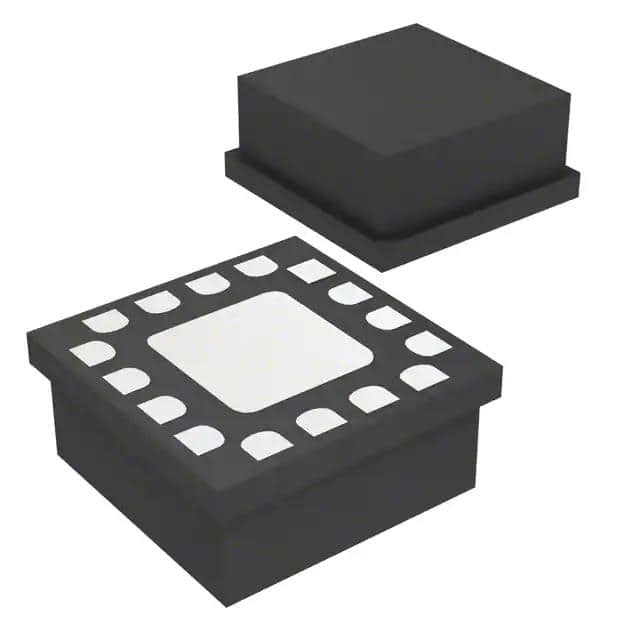

HMC722LC3CIC GATE AND/NAND/OR/NOR 16QFN |
2,745 |
|
Datasheet |
- | 16-LFQFN Exposed Pad | Strip | Active | AND/NAND/NOR/OR GATE | 1 | No | Differential, Single-Ended | - | 4 | -3V ~ -3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (3x3) |
|
NLV7SZ98DFT2GIC GATE MULTIFUNCT CONF SC-88 |
3,463 |
|
Datasheet |
7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | Yes | Single-Ended | 32mA, 32mA | 3 | 1.65V ~ 5.5V | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
MC74LVQ04DR2INVERTER, CMOS, PDSO14 |
20,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC14069UBFR1INVERTER |
8,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NL7SZ98DFT2GIC GATE MULTIFUNCT CONF SC-88 |
4,080 |
|
Datasheet |
7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | Yes | Single-Ended | 32mA, 32mA | 3 | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
74AUP1T58GW,125NEXPERIA 74AUP1T58GW - LOGIC CIR |
221,491 |
|
Datasheet |
74AUP | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | Configurable Multiple Function | 1 | Yes | Single-Ended | 4mA, 4mA | 3 | 2.3V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
NLX1G58BMX1TCGIC CONFIG MULTIPLE FUNCT 6ULLGA |
159,000 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Bulk | Obsolete | Configurable Multiple Function | 1 | No | Single-Ended | 32mA, 32mA | 3 | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|

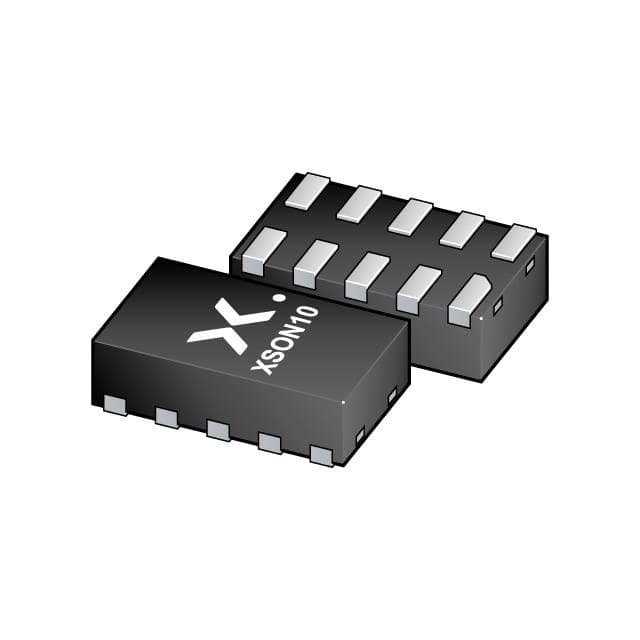

74AUP2G58GFXMAJORITY LOGIC GATE, AUP/ULP/V S |
95,000 |
|
Datasheet |
74AUP | 10-XFDFN | Bulk | Active | Configurable Multiple Function | 2 | Yes | Single-Ended | 4mA, 4mA | 3 | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-XSON (1.7x1) |
|
|
NLX1G98BMX1TCGIC CONFIG MULTIPLE FUNCT 6ULLGA |
48,000 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Bulk | Obsolete | Configurable Multiple Function | 1 | Yes | Single-Ended | 32mA, 32mA | 3 | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
74AUP1G58GS,132IC CONFIG MULTI-FUNC GATE 6XSON |
1,010 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | No | Single-Ended | 4mA, 4mA | 3 | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
NC7SZ57FHX-L22175IC GATE UHS UNIV 2INP 6MICROPAK2 |
3,813 |
|
Datasheet |
7SZ | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | Yes | Single-Ended | 32mA, 32mA | 3 | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
74AUP1G97GS,132NEXPERIA 74AUP1G97GS - LOWPOWER |
82,367 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74AXP1G58GM125MAJORITY LOGIC GATE, AXP SERIES |
369,630 |
|
Datasheet |
* | - | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74AXP1G97GM125MAJORITY LOGIC GATE, AXP SERIES |
230,000 |
|
Datasheet |
74AXP | 6-XFDFN | Bulk | Not For New Designs | Configurable Multiple Function | 1 | Yes | Single-Ended | 8mA, 8mA | 3 | 0.7V ~ 2.75V | -40°C ~ 85°C | - | - | Surface Mount | 6-XSON (1.45x1) |
|
|
NLX1G58CMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
201,000 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Bulk | Obsolete | Configurable Multiple Function | 1 | No | Single-Ended | 32mA, 32mA | 3 | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
|
NLX1G57CMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
200,938 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Bulk | Obsolete | Configurable Multiple Function | 1 | No | Single-Ended | 32mA, 32mA | 3 | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
|
NLX1G98CMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
150,000 |
|
Datasheet |
MiniGate™ | 6-XFLGA | Bulk | Obsolete | Configurable Multiple Function | 1 | Yes | Single-Ended | 32mA, 32mA | 3 | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
|
74AUP2G3404GM,125NOW NEXPERIA 74AUP2G3404GM - INV |
91,440 |
|
Datasheet |
74AUP | 6-XFDFN | Bulk | Active | Buffer/Inverter | 2 | No | Single-Ended | 4mA, 4mA | 2 Input (1, 1) | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1.45x1) |
