| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Protection | Detection Capability | Number of Beams | Beam Pitch | Operating Range | Protective Height | Features | Ingress Protection | Operating Temperature | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF4B-F31G(V2)LIGHT CURTAIN FINGER 14MM |
4,403 |
|
Datasheet |
SF4B | Box | Obsolete | Finger | 14mm | 31 | 10mm | 0.3m ~ 7.0m | 324mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-F39G(V2)LIGHT CURTAIN FINGER 14MM |
3,639 |
|
Datasheet |
SF4B | Box | Obsolete | Finger | 14mm | 39 | 10mm | 0.3m ~ 7.0m | 404mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-F47G(V2)LIGHT CURTAIN FINGER 14MM |
3,985 |
|
Datasheet |
SF4B | Box | Obsolete | Finger | 14mm | 47 | 10mm | 0.3m ~ 7.0m | 484mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-F55G(V2)LIGHT CURTAIN FINGER 14MM |
4,008 |
|
Datasheet |
SF4B | Box | Obsolete | Finger | 14mm | 55 | 10mm | 0.3m ~ 7.0m | 564mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-F63G(V2)LIGHT CURTAIN FINGER 14MM |
3,087 |
|
Datasheet |
SF4B | Box | Obsolete | Finger | 14mm | 63 | 10mm | 0.3m ~ 7.0m | 644mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-F71G(V2)LIGHT CURTAIN FINGER 14MM |
2,412 |
|
Datasheet |
SF4B | Box | Obsolete | Finger | 14mm | 71 | 10mm | 0.3m ~ 7.0m | 724mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-F79G(V2)LIGHT CURTAIN FINGER 14MM |
1,799 |
|
Datasheet |
SF4B | Box | Obsolete | Finger | 14mm | 79 | 10mm | 0.3m ~ 7.0m | 804mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-F95G(V2)LIGHT CURTAIN FINGER 14MM |
4,761 |
|
Datasheet |
SF4B | Box | Obsolete | Finger | 14mm | 95 | 10mm | 0.3m ~ 7.0m | 964mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
SF4B-H12G(V2)LIGHT CURTAIN HAND 25MM |
1,408 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 12 | 20mm | 0.3m ~ 9.0m | 244mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-H16G(V2)LIGHT CURTAIN HAND 25MM |
3,759 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 16 | 20mm | 0.3m ~ 9.0m | 324mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-H20G(V2)LIGHT CURTAIN HAND 25MM |
1,570 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 20 | 20mm | 0.3m ~ 9.0m | 404mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
.jpg)
|

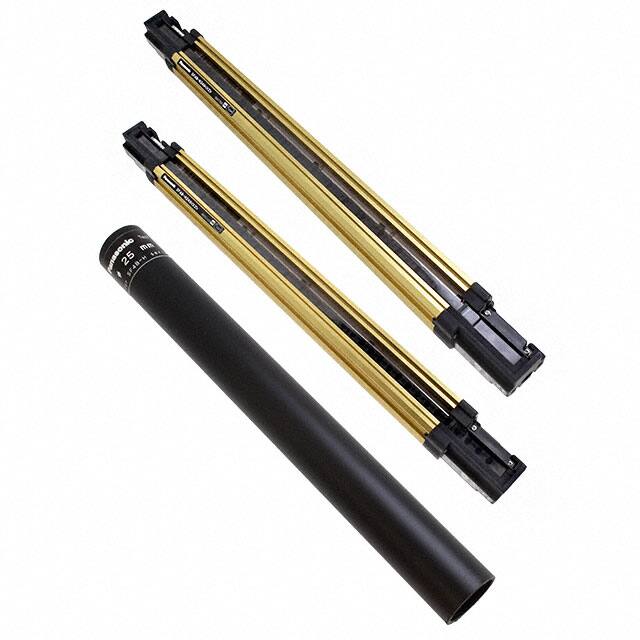

SF4B-H24G(V2)LIGHT CURTAIN HAND 25MM |
3,575 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 24 | 20mm | 0.3m ~ 9.0m | 484mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-H28G(V2)LIGHT CURTAIN HAND 25MM |
4,165 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 28 | 20mm | 0.3m ~ 9.0m | 564mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
.jpg)
|
SF4B-H32G(V2)LIGHT CURTAIN HAND 25MM |
1,102 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 32 | 20mm | 0.3m ~ 9.0m | 644mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-H36G(V2)LIGHT CURTAIN HAND 25MM |
4,015 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 36 | 20mm | 0.3m ~ 9.0m | 724mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
.jpg)
|

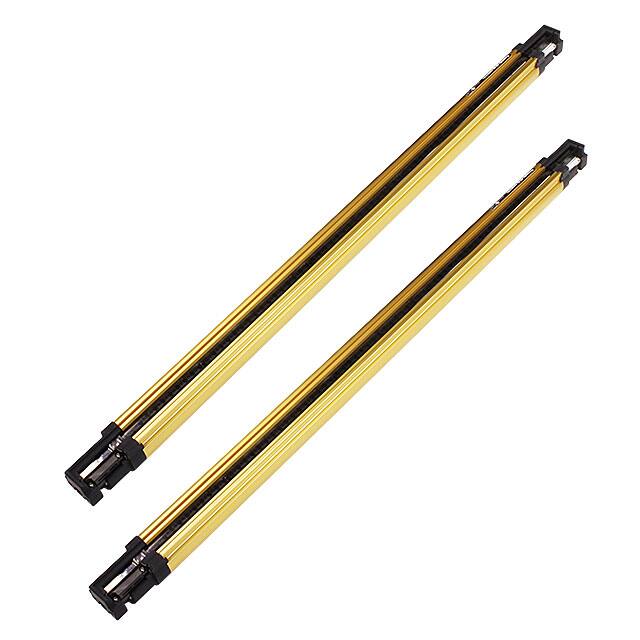

SF4B-H40G(V2)LIGHT CURTAIN HAND 25MM |
3,771 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 40 | 20mm | 0.3m ~ 9.0m | 804mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
.jpg)
|

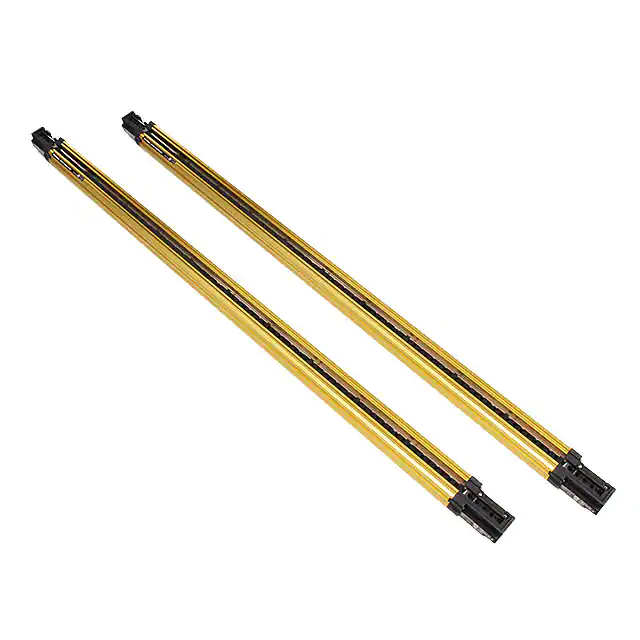

SF4B-H48G(V2)LIGHT CURTAIN HAND 25MM |
1,809 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 48 | 20mm | 0.3m ~ 9.0m | 964mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-H56G(V2)LIGHT CURTAIN HAND 25MM |
4,734 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 56 | 20mm | 0.3m ~ 9.0m | 1124mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|

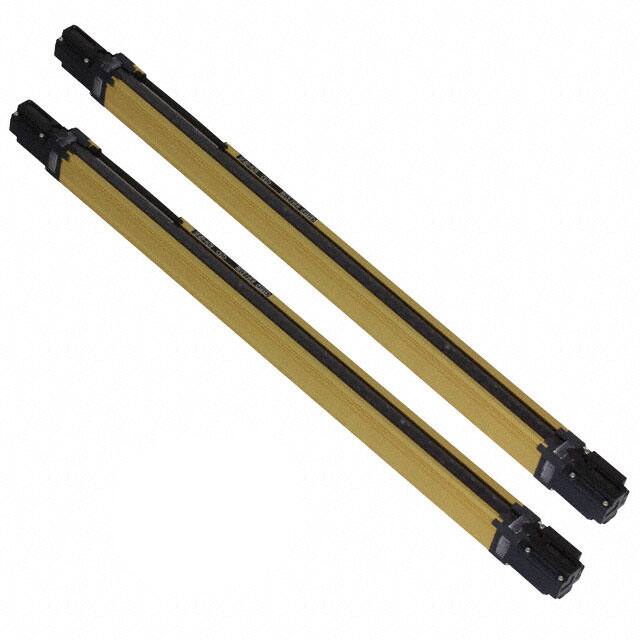

SF4B-H64G(V2)LIGHT CURTAIN HAND 25MM |
1,241 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 64 | 20mm | 0.3m ~ 9.0m | 1284mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
|
|
SF4B-H72G(V2)LIGHT CURTAIN HAND 25MM |
3,006 |
|
Datasheet |
SF4B | Box | Obsolete | Hand | 25mm | 72 | 20mm | 0.3m ~ 7.0m | 1444mm | Blanking, Muting Function | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C | 24VDC |
