Inclinometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Axis | Measuring Range | Bandwidth | Voltage Rating | Output Type | Sensitivity | Interface | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1116334INCLINATION SENSOR |
2,297 |
|
Datasheet |
TMS/TMM22 | Module | Bulk | Active | X, Y | ±10° | 2Hz | 12 V ~ 30 V | Current | - | Analog | -40°C ~ 80°C (TA) | - | - |
|

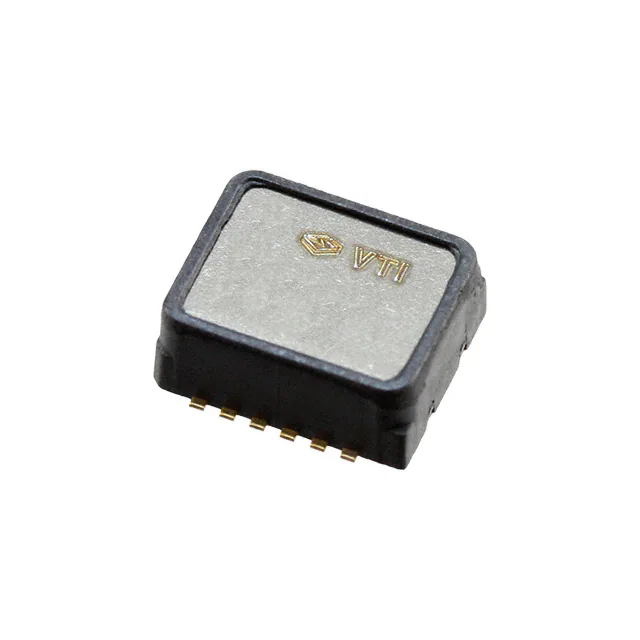

SCA830-D07-10SENSOR INCLINOMETER 180DEG 12SMD |
1,737 |
|
Datasheet |
- | 12-SMD | Tape & Reel (TR) | Active | X or Y | ±180° | 250Hz | 3 V ~ 3.6 V | Digital | 32000 counts/g | SPI | -40°C ~ 125°C | Automotive | AEC-Q100 |
|

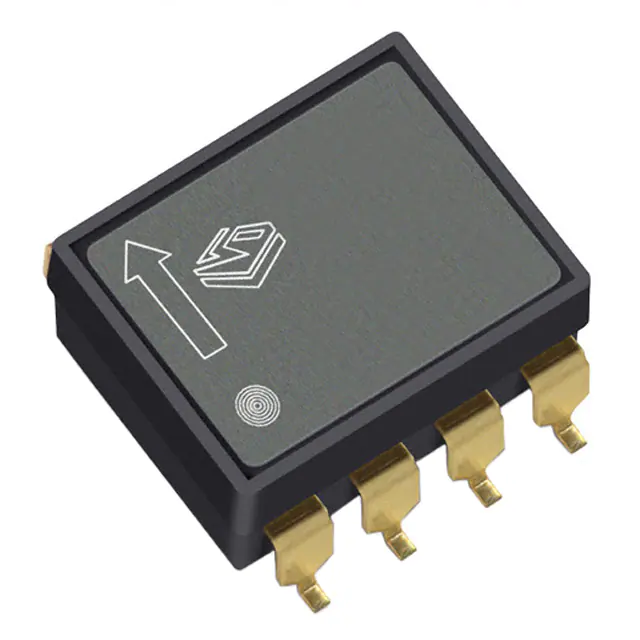

SCA61T-FA1H1G-6SENSOR INCLINOMETER 90DEG 8SMD |
4,797 |
|
Datasheet |
- | 8-SMD Module | Tape & Reel (TR) | Obsolete | X or Y | ±90° | 8 ~ 28Hz | 4.75 V ~ 5.25 V | Analog | 2V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
SCA61T-FAHH1G-6SENSOR INCLINOMETER 30DEG 8SMD |
1,775 |
|
Datasheet |
- | 8-SMD Module | Tape & Reel (TR) | Obsolete | X or Y | ±30° | 8 ~ 28Hz | 4.75 V ~ 5.25 V | Analog | 4V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
SCA830-D07-004SENSOR INCLINOMETER 90DEG 12SMD |
1,483 |
|
Datasheet |
- | 12-SMD, Flat Lead | Box | Active | Y | ±90° | 6.25Hz | 3 V ~ 3.6 V | Digital | 32000 counts/g | SPI | -40°C ~ 125°C | Automotive | AEC-Q100 |
|

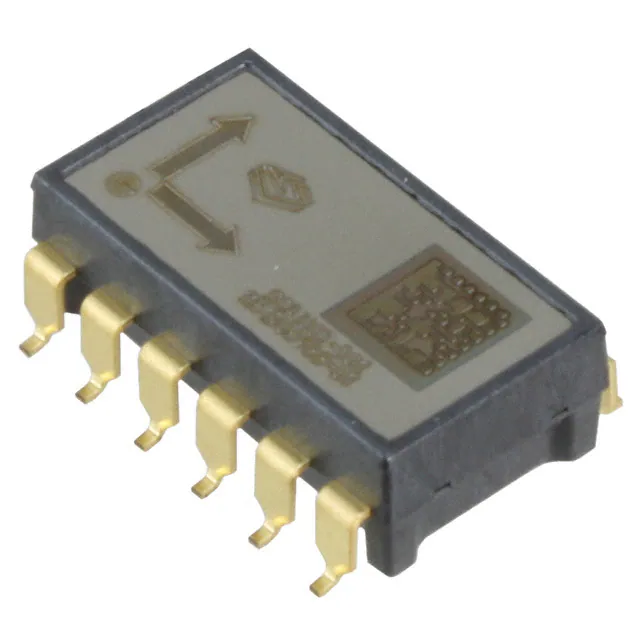

SCA100T-D01-6SENSOR INCLINOMETER 30DEG 12SMD |
1,092 |
|
Datasheet |
SCA100T | 12-SMD Module | Tape & Reel (TR) | Obsolete | X, Y | ±30° | 10Hz | 4.75 V ~ 5.25 V | Digital | 4V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
SCA100T-D02-6SENSOR INCLINOMETER 90DEG 12SMD |
4,009 |
|
Datasheet |
SCA100T | 12-SMD Module | Tape & Reel (TR) | Obsolete | X, Y | ±90° | 10Hz | 4.75 V ~ 5.25 V | Digital | 2V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|

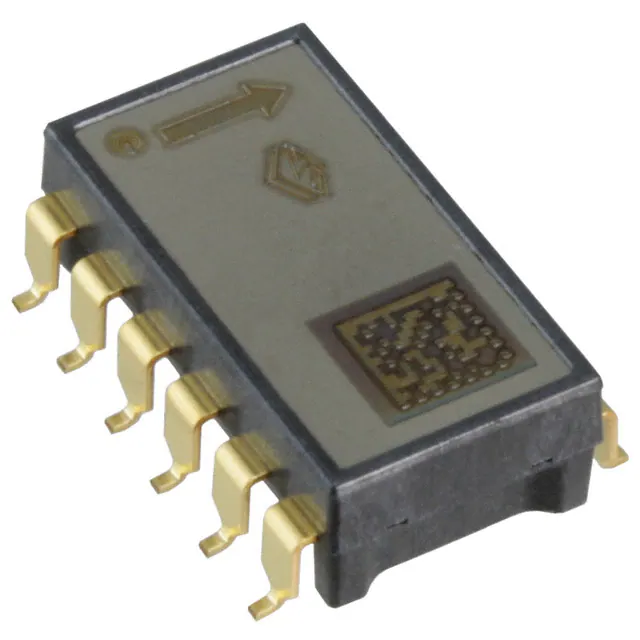

SCA103T-D04-6SENSOR INCLINOMETER 15DEG 12SMD |
3,772 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Obsolete | X or Y | ±15° | 8 ~ 28Hz | 4.75 V ~ 5.25 V | Analog | 16V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
SCA103T-D05-6SENSOR INCLINOMETER 30DEG 12SMD |
1,832 |
|
Datasheet |
- | 12-SMD Module | Tape & Reel (TR) | Obsolete | X or Y | ±30° | 8 ~ 28Hz | 4.75 V ~ 5.25 V | Analog | 8V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
SCL3300-D01-004SENSOR INCLINOMETER 90DEG 12SMD |
4,845 |
|
Datasheet |
SCL3300 | 12-SMD, Flat Lead | Bag | Active | X, Y, Z | ±90° | 70Hz | 3 V ~ 3.6 V | Digital | - | SPI | -40°C ~ 125°C | Automotive | AEC-Q100 |
|

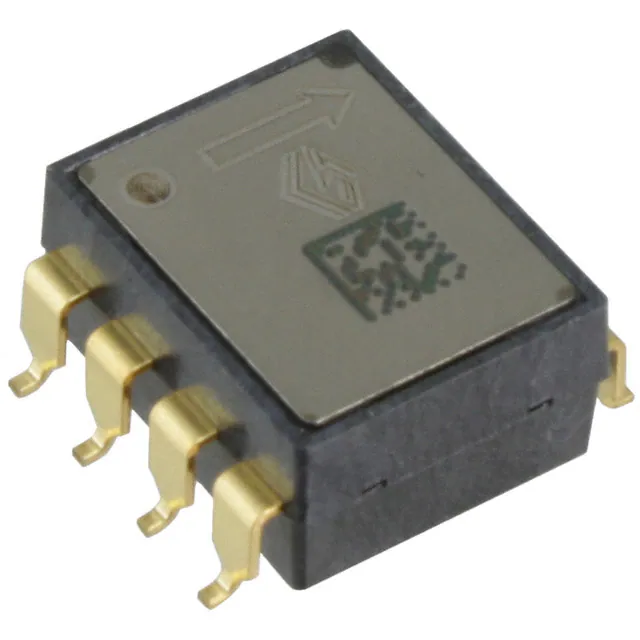

SCA61T-FAHH1G-1SENSOR INCLINOMETER 30DEG 8SMD |
1,732 |
|
Datasheet |
- | 8-SMD, L-Bend | Tape & Reel (TR) | Obsolete | X or Y | ±30° | 8 ~ 28Hz | 4.75 V ~ 5.25 V | Voltage | 4V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
SCA61T-FA1H1G-1SENSOR INCLINOMETER 90DEG 8SMD |
1,122 |
|
Datasheet |
- | 8-SMD, L-Bend | Tape & Reel (TR) | Obsolete | X or Y | ±90° | 8 ~ 28Hz | 4.75 V ~ 5.25 V | Voltage | 2V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
SCA103T-D04-1SENSOR INCLINOMETER 15DEG 12SMD |
3,415 |
|
Datasheet |
- | 12-SMD, L-Bend | Tape & Reel (TR) | Obsolete | X or Y | ±15° | 8 ~ 28Hz | 4.75 V ~ 5.25 V | Voltage | 16V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
SCA100T-D01-1SENSOR INCLINOMETER 30DEG 12SMD |
4,709 |
|
Datasheet |
- | 12-SMD, L-Bend | Tape & Reel (TR) | Obsolete | X, Y | ±30° | 8 ~ 28Hz | 4.75 V ~ 5.25 V | Voltage | 4V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
SCA100T-D02-1SENSOR INCLINOMETER 90DEG 12SMD |
4,302 |
|
Datasheet |
- | 12-SMD, L-Bend | Tape & Reel (TR) | Obsolete | X, Y | ±90° | 8 ~ 28Hz | 4.75 V ~ 5.25 V | Voltage | 2V/g | SPI | -40°C ~ 125°C (TA) | - | - |
|
|
G-NSMIS-0022 M CABLE SUBMIN.702-SERIES |
2,381 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
G-NSDOG2-002 W/CAL CERT G-NSMIS-005SENSOR INCLINOMETER 45DEG MODULE |
2,001 |
|
Datasheet |
MEMS | Module | Bulk | Active | X, Y | ±45° | 100Hz | 8 V ~ 30 V | Voltage | - | Analog | -40°C ~ 85°C | - | - |
|
|
G-NSDOG2-001 W/CAL CERT G-NSMIS-005SENSOR INCLINOMETER 25DEG MODULE |
1,861 |
|
Datasheet |
MEMS | Module | Bulk | Active | X, Y | ±25° | 100Hz | 8 V ~ 30 V | Voltage | - | Analog | -40°C ~ 85°C | - | - |
|
|
G-NSDOG2-200 W/CAL CERT G-NSMIS-005SENSOR INCLINOMETER 90DEG MODULE |
2,305 |
|
Datasheet |
MEMS | Module | Bulk | Active | X, Y | ±90° | 100Hz | 8 V ~ 30 V | Digital | - | CAN | -40°C ~ 85°C | - | - |
|
SCA115T-D03-ASENSOR INCLINOMETER 30DEG MODULE |
4,942 |
|
Datasheet |
- | Module | - | Obsolete | X or Y | ±30° | 18Hz | 7 V ~ 35 V | RS-485 | 0.035°/LSB | Serial | -40°C ~ 85°C (TA) | - | - |
