Vibration Sensors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Sensor Type | Sensing Range | Output Type | Power - Rated | Operating Temperature | Sensitivity | Features | Mounting Style | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VIM82PP-S1V16-21E-I422C28VIBRATION SENSOR |
4,004 |
|
Datasheet |
- | Module | Box | Active | Vibration | 10Hz ~ 1kHz | Analog | 24V / 100mA | -40°C ~ 60°C | - | - | Chassis Mount | Cable |
|
|
VIM82PP-S1V16-2BE-I422C28VIBRATION SENSOR |
4,978 |
|
Datasheet |
- | Module | Box | Active | Vibration | 10Hz ~ 1kHz | Analog | 24V / 100mA | -20°C ~ 60°C | - | - | Chassis Mount | Cable |
|
|
1364837WIL-SHM-S SENSOR |
3,878 |
|
Datasheet |
WIL | Module | Bulk | Active | Accelerometer | - | Analog | - | - | - | - | Chassis Mount | Connector |
|
|
D7A-1SENSOR VIBRATION VERT 90-170GAL |
3,455 |
|
Datasheet |
D7A | - | Tray | Active | Displacement | 90 ~ 170 gal | SPST-NO | 3V, 5µA ~ 3V, 1mA | -30°C ~ 70°C | - | - | Through Hole | PC Pins |
|
|
D7A-2SENSOR VIBRATION HORZ 90-170GAL |
4,643 |
|
Datasheet |
D7A | - | Tray | Active | Displacement | 90 ~ 170 gal | SPST-NO | 3V, 5µA ~ 3V, 1mA | -30°C ~ 70°C | - | - | Through Hole | PC Pins |
|
|
D7A-3SENSOR VIBRATION BRKT 90-170GAL |
3,850 |
|
Datasheet |
D7A | - | Bulk | Active | Displacement | 90 ~ 170 gal | SPST-NO | 3V, 5µA ~ 3V, 1mA | -30°C ~ 70°C | - | - | Chassis Mount | Wire Leads |
|
|
BU-27135-000ACCELEROMETER 1.5V LOW FREQ RESP |
4,320 |
|
Datasheet |
BU | Box | Bulk | Obsolete | Vibration, Acceleration | - | Voltage | - | - | -45dB ±4.5dB | - | Surface Mount | Solder Pads |
|

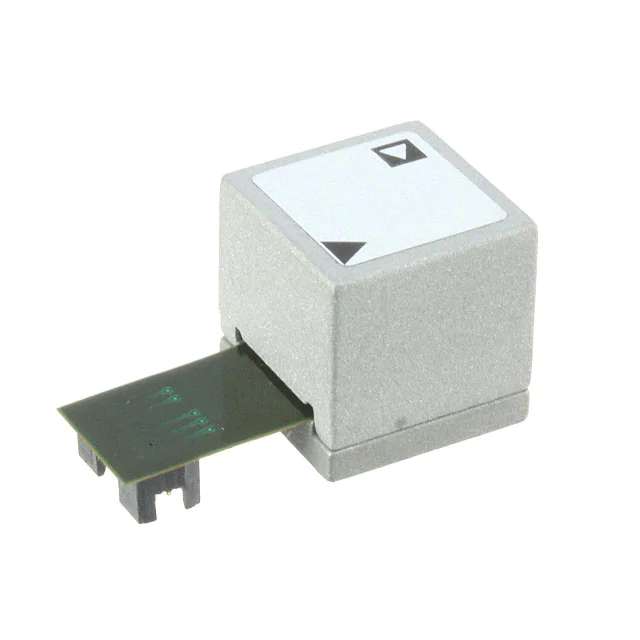

ADIS16223CMLZSENSOR VIBRATION -70+70G MODUL |
1,053 |
|
Datasheet |
iMEMS®, iSensor™ | 14-Module with Connector | Bulk | Obsolete | Vibration, Acceleration | -70 ~ 70 g | Digital | 3.15 V ~ 3.6 V / 43mA | -40°C ~ 125°C | 4.768mg/LSB | Programmable | Screw Mount | Rectangular Connector - 14 Pos |
|
V22BPIEZOELECTRIC ENERGY HARVESTER |
3,304 |
|
Datasheet |
Volture™ | Cantilever Piezo Film (Wafer) | Tray | Discontinued | Acceleration | 120Hz ~ 360Hz | Analog | - | -40°C ~ 90°C | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Through Hole | PC Pins |
|
V22BLPIEZOELECTRIC ENERGY HARVESTER |
4,362 |
|
Datasheet |
Volture™ | Cantilever Piezo Film (Wafer) | Tray | Discontinued | Acceleration | 26Hz ~ 110Hz | Analog | - | -40°C ~ 90°C | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Through Hole | PC Pins |
|
V21BPIEZOELECTRIC ENERGY HARVESTER |
2,898 |
|
Datasheet |
Volture™ | Cantilever Piezo Film (Wafer) | Tray | Discontinued | Acceleration | 80Hz ~ 205Hz | Analog | - | -40°C ~ 90°C | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Through Hole | PC Pins |
|
V21BLPIEZOELECTRIC ENERGY HARVESTER |
4,405 |
|
Datasheet |
Volture™ | Cantilever Piezo Film (Wafer) | Tray | Discontinued | Acceleration | 45Hz ~ 155Hz | Analog | - | -40°C ~ 90°C | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Through Hole | PC Pins |
|
V20WPIEZOELECTRIC ENERGY HARVESTER |
4,333 |
|
Datasheet |
Volture™ | Cantilever Piezo Film (Wafer) | Tray | Discontinued | Acceleration | 75Hz ~ 175Hz | Analog | - | -40°C ~ 90°C | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Through Hole | PC Pins |
|
V25WPIEZOELECTRIC ENERGY HARVESTER |
3,451 |
|
Datasheet |
Volture™ | Cantilever Piezo Film (Wafer) | Tray | Discontinued | Acceleration | 60Hz ~ 140Hz | Analog | - | -40°C ~ 90°C | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Through Hole | PC Pins |
|
ADIS16227CMLZSENSOR VIBRATION -70+70G MODUL |
3,255 |
|
Datasheet |
iMEMS®, iSensor™ | 14-Module with Connector | Box | Obsolete | Acceleration | -70 ~ 70 g | Digital | 3.15 V ~ 3.6 V / 43mA | -40°C ~ 125°C | 1.192mg/LSB | Programmable | Screw Mount | Rectangular Connector - 14 Pos |
|
PPA-1012PIEZO ENERGY HARVESTER 120NF |
4,922 |
|
Datasheet |
PPA | Cantilever Magneto Film (Wafer) | Tray | Discontinued | Vibration, Piezo Film | - | Voltage | - | - | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Chassis Mount | Solder Pads |
|
PPA-1014PIEZO ENERGY HARVESTER 40NF |
1,848 |
|
Datasheet |
PPA | Cantilever Magneto Film (Wafer) | Tray | Discontinued | Vibration, Piezo Film | - | Voltage | - | - | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Chassis Mount | Solder Pads |
|
PPA-1021PIEZO ENERGY HARVESTER 22NF |
1,472 |
|
Datasheet |
PPA | Cantilever Magneto Film (Wafer) | Tray | Discontinued | Vibration, Piezo Film | - | Voltage | - | - | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Chassis Mount | Solder Pads |
|
PPA-1022PIEZO ENERGY HARVESTER 7NF |
4,815 |
|
Datasheet |
PPA | Cantilever Magneto Film (Wafer) | Tray | Discontinued | Vibration, Piezo Film | - | Voltage | - | - | - | Piezoelectric Vibration Energy Harvesting, Hermetically Sealed | Chassis Mount | Solder Pads |
|
|
BB-HS-104T2505402SENSOR |
2,663 |
|
Datasheet |
- | Module | Bulk | Obsolete | Accelerometer | 0.3Hz ~ 10kHz | Voltage | - | -50°C ~ 125°C | 250mV/g | - | Chassis Mount | - |
