Navigation Switches, Joystick
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Actuator Type | Functions, Extra | Output | Voltage - Supply | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Contact Finish | Operating Temperature | Resistance | Termination Style | Mounting Style | Panel Cutout Dimensions | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SU11507AB881NA0SWITCH JOYSTICK DGTL 10A 500V |
3,121 |
|
Datasheet |
3SU1 | Box | Active | Joystick, 2 - Axis | Joystick | - | Digital (Mechanical Switch) | - | 360° Directional | 10A (AC/DC) | 500 V | 500 V | Silver Alloy | - | -25°C ~ 70°C | - | Screw Terminal | Panel Mount | Circular - 22.30mm Dia | IP65, IP67 - Dust Tight, Water Resistant, Waterproof | - |
|
TW08BLK12SWITCH THUMBWHEEL HALL EFFECT |
3,869 |
|
Datasheet |
TW | Bulk | Active | Thumbwheel, 1 - Axis | Thumbwheel | - | Analog (Hall Effect) | 5VDC | 2-Way Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | Rectangular - 36.60mm x 16.30mm | IP67 - Dust Tight, Waterproof | - |
|
|
TW09BLK12SWITCH THUMBWHEEL HALL EFFECT |
4,980 |
|
Datasheet |
TW | Bulk | Active | Thumbwheel, 1 - Axis | Thumbwheel | - | Analog (Hall Effect) | 5VDC | 2-Way Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | Rectangular - 36.60mm x 16.30mm | IP67 - Dust Tight, Waterproof | - |
|
A6X30141722SWITCH JOYSTICK DGTL 10A 500V |
4,297 |
|
Datasheet |
3SU1 | Box | Active | Joystick, 2 - Axis | Joystick | - | Digital (Mechanical Switch) | - | 360° Directional | 10A (AC/DC) | 500 V | 500 V | Silver Alloy | - | -25°C ~ 70°C | - | Screw Terminal | Panel Mount | Circular - 22.30mm Dia | IP65, IP67 - Dust Tight, Water Resistant, Waterproof | - |
|
A6X30142304SWITCH JOYSTICK DGTL 10A 500V |
1,543 |
|
Datasheet |
3SU1 | Box | Active | Joystick, 2 - Axis | Joystick | - | Digital (Mechanical Switch) | - | 360° Directional | 10A (AC/DC) | 500 V | 500 V | Silver Alloy | - | -25°C ~ 70°C | - | Screw Terminal | Panel Mount | Circular - 22.30mm Dia | IP65, IP67 - Dust Tight, Water Resistant, Waterproof | - |
|
|
A6X30141728SWITCH JOYSTICK DGTL 10A 500V |
1,823 |
|
Datasheet |
3SU1 | Box | Active | Joystick, 2 - Axis | Joystick | - | Digital (Mechanical Switch) | - | 360° Directional | 10A (AC/DC) | 500 V | 500 V | Silver Alloy | - | -25°C ~ 70°C | - | Screw Terminal | Panel Mount | Circular - 22.30mm Dia | IP65, IP67 - Dust Tight, Water Resistant, Waterproof | - |
|
45-1F14.1010.000.109SWITCH JOYSTICK DGTL 10A 500V |
3,489 |
|
Datasheet |
45 | Bulk | Active | Joystick, 2 - Axis | Joystick | - | Digital (Mechanical Switch) | - | 4-Way Directional | 10A (AC/DC) | 500 V | 500 V | Silver (Ag) | - | -25°C ~ 70°C | - | Screw Terminal | Panel Mount | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
45-1F27.1010.000.109SWITCH JOYSTICK DGTL 10A 500V |
2,974 |
|
Datasheet |
45 | Bulk | Active | Joystick, 2 - Axis | Joystick | - | Digital (Mechanical Switch) | - | 4-Way Directional | 10A (AC/DC) | 500 V | 500 V | Silver (Ag) | - | -25°C ~ 70°C | - | Screw Terminal | Panel Mount | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
M21L0G1PJOYSTICK RESISTIVE M |
3,406 |
|
Datasheet |
M | Bulk | Active | Joystick, 2 - Axis | Joystick | 1 Pushbutton | Analog (Resistive) | - | 4-Way Directional | - | - | - | - | - | -25°C ~ 70°C | 5 kOhms | Solder Lug | Panel Mount | Circular - 39.70mm Dia | - | - |
|

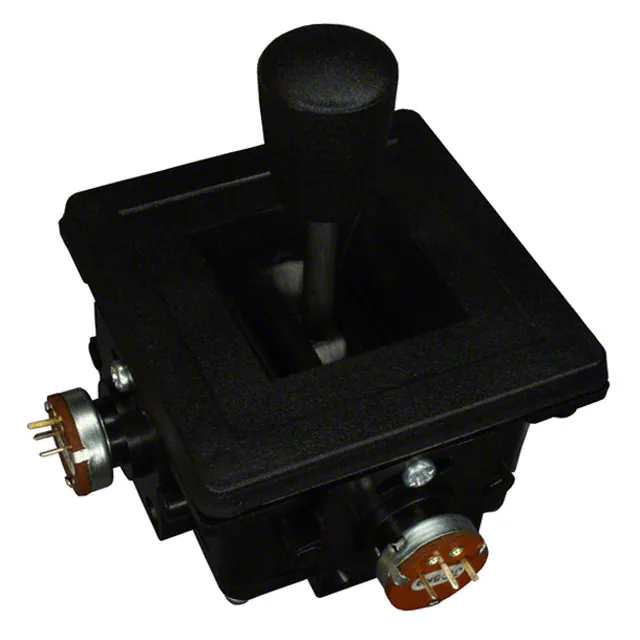

5S251S0F1000SWITCH JOYSTICK ANALOG 10V |
3,107 |
|
Datasheet |
5000 | Bulk | Obsolete | Joystick, 2 - Axis | Joystick | - | Analog (Resistive) | - | 4-Way Directional | - | - | 10 V | - | - | -10°C ~ 55°C | 5 kOhms | Pin Header | Panel Mount | Square - 33.50mm² | - | - |
|
3D2ZBE08480SWITCH JOYSTCK BALL TIP 10A 250V |
4,320 |
|
Datasheet |
1000HE | Bulk | Active | Joystick, 2 - Axis | Ball Tip | - | Digital (Mechanical Switch) | - | 8-Way Directional | 10A (AC) | 250 V | - | Silver (Ag) | - | -20°C ~ 50°C | - | Solder Lug | Panel Mount | Circular - 22.00mm Dia | IP67 - Dust Tight, Waterproof | - |
|
|
ARNL2-1010-20.00.20.00SWITCH MONO-LEVER 2 POSITION |
3,276 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARNL2-1010-11.00.11.00SWITCH MONO-LEVER 2 POSITION |
2,422 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARNL2-1020-20.00.20.00SWITCH MONO-LEVER 2 POSITION |
1,281 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3J2015-100SWITCH JOYSTICK DIGITAL |
2,143 |
|
Datasheet |
3J | Bulk | Obsolete | Joystick, 3 - Axis | Joystick | 5 Pushbuttons | Digital (Mechanical Switch) | 8 ~ 32VDC | 360° Directional, 360° Rotational, Center Select | - | - | - | - | - | -40°C ~ 85°C | - | Connector | Panel Mount | - | IP67 - Dust Tight, Waterproof | - |
|
|
3J1005-200NSWITCH NAVIGATION JOYSTICK DGTL |
1,869 |
|
Datasheet |
3J | Bulk | Active | Navigation Switch, 1 - Axis | Joystick | 5 Pushbuttons | Digital (Mechanical Switch) | 8 ~ 32VDC | 360° Rotational, Center Select | - | - | - | - | - | -40°C ~ 85°C | - | Connector | Panel Mount | - | IP67 - Dust Tight, Waterproof | - |
|
|
NZBB000FINGERTIP JOYSTICK NZ |
1,919 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
45-1F14.3010.000.109SWITCH JOYSTICK DGTL 10A 500V |
2,986 |
|
Datasheet |
45 | Bulk | Active | Joystick, 2 - Axis | Joystick | - | Digital (Mechanical Switch) | - | 4-Way Directional | 10A (AC/DC) | 500 V | 500 V | Silver (Ag) | - | -25°C ~ 70°C | - | Screw Terminal | Panel Mount | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
45-1F27.3010.000.109SWITCH JOYSTICK DGTL 10A 500V |
4,177 |
|
Datasheet |
45 | Bulk | Active | Joystick, 2 - Axis | Joystick | - | Digital (Mechanical Switch) | - | 4-Way Directional | 10A (AC/DC) | 500 V | 500 V | Silver (Ag) | - | -25°C ~ 70°C | - | Screw Terminal | Panel Mount | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
ARNL1-1010-10.00.10.00SWITCH MONO-LEVER 2 POSITION |
2,925 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
