Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Part Status	Wavelength	Color - Enhanced	Diode Type	Responsivity @ nm	Response Time	Spectral Range	Voltage - DC Reverse (Vr) (Max)	Current - Dark (Typ)	Active Area	Viewing Angle	Operating Temperature	Grade	Mounting Style	Qualification
040-101-411 SENSOR PHOTODIODE MICRO 1206 Advanced Photonix	1,717	-	RFQ Sell Excess Inventory	Datasheet	-	-	Tape & Reel (TR)	Active	-	-	-	-	-	300nm ~ 1100nm	50 V	500pA	-	-	-40°C ~ 105°C	-	Surface Mount	-
019-141-411-B SENSOR PHOTODIODE BLUE SMD Advanced Photonix	10,328	-	RFQ Sell Excess Inventory	Datasheet	-	-	Tape & Reel (TR)	Active	-	Blue	-	0.06 A/W @ 450nm	10ns	350nm ~ 1100nm	50 V	500pA	-	-	-40°C ~ 105°C	-	Surface Mount	-
019-141-411-R SENSOR PHOTODIODE RED MICRO SMD Advanced Photonix	6,867	-	RFQ Sell Excess Inventory	Datasheet	-	-	Tape & Reel (TR)	Active	-	Red	-	0.06 A/W @ 450nm	10ns	350nm ~ 1100nm	50 V	500pA	-	-	-40°C ~ 105°C	-	Surface Mount	-
SFH 2240 SENSOR PHOTODIODE 620NM 2SMD ams-OSRAM USA INC.	6,052	-	RFQ Sell Excess Inventory	Datasheet	Power TOPLED®	2-SMD, No Lead	Tape & Reel (TR)	Active	620nm	-	PIN	0.37 A/W @ 620nm	90ns	400nm ~ 690nm	16 V	1nA	7.02mm²	120°	-40°C ~ 100°C	-	Surface Mount	-
TEMD6010FX01 SENSOR PHOTODIODE 540NM SMD Vishay Semiconductor Opto Division	1,402	-	RFQ Sell Excess Inventory	Datasheet	-	-	Tape & Reel (TR)	Active	540nm	-	PIN	-	-	430nm ~ 610nm	16 V	2nA	0.27mm²	120°	-40°C ~ 100°C	-	Surface Mount	-
K857PE SENSOR PHOTODIODE 840NM 6VDFN Vishay Semiconductor Opto Division	969	-	RFQ Sell Excess Inventory	Datasheet	-	6-VDFN Exposed Pad	Tape & Reel (TR)	Active	840nm	-	PIN	-	30ns	690nm ~ 1050nm	20 V	1nA	1.6mm²	120°	-40°C ~ 110°C	Automotive	Surface Mount, Wettable Flank	AEC-Q101
SFH 2202 SENSOR PHOTODIODE 830NM 2SMD ams-OSRAM USA INC.	455	-	RFQ Sell Excess Inventory	Datasheet	TOPLED®	2-SMD, No Lead	Tape & Reel (TR)	Active	830nm	-	PIN	-	75ns	400nm ~ 1100nm	16 V	100pA	8.12mm²	120°	-40°C ~ 85°C	-	Surface Mount	-

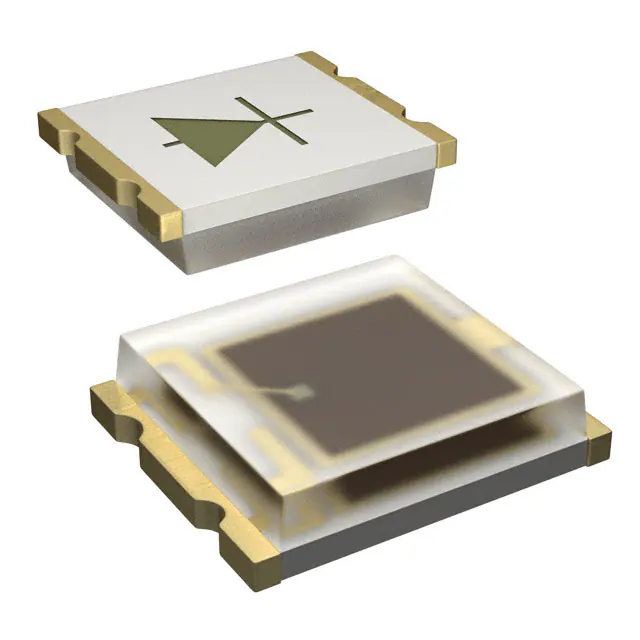

TEMD5510FX01 SENSOR PHOTODIODE 540NM SMD Vishay Semiconductor Opto Division	2,393	-	RFQ Sell Excess Inventory	Datasheet	-	-	Tape & Reel (TR)	Active	540nm	-	PIN	-	-	430nm ~ 610nm	16 V	2nA	7.5mm²	130°	-40°C ~ 100°C	-	Surface Mount	-
VEMD5510C SENSOR PHOTODIODE 550NM 4SMD Vishay Semiconductor Opto Division	979	-	RFQ Sell Excess Inventory	Datasheet	-	4-SMD, No Lead Exposed Pad	Tape & Reel (TR)	Last Time Buy	550nm	-	PIN	-	70ns	440nm ~ 700nm	-	200pA	7.5mm²	130°	-40°C ~ 100°C	-	Surface Mount	-
VEMD5510CF SENSOR PHOTODIODE 540NM 4SMD Vishay Semiconductor Opto Division	500	-	RFQ Sell Excess Inventory	Datasheet	-	4-SMD, No Lead Exposed Pad	Tape & Reel (TR)	Last Time Buy	540nm	-	PIN	-	70ns	440nm ~ 620nm	-	200pA	7.5mm²	130°	-40°C ~ 100°C	-	Surface Mount	-
PDB-C134F SENSOR PHOTODIODE 950NM RADIAL Advanced Photonix	4,103	-	RFQ Sell Excess Inventory	Datasheet	-	Radial, 3mm Dia (T-1)	Bulk	Active	950nm	Blue	PIN	-	10ns	700nm ~ 1100nm	100 V	2nA	1.538mm²	30°	-40°C ~ 80°C	-	Through Hole	-
VEMD8081 SENSOR PHOTODIODE 840NM 8SMD Vishay Semiconductor Opto Division	3,433	-	RFQ Sell Excess Inventory	Datasheet	-	8-SMD, No Lead	Tape & Reel (TR)	Active	840nm	-	PIN	-	110ns	350nm ~ 1100nm	20 V	500pA	5.4mm²	130°	-40°C ~ 85°C	-	Surface Mount	-
GUVA-C22SD SENSOR PHOTODIODE 2SMD Genicom Co., Ltd.	5,422	-	RFQ Sell Excess Inventory	Datasheet	-	2-SMD, No Lead	Tape & Reel (TR)	Active	-	Ultraviolet (UV)	Schottky	0.14 A/W @ 350nm	-	240nm ~ 370nm	5 V	1nA (Max)	0.076mm²	-	-30°C ~ 85°C	-	Surface Mount	-
GVBL-S12SD SENSOR PHOTODIODE 2SMD Genicom Co., Ltd.	871	-	RFQ Sell Excess Inventory	Datasheet	-	2-SMD, J-Lead	Tape & Reel (TR)	Active	-	Ultraviolet (UV)	-	0.68 A/W @ 405nm	-	345nm ~ 450nm	5 V	1nA (Max)	-	-	-30°C ~ 85°C	-	Surface Mount	-
GVGR-S11SD SENSOR PHOTODIODE 295-490NM 2SMD Genicom Co., Ltd.	261	-	RFQ Sell Excess Inventory	Datasheet	-	2-SMD, J-Lead	Tape & Reel (TR)	Active	-	Ultraviolet (UV)	-	0.07 A/W @ 405nm	-	295nm ~ 490nm	5 V	1nA (Max)	-	-	-30°C ~ 85°C	-	Surface Mount	-
VEMD8082 PIN PHOTODIODE PACKAGE SIZE OF 4 Vishay Semiconductor Opto Division	235	-	RFQ Sell Excess Inventory	Datasheet	-	8-SMD, No Lead	Tape & Reel (TR)	Active	890nm	Infrared (NIR)	PIN	-	40ns	350nm ~ 1100nm	20 V	200pA	6mm²	130°	-40°C ~ 85°C	-	Surface Mount	-
GUVB-C21SD SENSOR PHOTODIODE 240-320NM 2SMD Genicom Co., Ltd.	5,360	-	RFQ Sell Excess Inventory	Datasheet	-	2-SMD, No Lead	Tape & Reel (TR)	Active	-	Ultraviolet (UV)	Schottky	0.11 A/W @ 300nm	-	240nm ~ 320nm	3 V	1nA (Max)	0.08mm²	-	-30°C ~ 85°C	-	Surface Mount	-
PDB-C142 SENSOR PHOTODIODE 660NM RADIAL Advanced Photonix	9,940	-	RFQ Sell Excess Inventory	Datasheet	-	Radial, 5mm Dia (T 1 3/4)	Bulk	Active	660nm	Blue	PIN	-	50ns	400nm ~ 1100nm	100 V	5nA	4.12mm²	40°	-40°C ~ 80°C	-	Through Hole	-

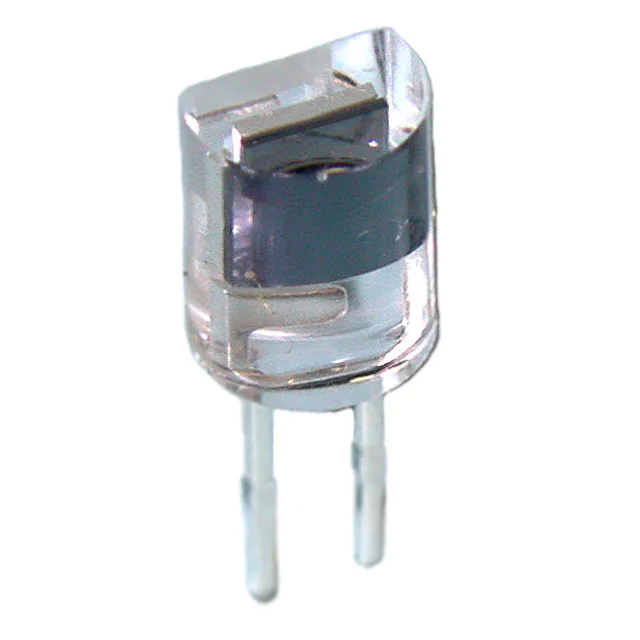

PDB-C158 SENSOR PHOTODIODE 660NM RADIAL Advanced Photonix	817	-	RFQ Sell Excess Inventory	Datasheet	-	Radial	Bulk	Active	660nm	Blue	PIN	-	50ns	400nm ~ 1100nm	50 V	2nA	9mm²	120°	-40°C ~ 80°C	-	Through Hole	-
NJL6195R-TE1 SENSOR PHOTODIODE 890NM 2SMD Nisshinbo Micro Devices Inc.	3,191	-	RFQ Sell Excess Inventory	Datasheet	-	2-SMD, No Lead	Tape & Reel (TR)	Active	890nm	-	-	0.55 A/W @ 850nm	25ns, 42ns	-	35 V	1nA	2.98mm²	-	-30°C ~ 85°C	-	Surface Mount	-

Total 1295 Record«Prev 1... 6 7 8 91011 12 13...65 Next»
