| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Base Resonator | Type | Function | Output | Voltage - Supply | Frequency | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Size / Dimension | Ratings | Supplier Device Package | Mounting Style | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-2012MV-327KE-TRXTAL OSC XO 32.7680KHZ CMOS SMD |
7,910 |
|
Datasheet |
ECS-2012MV-327KE MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 32.768 kHz | -150ppm, +10ppm | - | -40°C ~ 85°C | - | 0.8µA | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | - | Surface Mount | 0.033" (0.85mm) |
|
|
XLL726238.000000IXTAL OSC XO 238.0000MHZ LVDS SMD |
995 |
|
Datasheet |
XLL | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVDS | 2.5V | 238 MHz | ±25ppm | - | -40°C ~ 85°C | - | 65mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.057" (1.45mm) |
|
|
LFSPXO071190XTAL OSC XO 10.0000MHZ CMOS SMD |
646 |
|
Datasheet |
IQXO-540 AUTO | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 10 MHz | ±100ppm | - | -40°C ~ 125°C | - | 6mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | - | Surface Mount | 0.031" (0.80mm) |
|
ECS-3225SMV-120-FP-TRXTAL OSC XO 12MHZ HCMOS SMD |
7,316 |
|
Datasheet |
ECS-3225SMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 1.62V ~ 3.63V | 12 MHz | ±10ppm | - | -40°C ~ 105°C | - | 10mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.047" (1.20mm) |
|
|
ECS-3225SMV-240-FP-TRXTAL OSC XO 24.0000MHZ HCMOS SMD |
2,940 |
|
Datasheet |
ECS-3225SMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 1.62V ~ 3.63V | 24 MHz | ±10ppm | - | -40°C ~ 105°C | - | 10mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.047" (1.20mm) |
 Series.jpg)
|
ACO-50.000MHZ-EKXTAL OSC XO 50.0000MHZ HCMOS TTL |
245 |
|
Datasheet |
ACO | 14-DIP, 4 Leads (Full Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 5V | 50 MHz | ±30ppm | - | -20°C ~ 70°C | - | 70mA | 0.795" L x 0.496" W (20.20mm x 12.60mm) | - | 4-VDFN (3.2x2.5) | Through Hole | 0.200" (5.08mm) |
|

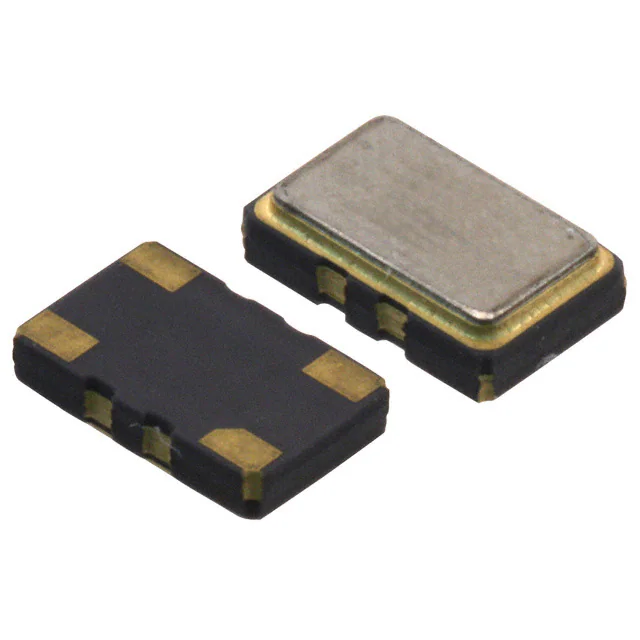

FT5CNDPK12.8-T1XTAL OSC TCXO 12.8000MHZ SNWV |
7,970 |
|
Datasheet |
FOX914 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | Clipped Sine Wave | 3V | 12.8 MHz | ±2.5ppm | - | -30°C ~ 85°C | - | 2mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | - | Surface Mount | 0.059" (1.50mm) |
|
ASEM1-27.000MHZ-LC-TMEMS OSC XO 27.0000MHZ CMOS SMD |
4,696 |
|
Datasheet |
ASEM, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 3.3V | 27 MHz | ±50ppm | - | -40°C ~ 85°C | - | 15mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
ECS-TXO-5032-122.8-TRXTAL OSC TCXO 12.2880MHZ HCMOS |
4,548 |
|
Datasheet |
ECS-TXO-5032 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | HCMOS | 3.3V | 12.288 MHz | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.059" (1.50mm) |
 Series.jpg)
|
ACHL-4.000MHZ-EKXTAL OSC XO 4.0000MHZ HCMOS TTL |
3,713 |
|
Datasheet |
ACHL | 8-DIP, 4 Leads (Half Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | - | HCMOS, TTL | 3.3V | 4 MHz | ±30ppm | - | -20°C ~ 70°C | - | 20mA | 0.520" L x 0.520" W (13.20mm x 13.20mm) | - | - | Through Hole | 0.217" (5.50mm) |
|
|
ECS-TXO-5032-200-TRXTAL OSC TCXO 20.0000MHZ HCMOS |
3,138 |
|
Datasheet |
ECS-TXO-5032 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | HCMOS | 3.3V | 20 MHz | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.059" (1.50mm) |
 Series.jpg)
|
ACH-48.000MHZ-EKXTAL OSC XO 48.0000MHZ HCMOS TTL |
2,295 |
|
Datasheet |
ACH | 8-DIP, 4 Leads (Half Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | - | HCMOS, TTL | 5V | 48 MHz | ±30ppm | - | -20°C ~ 70°C | - | 45mA | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | - | Through Hole | 0.220" (5.60mm) |
|
|
ECS-TXO-5032-100-TRXTAL OSC TCXO 10.0000MHZ HCMOS |
2,140 |
|
Datasheet |
ECS-TXO-5032 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | HCMOS | 3.3V | 10 MHz | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.059" (1.50mm) |
|
ECS-TXO-3225-200-TRXTAL OSC TCXO 20.0000MHZ HCMOS |
2,125 |
|
Datasheet |
ECS-TXO-3225 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | HCMOS | 3.3V | 20 MHz | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.039" (1.00mm) |
|
|
ECS-TXO-5032-120-TRXTAL OSC TCXO 12.0000MHZ HCMOS |
1,918 |
|
Datasheet |
ECS-TXO-5032 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | HCMOS | 3.3V | 12 MHz | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.059" (1.50mm) |
|
|
ASEM1-18.432MHZ-LC-TMEMS OSC XO 18.4320MHZ CMOS SMD |
1,187 |
|
Datasheet |
ASEM, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 3.3V | 18.432 MHz | ±50ppm | - | -40°C ~ 85°C | - | 15mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
|
ACHL-27.000MHZ-EKXTAL OSC XO 27.0000MHZ HCMOS TTL |
996 |
|
Datasheet |
ACHL | 8-DIP, 4 Leads (Half Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | - | HCMOS, TTL | 3.3V | 27 MHz | ±30ppm | - | -20°C ~ 70°C | - | 40mA | 0.520" L x 0.520" W (13.20mm x 13.20mm) | - | - | Through Hole | 0.217" (5.50mm) |
|
|
ASEM1-30.000MHZ-LC-TMEMS OSC XO 30.0000MHZ CMOS SMD |
950 |
|
Datasheet |
ASEM, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 3.3V | 30 MHz | ±50ppm | - | -40°C ~ 85°C | - | 15mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
|
ECS-TXO-5032-160-TRXTAL OSC TCXO 16.0000MHZ HCMOS |
900 |
|
Datasheet |
ECS-TXO-5032 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | HCMOS | 3.3V | 16 MHz | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.059" (1.50mm) |
|
|
ACH-24.576MHZ-EKXTAL OSC XO 24.5760MHZ HCMOS TTL |
773 |
|
Datasheet |
ACH | 8-DIP, 4 Leads (Half Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | - | HCMOS, TTL | 5V | 24.576 MHz | ±30ppm | - | -20°C ~ 70°C | - | 45mA | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | 4-VDFN (3.2x2.5) | Through Hole | 0.220" (5.60mm) |
