| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Base Resonator | Type | Function | Output | Voltage - Supply | Frequency | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Size / Dimension | Ratings | Supplier Device Package | Mounting Style | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-3525-240-B-TRXTAL OSC XO 24.0000MHZ HCMOS SMD |
4,132 |
|
Datasheet |
ECS-3525 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 2.5V | 24 MHz | ±50ppm | - | 0°C ~ 70°C | - | 8mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
|
ECS-3525-400-B-TRXTAL OSC XO 40.0000MHZ HCMOS SMD |
923 |
|
Datasheet |
ECS-3525 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 2.5V | 40 MHz | ±50ppm | - | 0°C ~ 70°C | - | 20mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
ECS-3518-240-B-TRXTAL OSC XO 24.0000MHZ HCMOS SMD |
784 |
|
Datasheet |
ECS-3518 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 1.8V | 24 MHz | ±50ppm | - | 0°C ~ 70°C | - | 7mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
|
ECS-3525-480-B-TRXTAL OSC XO 48.0000MHZ HCMOS SMD |
512 |
|
Datasheet |
ECS-3525 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 2.5V | 48 MHz | ±50ppm | - | 0°C ~ 70°C | - | 20mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
FT3HNBPK25.0-T1OSC TCXO 25MHZ 3.3V HCMOS |
8,594 |
|
Datasheet |
T3HN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | HCMOS | 3.3V | 25 MHz | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.039" (1.00mm) |
|
MC2016K27.0000C16ESHXTAL OSC XO 27.0000MHZ CMOS SMD |
4,729 |
|
Datasheet |
MC2016K | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 1.6V ~ 3.63V | 27 MHz | ±50ppm | - | -40°C ~ 105°C | - | 5mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | AEC-Q100, AEC-Q200 | - | Surface Mount | 0.031" (0.80mm) |
|
EC2645ETTS-33.333M TROSC XO 33MHZ 3.3V CMOS SMD |
3,928 |
|
Datasheet |
EC26 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 33.333 MHz | ±50ppm | - | -40°C ~ 85°C | - | 18mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.071" (1.80mm) |
|
|
MC2016K42.0000C16ESHXTAL OSC XO 42.0000MHZ CMOS SMD |
1,860 |
|
Datasheet |
MC2016K | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 1.6V ~ 3.63V | 42 MHz | ±50ppm | - | -40°C ~ 105°C | - | 6mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | AEC-Q100, AEC-Q200 | - | Surface Mount | 0.031" (0.80mm) |
|
K50-HC0CSE49.1520MRXTAL OSC XO 49.1520MHZ CMOS SMD |
252 |
|
Datasheet |
K50-HC, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 5V | 49.152 MHz | ±50ppm | - | -10°C ~ 70°C | - | 50mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.063" (1.60mm) |
|
ECS-100AX-061XTAL OSC XO 6.1440MHZ TTL TH |
906 |
|
Datasheet |
ECS-100X | 14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | Active | Crystal | XO (Standard) | - | TTL | 5V | 6.144 MHz | ±100ppm | - | 0°C ~ 70°C | - | 15mA | 0.821" L x 0.520" W (20.86mm x 13.20mm) | - | 4-VDFN (3.2x2.5) | Through Hole | 0.200" (5.08mm) |
|
|
ECS-100AX-143XTAL OSC XO 14.31818MHZ TTL TH |
631 |
|
Datasheet |
ECS-100X | 14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | Active | Crystal | XO (Standard) | - | TTL | 5V | 14.31818 MHz | ±100ppm | - | 0°C ~ 70°C | - | 30mA | 0.821" L x 0.520" W (20.86mm x 13.20mm) | - | 4-VDFN (3.2x2.5) | Through Hole | 0.200" (5.08mm) |
|
FO7HHAAE32.0-T1OSC XO 32MHZ 5V HCMOS |
2,991 |
|
Datasheet |
O7HH | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 5V | 32 MHz | ±100ppm | - | -10°C ~ 70°C | - | 40mA | 0.295" L x 0.205" W (7.50mm x 5.20mm) | - | - | Surface Mount | 0.059" (1.50mm) |
|
|
FO7HHAAE16.0-T1OSC XO 16MHZ 5V HCMOS |
1,882 |
|
Datasheet |
F3345 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 5V | 16 MHz | ±100ppm | - | -10°C ~ 70°C | - | 25mA | 0.295" L x 0.205" W (7.50mm x 5.20mm) | - | - | Surface Mount | 0.059" (1.50mm) |
|
TXETDDSANF-19.200000XTAL OSC TCXO 19.2000MHZ SNWV |
1,410 |
|
Datasheet |
TX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | Clipped Sine Wave | 2.8V ~ 3.3V | 19.2 MHz | ±2.5ppm | - | -30°C ~ 85°C | - | 2mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.039" (1.00mm) |
~~6.jpg)
|
NJU6385KG1-TE3XTAL OSC XO 50.0000MHZ CMOS SMD |
2,875 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Standby (Power Down) | CMOS | 3.3V | 50 MHz | ±1ppm | - | -40°C ~ 125°C | - | 9.9mA | 0.063" L x 0.063" W (1.60mm x 1.60mm) | - | DFN6-G1(ESON6-G1) | Surface Mount | 0.018" (0.45mm) |
|
XAH335030.000000KXTAL OSC XO 30.0000MHZ LVCMOS |
525 |
|
Datasheet |
XAH | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVCMOS | 3.3V | 30 MHz | ±50ppm | - | -40°C ~ 105°C | - | 35mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | AEC-Q200 | 4-VDFN (3.2x2.5) | Surface Mount | 0.039" (1.00mm) |
|
ECS-2100A-300XTAL OSC XO 30.0000MHZ HCMOS TTL |
268 |
|
Datasheet |
ECS-2100 | 8-DIP, 4 Leads (Half Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | - | HCMOS, TTL | 5V | 30 MHz | ±100ppm | - | 0°C ~ 70°C | - | 46mA | 0.520" L x 0.520" W (13.20mm x 13.20mm) | - | 4-VDFN (3.2x2.5) | Through Hole | 0.213" (5.40mm) |
|

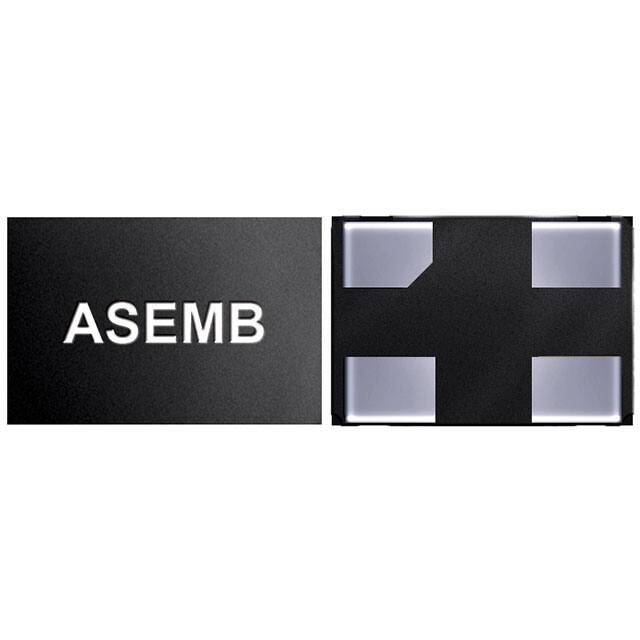

ASEMB-40.000MHZ-LY-TMEMS OSC XO 40.000MHZ CMOS SMD |
975 |
|
Datasheet |
ASEMB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | 40 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.035" (0.90mm) |
|
ASDM1-7.3728MHZ-LC-TMEMS OSC XO 7.3728MHZ LVCMOS SMD |
1,000 |
|
Datasheet |
ASDM, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 3.3V | 7.3728 MHz | ±50ppm | - | -40°C ~ 85°C | - | 15mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
|
ASDM1-33.000MHZ-LC-TMEMS OSC XO 33.0000MHZ LVCMOS |
853 |
|
Datasheet |
ASDM, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 3.3V | 33 MHz | ±50ppm | - | -40°C ~ 85°C | - | 15mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
