| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Base Resonator | Type | Function | Output | Voltage - Supply | Frequency | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Size / Dimension | Ratings | Supplier Device Package | Mounting Style | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XLH320033.333000IXTAL OSC XO 33.3330MHZ HCMOS SMD |
2,000 |
|
Datasheet |
XL | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 2.5V | 33.333 MHz | ±100ppm | - | -40°C ~ 85°C | - | 25mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.039" (1.00mm) |
|
S133025T-24.000-X-RXTAL OSC XO 24.0000MHZ HCMOS SMD |
1,996 |
|
Datasheet |
S1 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 24 MHz | ±25ppm | - | -40°C ~ 85°C | - | 7mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | - | Surface Mount | 0.031" (0.80mm) |
|
|
SXO75C3C271-50.000MXTAL OSC XO 50.0000MHZ CMOS SMD |
1,955 |
|
Datasheet |
SXO75C | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 50 MHz | ±25ppm | - | -20°C ~ 70°C | - | 25mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|
|
SXO75C3C271-20.000MXTAL OSC XO 20.0000MHZ CMOS SMD |
1,610 |
|
Datasheet |
SXO75C | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 20 MHz | ±25ppm | - | -20°C ~ 70°C | - | 16mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|
|
SXO75C3C271-16.000MXTAL OSC XO 16.0000MHZ CMOS SMD |
1,330 |
|
Datasheet |
SXO75C | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 16 MHz | ±25ppm | - | -20°C ~ 70°C | - | 16mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|
|
SXO75C3C271-27.000MXTAL OSC XO 27.0000MHZ CMOS SMD |
1,005 |
|
Datasheet |
SXO75C | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 27 MHz | ±25ppm | - | -20°C ~ 70°C | - | 16mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|
XLH536050.000000XXTAL OSC XO 50.0000MHZ HCMOS SMD |
1,000 |
|
Datasheet |
XPRESSO™ FXO-HC53 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 50 MHz | ±25ppm | - | -20°C ~ 70°C | - | 35mA | 0.203" L x 0.132" W (5.15mm x 3.35mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.055" (1.40mm) |
-2.50-mm-x-2.00-mm.jpg)
|
DSC1001DI2-096.0000MEMS OSC XO 96.0000MHZ CMOS SMD |
850 |
|
Datasheet |
DSC1001 | 4-VDFN | Tube | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | 96 MHz | ±25ppm | - | -40°C ~ 85°C | - | 10.5mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | AEC-Q100 | 4-CDFN (2.5x2) | Surface Mount | 0.035" (0.90mm) |
|
|
S118025T-24.000-X-RXTAL OSC XO 24.0000MHZ HCMOS SMD |
832 |
|
Datasheet |
S1 | 4-SMD, No Lead | Cut Tape (CT) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 1.8V | 24 MHz | ±25ppm | - | -40°C ~ 85°C | - | 5mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | - | Surface Mount | 0.031" (0.80mm) |
|
|
SXO75C3C271-10.000MXTAL OSC XO 10.0000MHZ CMOS SMD |
619 |
|
Datasheet |
SXO75C | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 10 MHz | ±25ppm | - | -20°C ~ 70°C | - | 16mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|

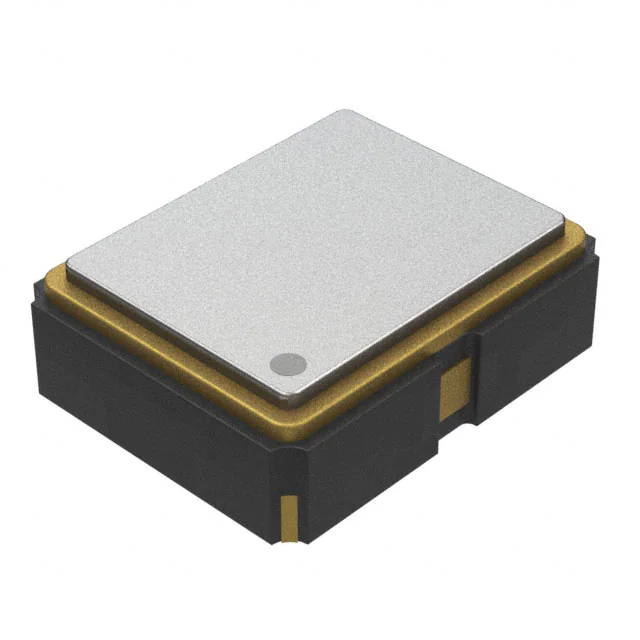

CA25C1204GLTXTAL OSC XO 12.0000MHZ HCMOS TTL |
550 |
|
Datasheet |
CA25 | 4-SMD, No Lead | Tape & Reel (TR) | Discontinued | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 3.3V | 12 MHz | ±30ppm | - | -40°C ~ 105°C | - | 20mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | AEC-Q200 | - | Surface Mount | 0.039" (1.00mm) |
|
|
SXO75C3C271-25.000MXTAL OSC XO 25.0000MHZ CMOS SMD |
364 |
|
Datasheet |
SXO75C | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 25 MHz | ±25ppm | - | -20°C ~ 70°C | - | 16mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|
|
12.90338CRYSTAL OSCILLATOR, 4 SMD |
300 |
|
Datasheet |
- | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XLH536106.250000IXTAL OSC XO 106.2500MHZ HCMOS |
1,000 |
|
Datasheet |
XPRESSO™ FXO-HC53 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 106.25 MHz | ±25ppm | - | -40°C ~ 85°C | - | 47mA | 0.203" L x 0.132" W (5.15mm x 3.35mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.055" (1.40mm) |
|
RA12M00000L100XTAL OSC XO 12.0000MHZ HCMOS TH |
600,000 |
|
Datasheet |
CO14 | 14-DIP, 4 Leads (Full Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 5V | 12 MHz | ±50ppm | - | -40°C ~ 85°C | - | 20mA | 0.821" L x 0.520" W (20.86mm x 13.20mm) | - | 4-VDFN (3.2x2.5) | Through Hole | 0.200" (5.08mm) |
|
|
CA25C4004GLTXTAL OSC XO 40.0000MHZ HCMOS TTL |
2,029 |
|
Datasheet |
CA25 | 4-SMD, No Lead | Tape & Reel (TR) | Discontinued | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 3.3V | 40 MHz | ±30ppm | - | -40°C ~ 105°C | - | 20mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | AEC-Q200 | - | Surface Mount | 0.039" (1.00mm) |
-7.00-mm-x-5.00-mm.jpg)
|
DSC1001AL2-016.0000MEMS OSC XO 16.0000MHZ CMOS SMD |
668 |
|
Datasheet |
DSC1001 | 4-VDFN Exposed Pad | Tube | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | 16 MHz | ±25ppm | - | -40°C ~ 105°C | - | 6.5mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | AEC-Q100 | 4-DFN (7x5) | Surface Mount | 0.035" (0.90mm) |
-3.20-mm-x-2.50-mm.jpg)
|
DSC1121CI2-125.0000MEMS OSC XO 125.0000MHZ CMOS SMD |
647 |
|
Datasheet |
DSC1121 | 6-VDFN | Tube | Active | MEMS | XO (Standard) | Enable/Disable | CMOS | 2.25V ~ 3.6V | 125 MHz | ±25ppm | - | -40°C ~ 85°C | - | 35mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | AEC-Q100 | 6-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
ECS-8FM-160-TRXTAL OSC XO 16.0000MHZ CMOS TTL |
516 |
|
Datasheet |
ECS-8F | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 16 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
|
ECS-8FM-098.3-TRXTAL OSC XO 9.8304MHZ CMOS TTL |
163 |
|
Datasheet |
ECS-8F | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 9.8304 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
