| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Base Resonator | Type | Function | Output | Voltage - Supply | Frequency | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Size / Dimension | Ratings | Supplier Device Package | Mounting Style | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S533025T-100.000-RXTAL OSC XO 100.0000MHZ HCMOS |
1,000 |
|
Datasheet |
S5 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 100 MHz | ±25ppm | - | -20°C ~ 70°C | - | 40mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
|
S53305T-156.200-RXTAL OSC XO 156.2500MHZ HCMOS |
1,000 |
|
Datasheet |
S5 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 156.25 MHz | ±50ppm | - | -20°C ~ 70°C | - | 40mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
S7A2505-160.000-P-X-RXTAL OSC XO 160.0000MHZ LVPECL |
1,000 |
|
Datasheet |
S7A LVPECL | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVPECL | 2.5V | 160 MHz | ±50ppm | - | -40°C ~ 85°C | - | 70mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.055" (1.40mm) |
|
|
S533025T-125.000-RXTAL OSC XO 125.0000MHZ HCMOS |
1,000 |
|
Datasheet |
S5 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 125 MHz | ±25ppm | - | -20°C ~ 70°C | - | 40mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
|
S533025T-156.200-RXTAL OSC XO 156.2500MHZ HCMOS |
1,000 |
|
Datasheet |
S5 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 156.25 MHz | ±25ppm | - | -20°C ~ 70°C | - | 40mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
S51805T-100.000-X-RXTAL OSC XO 100.0000MHZ HCMOS |
1,000 |
|
Datasheet |
S5 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 1.8V | 100 MHz | ±50ppm | - | -40°C ~ 85°C | - | 25mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
TXO972005-STO-5101OSC TCXO 26 MHZ 1.8V~3.3V |
970 |
|
Datasheet |
TXO97 | 4-SMD, No Lead | Cut Tape (CT) | Active | Crystal | TCXO | - | Clipped Sine Wave | 1.8V ~ 3.3V | 26 MHz | ±500ppb | - | -30°C ~ 85°C | - | 1.5mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | - | Surface Mount | 0.031" (0.80mm) |
|
|
OSC863100-SCO-G947OSC XO 32.768 KHZ CMOS |
898 |
|
Datasheet |
OSC86 | 4-SMD, No Lead | Cut Tape (CT) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 1.2V ~ 5.5V | 32.768 kHz | -120ppm, +10ppm | - | -20°C ~ 70°C | - | 1.5µA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.035" (0.90mm) |
|
|
MP1254038.40MHZ GTXO-163T/ES TCXO +1.8V |
500 |
|
Datasheet |
GTXO-163T | 4-SMD, No Lead | Strip | Active | Crystal | TCXO | - | Clipped Sine Wave | 1.8V | 38.4 MHz | ±0.5ppm | - | -30°C ~ 85°C | - | 2mA | 0.065" L x 0.049" W (1.65mm x 1.25mm) | - | - | Surface Mount | 0.028" (0.70mm) |
|
CO53H4-100.000-33JDTSNKXTAL OSC XO 100.0000MHZ CMOS SMD |
39,600 |
|
Datasheet |
CO53H4 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 100 MHz | ±30ppm | - | -40°C ~ 85°C | - | 35mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.047" (1.20mm) |
|
8NE-25.000MDM-TXTAL OSC XO 25.000MHZ CMOS SMD |
10,739 |
|
Datasheet |
8NE | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | Enable/Disable | CMOS (Low EMI) | 1.8V | 25 MHz | ±50ppm | - | -40°C ~ 125°C | - | 10mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | - | Surface Mount | 0.032" (0.81mm) |
|

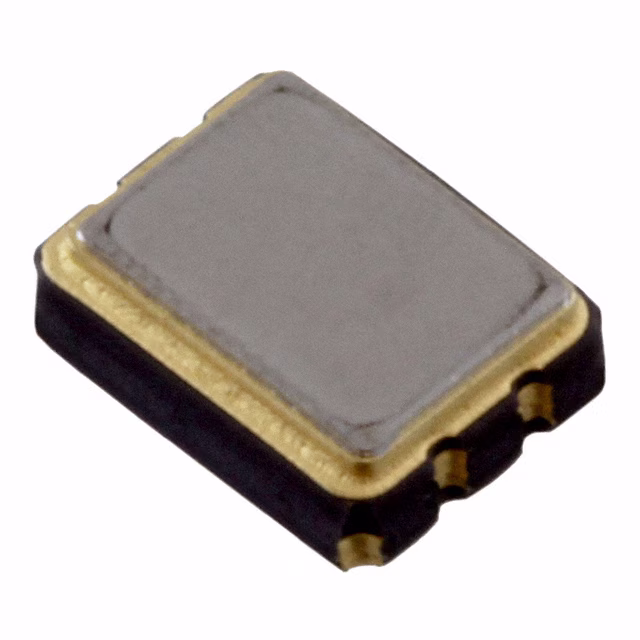

AUZ-32.768KBE-TXTAL OSC XO 32.7680KHZ CMOS SMD |
6,000 |
|
Datasheet |
AUZ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 32.768 kHz | ±50ppm | - | -40°C ~ 85°C | - | 6mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | AEC-Q100 | - | Surface Mount | 0.043" (1.10mm) |
|
CSX-750FJC44000000TXTAL OSC XO 44.0000MHZ CMOS SMD |
3,899 |
|
Datasheet |
CSX-750F | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | Standby (Power Down) | CMOS | 3.3V | 44 MHz | ±100ppm | - | -20°C ~ 70°C | - | 25mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|
|
SXO75C3B381-100.000MXTAL OSC XO 100.0000MHZ CMOS SMD |
3,772 |
|
Datasheet |
SXO75C | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 100 MHz | ±30ppm | - | -30°C ~ 75°C | - | 65mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|
QM2244LEV-25.0MXTAL OSC XO 25.0000MHZ CMOS TTL |
3,000 |
|
Datasheet |
PRONTO™ QM22L | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 3.3V | 25 MHz | ±25ppm | - | -40°C ~ 85°C | - | 35mA | 0.081" L x 0.065" W (2.05mm x 1.65mm) | - | - | Surface Mount | 0.033" (0.85mm) |
|
|
QM4444LEV-25.0MXTAL OSC XO 25.0000MHZ CMOS TTL |
2,990 |
|
Datasheet |
PRONTO™ QM44L | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 3.3V | 25 MHz | ±25ppm | - | -40°C ~ 85°C | - | 35mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.043" (1.10mm) |
|
|
QM3344LEV-24.0MXTAL OSC XO 24.0000MHZ CMOS TTL |
2,980 |
|
Datasheet |
PRONTO™ QM33L | 4-SMD, No Lead | Cut Tape (CT) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 3.3V | 24 MHz | ±25ppm | - | -40°C ~ 85°C | - | 35mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | - | Surface Mount | 0.038" (0.96mm) |
|
|
QM4444LEV-19.20MXTAL OSC XO 19.2000MHZ CMOS TTL |
2,975 |
|
Datasheet |
PRONTO™ QM44L | 4-SMD, No Lead | Cut Tape (CT) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 3.3V | 19.2 MHz | ±25ppm | - | -40°C ~ 85°C | - | 35mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.043" (1.10mm) |
|
|
8NE-24.576MBM-TXTAL OSC XO 24.576MHZ CMOS SMD |
2,928 |
|
Datasheet |
8NE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS (Low EMI) | 3.3V | 24.576 MHz | ±50ppm | - | -40°C ~ 125°C | - | 10mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | - | Surface Mount | 0.032" (0.81mm) |
-2.50-mm-x-2.00-mm.jpg)
|
DSC1101DM2-025.0000MEMS OSC XO 25.0000MHZ CMOS SMD |
2,191 |
|
Datasheet |
DSC1101 | 6-VDFN | Tube | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 2.25V ~ 3.6V | 25 MHz | ±25ppm | - | -55°C ~ 125°C | - | 35mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 6-VDFN (2.5x2) | Surface Mount | 0.035" (0.90mm) |
