Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Base Resonator | Type | Function | Output | Voltage - Supply | Frequency | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Size / Dimension | Ratings | Supplier Device Package | Mounting Style | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

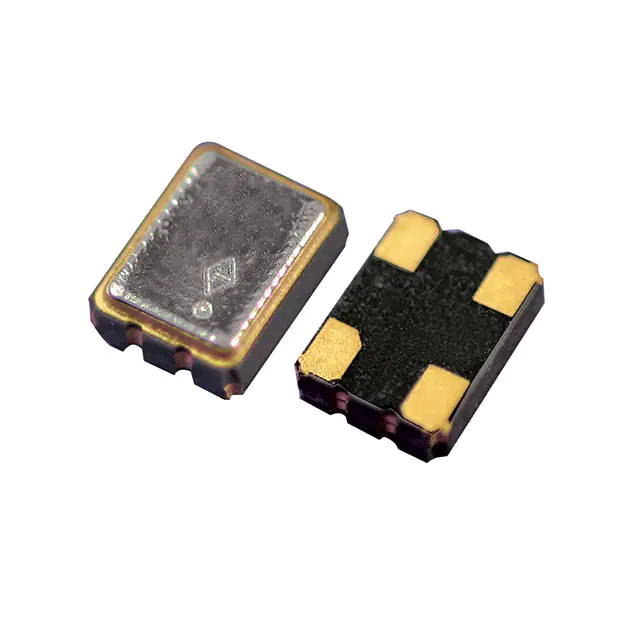

OXETDLJANF-10.000000XTAL OSC XO 10.0000MHZ CMOS SMD |
1,041 |
|
Datasheet |
OX | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 10 MHz | ±25ppm | - | -40°C ~ 85°C | - | 10mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.043" (1.10mm) |
|
ECS-3951M-200-BN-TRXTAL OSC XO 20.0000MHZ HCMOS SMD |
4,692 |
|
Datasheet |
ECS-3951M-BN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 5V | 20 MHz | ±50ppm | - | -40°C ~ 85°C | - | 20mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.067" (1.70mm) |
|
ASDDV-8.000MHZ-LC-T3OSC XO 8.000MHZ CMOS SMD |
3,643 |
|
Datasheet |
ASDDV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, LVCMOS | 1.8V ~ 3.3V | 8 MHz | ±50ppm | - | -40°C ~ 85°C | - | 2mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | - | Surface Mount | 0.037" (0.95mm) |
|
CB3LV-3I-14M745600XTAL OSC XO 14.7456MHZ HCMOS TTL |
1,665 |
|
Datasheet |
CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 3.3V | 14.7456 MHz | ±50ppm | - | -40°C ~ 85°C | - | 12mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.071" (1.80mm) |
|
632L3I033M00000XTAL OSC XO 33.0000MHZ HCMOS SMD |
10,933 |
|
Datasheet |
632 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 33 MHz | ±50ppm | - | -40°C ~ 85°C | - | 15mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.047" (1.20mm) |
|
|
CB3LV-3I-40M000000XTAL OSC XO 40.0000MHZ HCMOS TTL |
7,434 |
|
Datasheet |
CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 3.3V | 40 MHz | ±50ppm | - | -40°C ~ 85°C | - | 40mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.071" (1.80mm) |
|
ECS-1618-192-BN-TRXTAL OSC XO 19.2000MHZ CMOS SMD |
4,254 |
|
Datasheet |
ECS-1618 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 1.8V | 19.2 MHz | ±50ppm | - | -40°C ~ 85°C | - | 2.5mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
KT1612A26000ACW18TBK1.6MM X 1.2MM TCXO, 26MHZ, 1.8V, |
1,996 |
|
Datasheet |
KT1612A | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | Clipped Sine Wave | 1.8V | 26 MHz | ±500ppb | - | -30°C ~ 85°C | - | 2mA | 0.065" L x 0.049" W (1.65mm x 1.25mm) | - | - | Surface Mount | 0.022" (0.55mm) |
|
|
KT1612A48000DAW18TCK1.6MM X 1.2MM TCXO, 48MHZ, 1.8V, |
1,972 |
|
Datasheet |
KT1612A | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | Clipped Sine Wave | 1.8V | 48 MHz | ±2ppm | - | -40°C ~ 85°C | - | 2mA | 0.065" L x 0.049" W (1.65mm x 1.25mm) | - | - | Surface Mount | 0.022" (0.55mm) |
|
SIT1533AI-H4-DCC-32.768GMEMS OSC XO 32.7680KHZ LVCMOS |
1,136 |
|
Datasheet |
SiT1533 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | - | LVCMOS | 1.5V ~ 3.63V | 32.768 kHz | +100ppm | - | -40°C ~ 85°C | - | 1.4µA | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | 4-SMD (2x1.2) | Surface Mount | 0.024" (0.60mm) |
|
KK3270049XTAL OSC XO 32.7680 KHZ CMOS SMD |
22,635 |
|
Datasheet |
SaRonix-eCera™ KK | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 1.8V | 32.768 kHz | ±50ppm | - | -40°C ~ 85°C | - | 300µA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.045" (1.15mm) |
|
|
CB3LV-3I-12M000000XTAL OSC XO 12.0000MHZ HCMOS TTL |
2,927 |
|
Datasheet |
CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 3.3V | 12 MHz | ±50ppm | - | -40°C ~ 85°C | - | 12mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.071" (1.80mm) |
|
ECS-2016MV-250-BN-TRXTAL OSC XO 25.0000MHZ CMOS SMD |
2,446 |
|
Datasheet |
ECS-2016MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 1.6V ~ 3.6V | 25 MHz | ±50ppm | - | -40°C ~ 85°C | - | 7mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.033" (0.85mm) |
|
ECS-3963-240-AU-TRXTAL OSC XO 24.0000MHZ HCMOS SMD |
15,312 |
|
Datasheet |
ECS-3963 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 24 MHz | ±100ppm | - | -55°C ~ 125°C | - | 10mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.051" (1.30mm) |
|
CB3-3C-50M000000XTAL OSC XO 50.0000MHZ HCMOS TTL |
9,253 |
|
Datasheet |
CB3 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 5V | 50 MHz | ±50ppm | - | -20°C ~ 70°C | - | 50mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.071" (1.80mm) |
|
|
CB3LV-3C-33M333000XTAL OSC XO 33.3330MHZ HCMOS TTL |
6,431 |
|
Datasheet |
CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 3.3V | 33.333 MHz | ±50ppm | - | -20°C ~ 70°C | - | 40mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.071" (1.80mm) |
|
ECS-2520MVQ-1250-BN-TRXTAL OSC XO 125.0000MHZ CMOS SMD |
4,820 |
|
Datasheet |
ECS-2520MVQ MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 1.6V ~ 3.6V | 125 MHz | ±50ppm | - | -40°C ~ 85°C | - | 20mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | AEC-Q200 | - | Surface Mount | 0.035" (0.90mm) |
|
|
CB3LV-3C-60M000000XTAL OSC XO 60.0000MHZ HCMOS TTL |
2,649 |
|
Datasheet |
CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 3.3V | 60 MHz | ±50ppm | - | -20°C ~ 70°C | - | 40mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.071" (1.80mm) |
|
|
CB3LV-3C-32M000000XTAL OSC XO 32.0000MHZ HCMOS TTL |
2,459 |
|
Datasheet |
CB3LV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 3.3V | 32 MHz | ±50ppm | - | -20°C ~ 70°C | - | 40mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.071" (1.80mm) |
|
SG-210STF 33.3333ML3XTAL OSC XO 33.3333MHZ CMOS SMD |
3,272 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | 33.3333 MHz | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
