Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Base Resonator | Type | Function | Output | Voltage - Supply | Frequency | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Size / Dimension | Ratings | Supplier Device Package | Mounting Style | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-8FMX-250-TRXTAL OSC XO 25.0000MHZ CMOS TTL |
998 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 25 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
|
ECS-8FMX-320-TRXTAL OSC XO 32.0000MHZ CMOS TTL |
645 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 32 MHz | ±200ppm | - | -40°C ~ 85°C | - | 35mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
ASVMB-16.384MHZ-LY-TMEMS OSC XO 16.3840MHZ LVCMOS |
230 |
|
Datasheet |
ASVMB, Pure Silicon™ | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 16.384 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
ASDMB-8.000MHZ-LY-TMEMS OSC XO 8.0000MHZ LVCMOS SMD |
3,331 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 8 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
|
ASDMB-50.000MHZ-LY-TMEMS OSC XO 50.0000MHZ LVCMOS |
3,164 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 50 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
|
ASDMB-33.333MHZ-LY-TMEMS OSC XO 33.3330MHZ LVCMOS |
2,075 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 33.333 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
TG2016SMN 38.4000M-MCGNNM3XTAL OSC TCXO 38.4000MHZ CSWV |
1,511 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | Clipped Sine Wave | 2.8V ~ 3.3V | 38.4 MHz | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.029" (0.73mm) |
|
|
TG2016SMN 25.0000M-ECGNNM3XTAL OSC TCXO 25.0000MHZ CSWV |
774 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | Clipped Sine Wave | 1.8V | 25 MHz | ±500ppb | - | -40°C ~ 85°C | - | 1.5mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.029" (0.73mm) |
|
|
TG2016SMN 38.4000M-ECGNNM3XTAL OSC TCXO 38.4000MHZ CSWV |
617 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | Clipped Sine Wave | 1.8V | 38.4 MHz | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.029" (0.73mm) |
|
ECS-2532HS-250-3-GXTAL OSC XO 25.0000MHZ CMOS SMD |
12,049 |
|
Datasheet |
ECS-2532HS | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 25 MHz | ±10ppm | - | -40°C ~ 85°C | - | 10mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.043" (1.10mm) |
|
SIT5001AI-2E-33N0-24.000000XMEMS OSC TCXO 24.0000MHZ LVCMOS |
13,678 |
|
Datasheet |
SiT5001 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | TCXO | - | LVCMOS | 3.3V | 24 MHz | ±5ppm | - | -40°C ~ 85°C | - | 33mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-SMD (3.2x2.5) | Surface Mount | 0.031" (0.80mm) |
|
510FBA200M000BAGRXTAL OSC XO 200.0000MHZ LVDS SMD |
2,296 |
|
Datasheet |
Si510 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVDS | 2.5V | 200 MHz | ±25ppm | - | -40°C ~ 85°C | - | 23mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.050" (1.28mm) |
|
SIT1566AC-JV-XXE-32.768EMEMS OSC TCXO 32.768KHZ CSP |
290 |
|
Datasheet |
SiT1566 | 4-UFBGA, CSPBGA | Tape & Reel (TR) | Active | MEMS | TCXO | - | LVCMOS | 1.8V ~ 3.3V | 32.768 kHz | ±3ppm | - | -20°C ~ 70°C | - | 5.3µA | 0.059" L x 0.031" W (1.50mm x 0.80mm) | - | 4-CSP (1.54x.84) | Surface Mount | 0.024" (0.60mm) |
|
ASEMB-80.000MHZ-LY-TMEMS OSC XO 80.0000MHZ CMOS SMD |
996 |
|
Datasheet |
ASEMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | 80 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
|
ASDMB-24.000MHZ-XY-TMEMS OSC XO 24.0000MHZ LVCMOS |
11,469 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 24 MHz | ±10ppm | - | -40°C ~ 105°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|

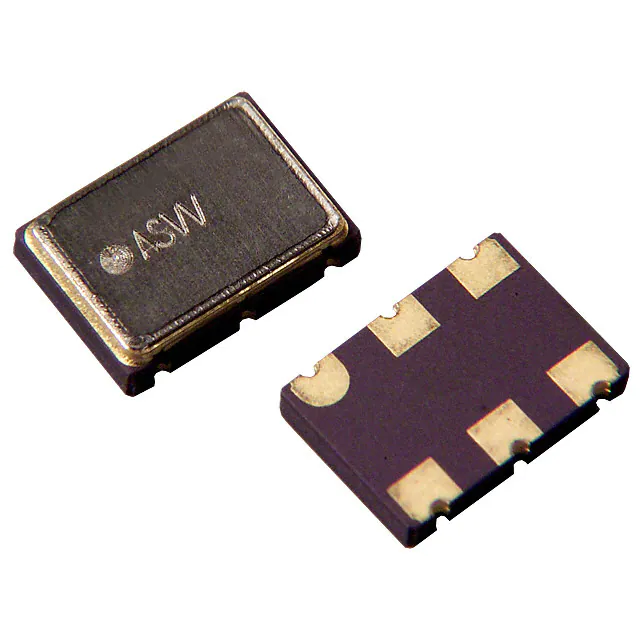

ASVV-27.000MHZ-N152-TXTAL OSC VCXO 27.0000MHZ CMOS |
2,970 |
|
Datasheet |
ASVV | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | VCXO | Standby (Power Down) | CMOS, TTL | 3.3V | 27 MHz | ±50ppm | - | 0°C ~ 70°C | - | 30mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.079" (2.00mm) |
|
|
ASDMB-12.000MHZ-XY-TMEMS OSC XO 12.0000MHZ LVCMOS |
1,956 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 12 MHz | ±10ppm | - | -40°C ~ 105°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
ASTX-H12-12.000MHZ-TXTAL OSC TCXO 12.0000MHZ HCMOS |
1,787 |
|
Datasheet |
ASTX-H12 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | Enable/Disable | HCMOS | 3.3V | 12 MHz | ±2.5ppm | - | -30°C ~ 75°C | - | 4.8mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.037" (0.95mm) |
|
ASTX-H11-20.000MHZ-TXTAL OSC TCXO 20.0000MHZ HCMOS |
1,157 |
|
Datasheet |
ASTX-H11 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | Enable/Disable | HCMOS | 3.3V | 20 MHz | ±2.5ppm | - | -30°C ~ 75°C | - | 4.8mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.043" (1.10mm) |
|
|
ASTX-H11-16.000MHZ-TXTAL OSC TCXO 16.0000MHZ HCMOS |
941 |
|
Datasheet |
ASTX-H11 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | Enable/Disable | HCMOS | 3.3V | 16 MHz | ±2.5ppm | - | -30°C ~ 75°C | - | 4.8mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.043" (1.10mm) |
